Fractal Design ION Gold 850W ATX
НазадFractal Design ION Gold 850W ATXFractal Design ION Gold 850W ATXFractal Design ION Gold 850W ATXFractal Design ION Gold 850W ATXНапред

Захранване Fractal Design Ion Gold, 850W, Active PFC, 80 Plus Gold, 140mm вентилатор

id 221120 Код: PWRPCFRACTALDESIGNFDPIA2G850EU
278.99 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

Fractal Design Ion Gold

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

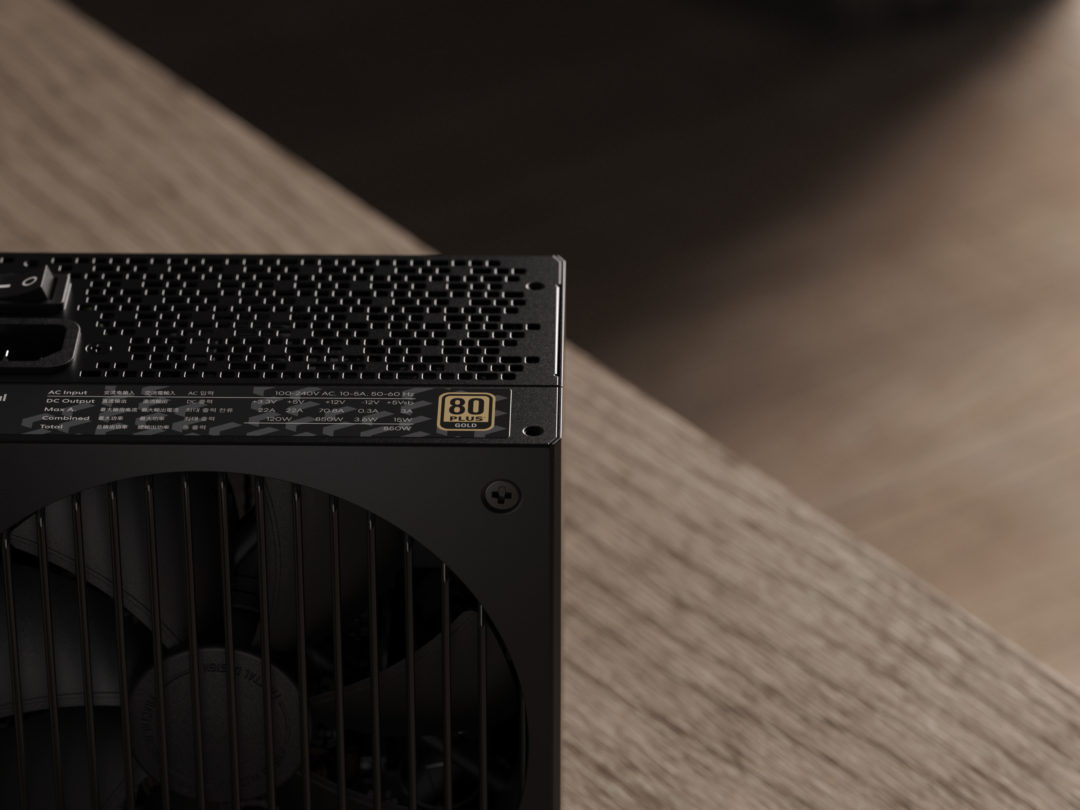

80 PLUS® Gold certified

High-efficiency performance wastes less energy and reduces heat generation

More precise electrical output and full compatibility with modern components through DC-DC design

Quality components consistently deliver tight voltage regulation with low ripple and noise

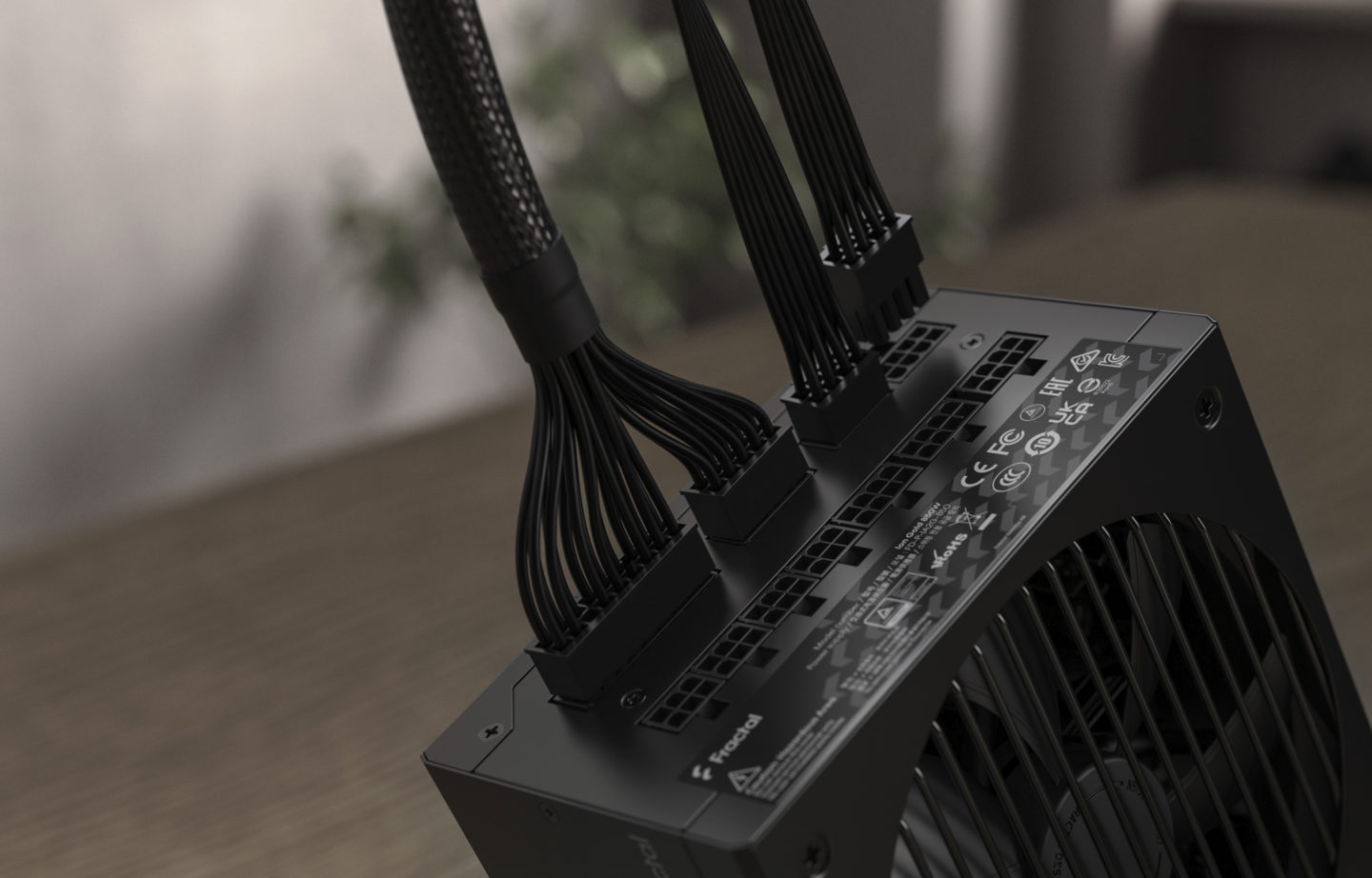

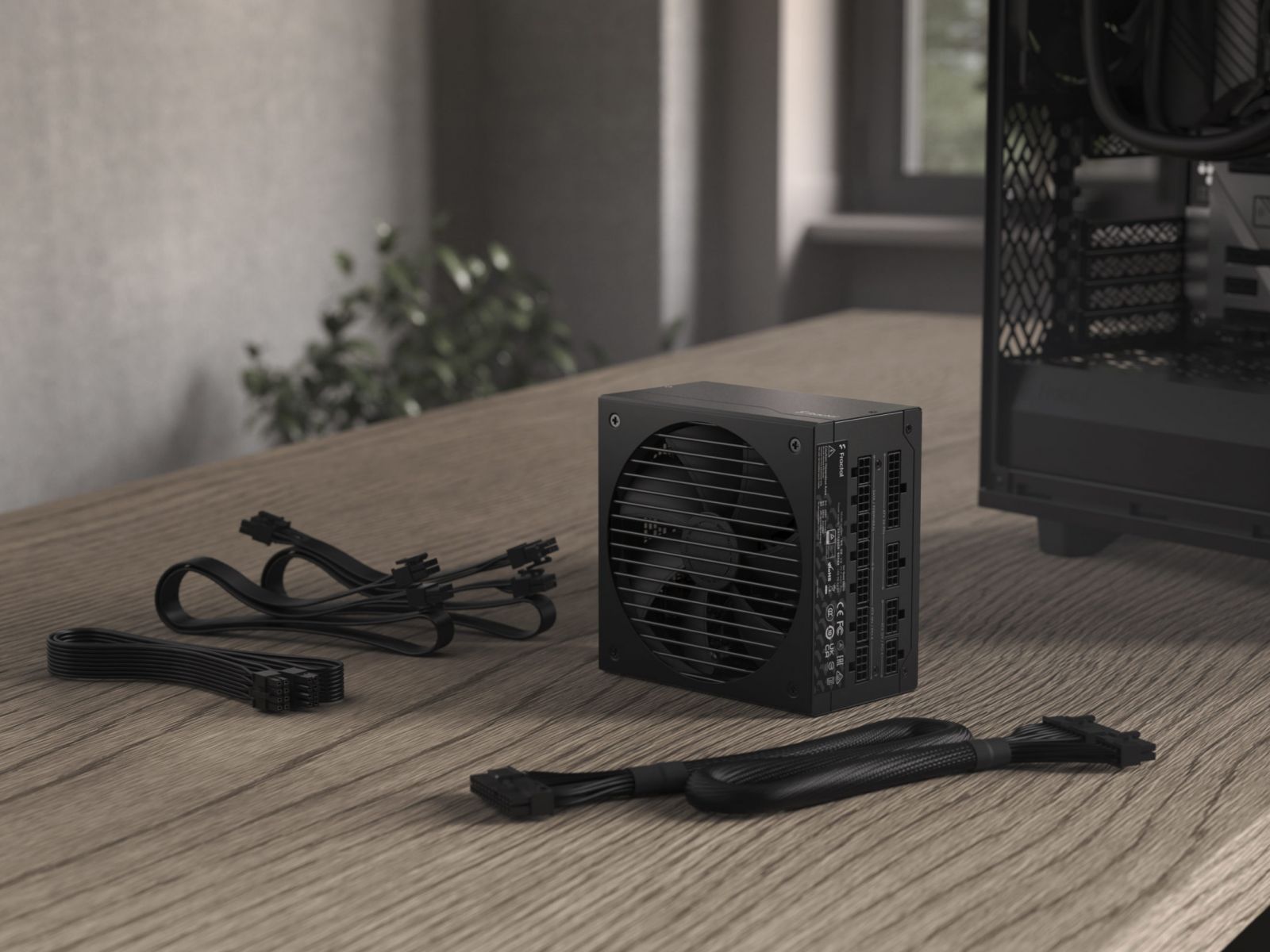

Fully modular design

Reduced clutter results in a clean and simple installation

Compact 150 mm depth allows for installation in compact cases

Provides additional cable management room in larger cases



Specifications

  • 80PLUS® certification
    Gold
  • Modular cables
    Fully modular
  • Fan type
    140 mm LLS bearing Fractal Design Dynamic series fan
  • Maximum operating temperature (full load)
    40°C, 50°C at 80% load
  • Capacitors
    Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
  • Life expectancy
    100,000 hours
  • PSU specification compliance
    ATX12V 2.52; EPS12V 2.92
  • PSU color
    Black
  • Cable type
    Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
  • Input voltage
    100-240V AC
  • Input frequency
    50-60 Hz
  • Input current
    10A/5A
  • Protection features
    Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
  • Standby efficiency
    ErP 2013 (<0.45W @ 230 VAC, 45mA load on +5Vsb)
  • Sleep state compliance
    C6/C7 compatible
  • Approvals & certifications
    CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE

Connectors

  • ATX 24-pin
    1
  • EPS/ATX12V
    2
  • PCIe
    6
  • SATA
    8
  • Peripheral
    3

Cable Configuration (length in mm between connectors)

  • ATX 24-pin
    500
  • ATX 12V 4+4 pin
    600
  • EPS12V 8-pin
    600
  • PCIe 6+2 pin
    550+150
  • SATA
    500+150+150+150
  • Peripheral
    500+150+150

DC Output

  • 3.3V
    22A
  • 5V
    22A
  • 3.3V and 5V combined
    120W
  • 12V
    70.8A
  • -12V
    0.3A
  • +5Vsb
    3A
  • Total Power
    850W


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри Fractal Design
    Виж всички Захранвания Настолни компютри в категорията
    Технически характеристики
    Изходна мощност:  850 W
    Модулен блок:  Да
    Форм фактор:  ATX
