Кутия Fractal Design Define R6 USB-C Blackout - TG, mATX, ATX, ITX, EATX, USB 3.1 Gen 2 Type-C, черна, без захранване

Fractal Design Define R6 USB-C Blackout

Ревю на продукта

Designed from the ground up

Seamless tempered glass and sound dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support and storage flexibility. Six 3.5”/2.5” drives and two 2.5” drives can be installed with precision placement in countless configurations throughout the case.

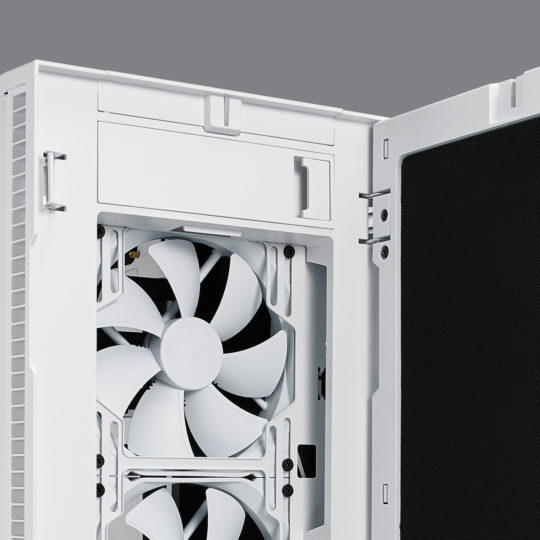

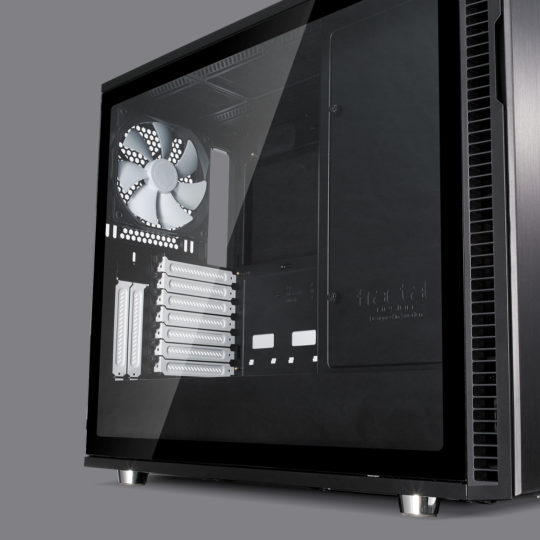

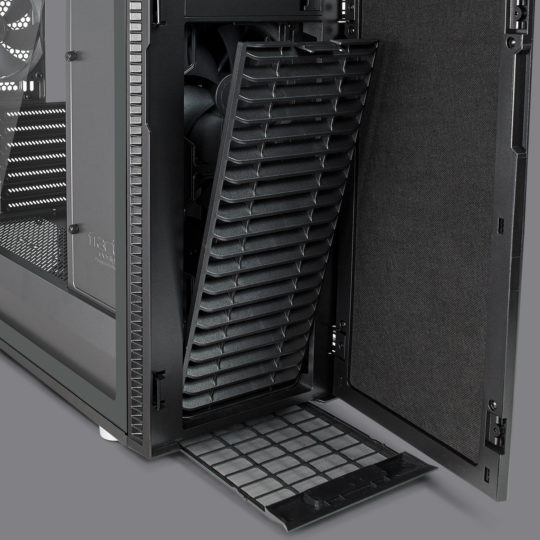

Full-Size tempered glass Show off your build through a full-size side panel of tempered, scratch-resistant glass	Reversible front door Reversible front door with anodized aluminum cover and dual-handed mounting system for adaptability with elegance	Easy-to-clean-filters Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience

Excellent airflow and cooling support

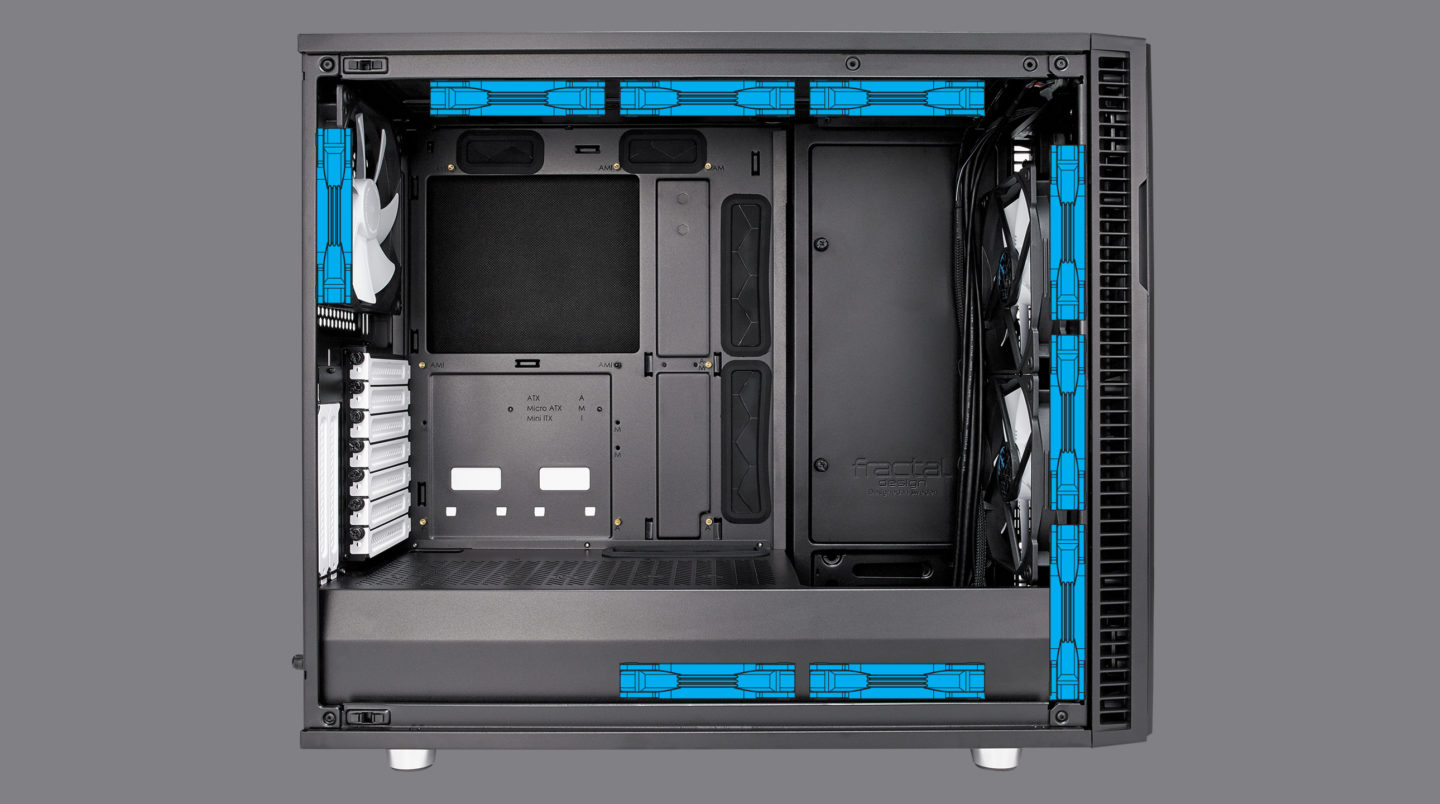

Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity.

• Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed, ensuring optimal airflow via two intake fans and a single exhaust
• Nexus+ Smart Hub offers superior fan control of six additional case fans and three PWM devices via your motherboard

Unprecedented support and flexibility

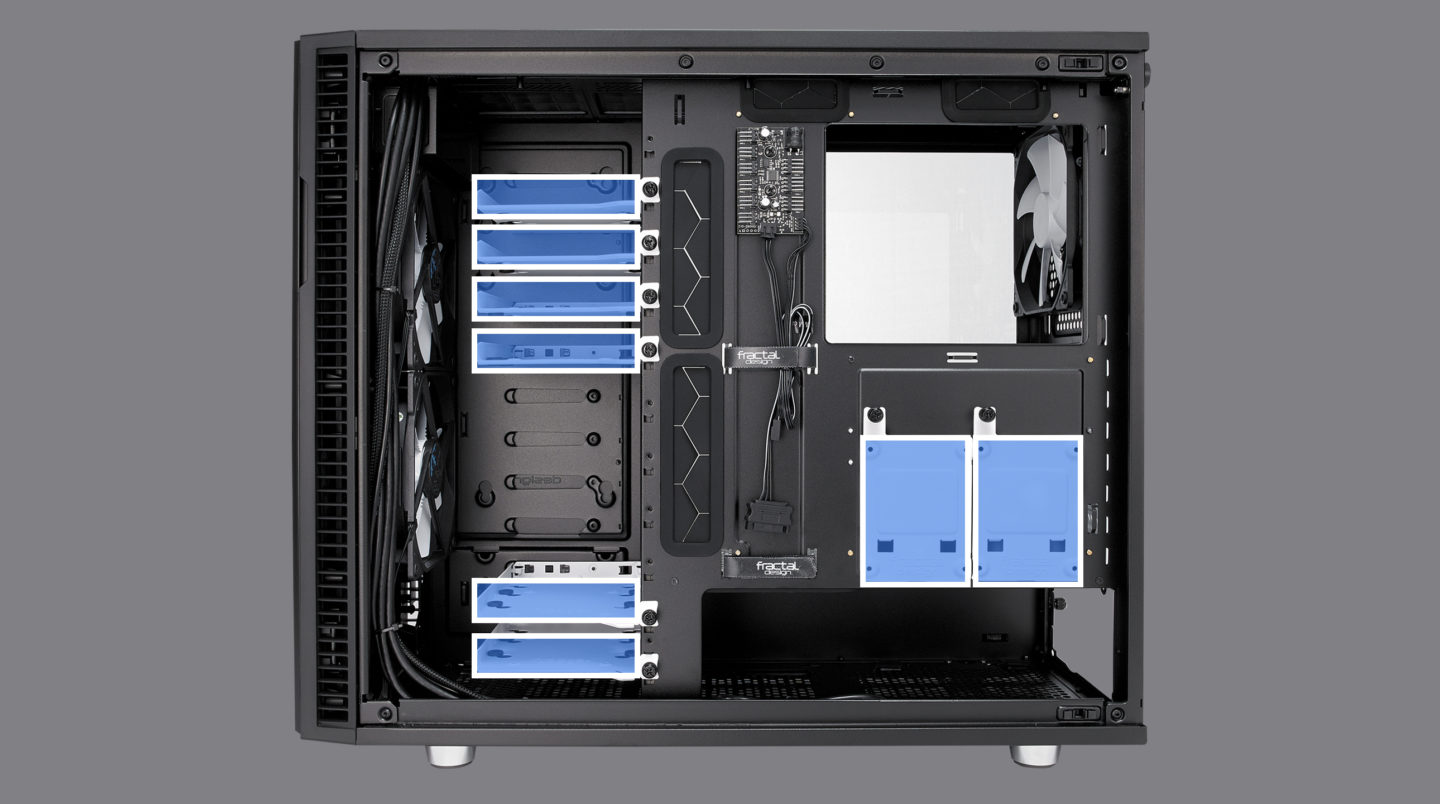

Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing

• Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths
• Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior
• Customizable 2.5” storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud

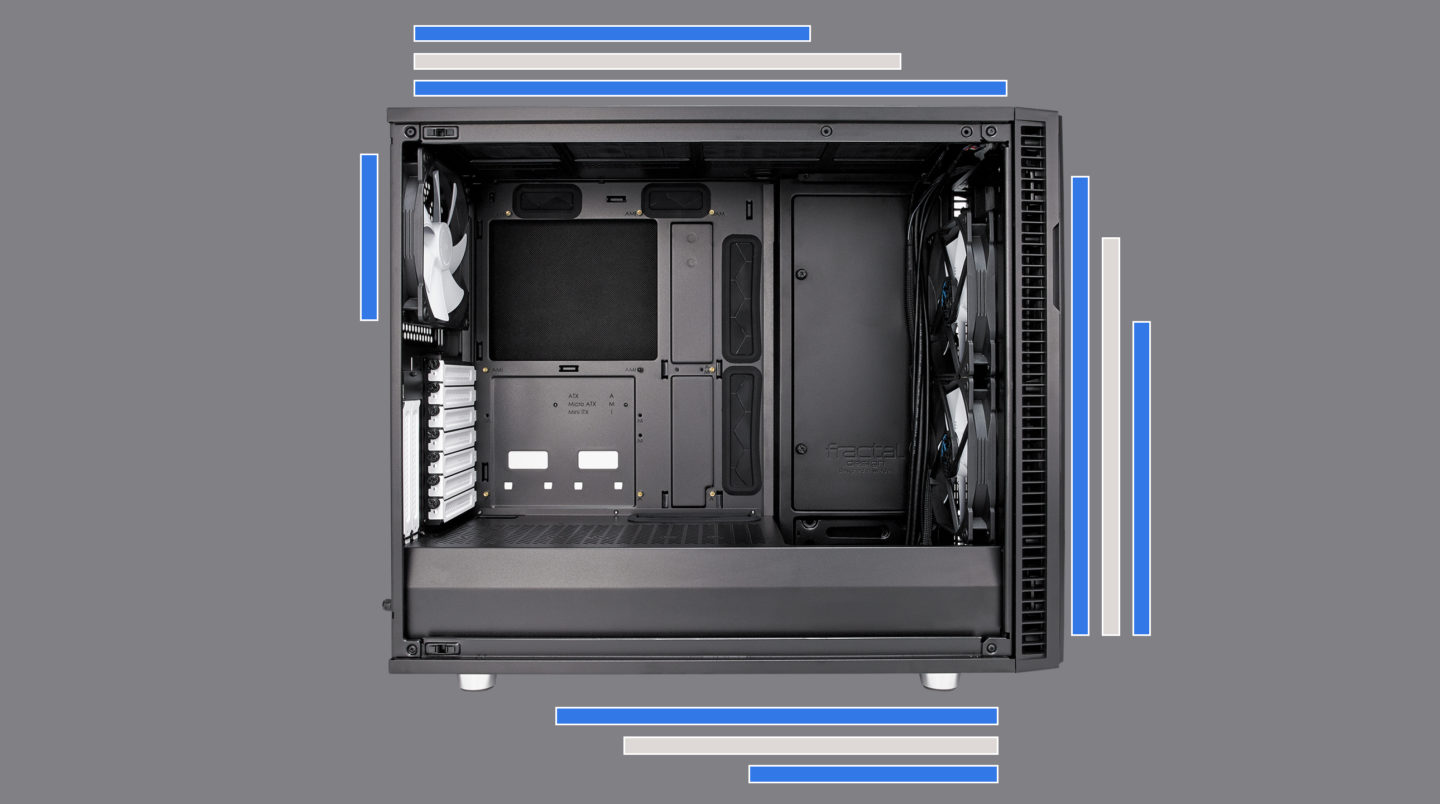

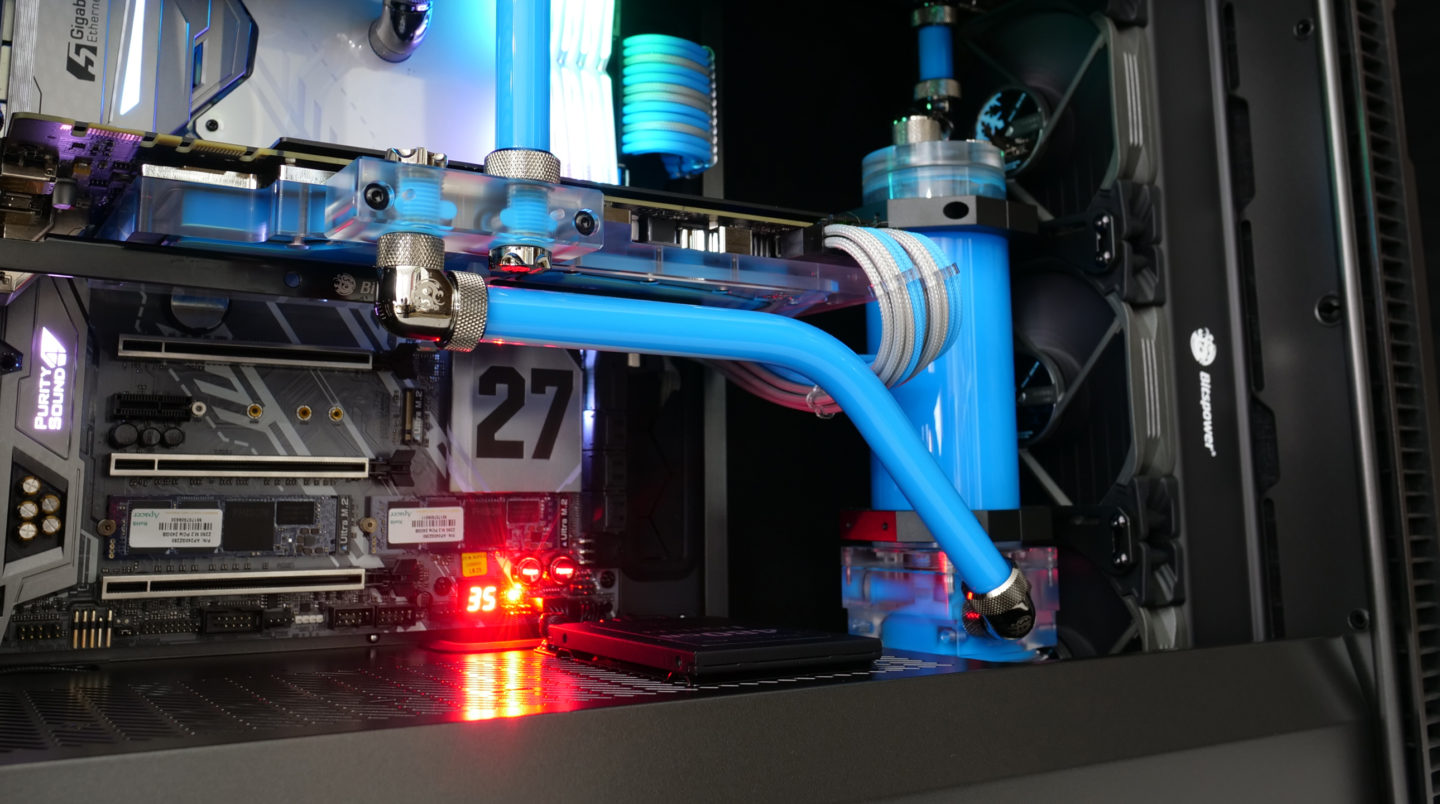

Extensive water cooling support

Room for up to a 420 mm radiator in the top, 360 mm in the front, and 280 mm in the base - making it the perfect platform for building your dream water loo

• Top: 420 mm
• Front: 360 mm
• Base: 280 mm

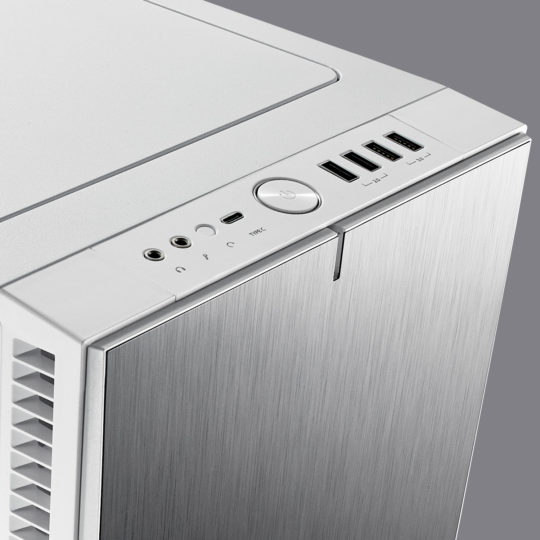

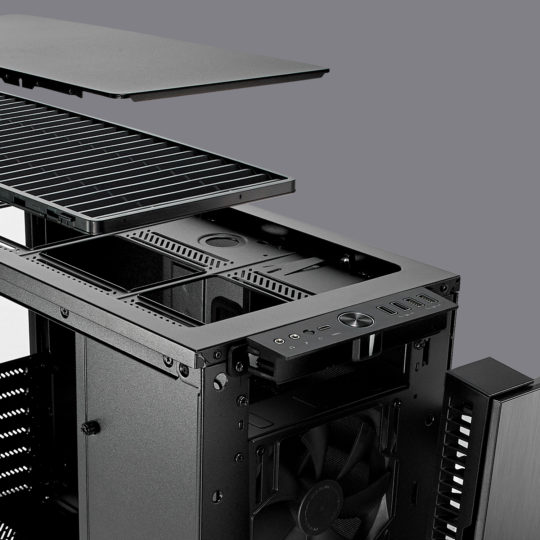

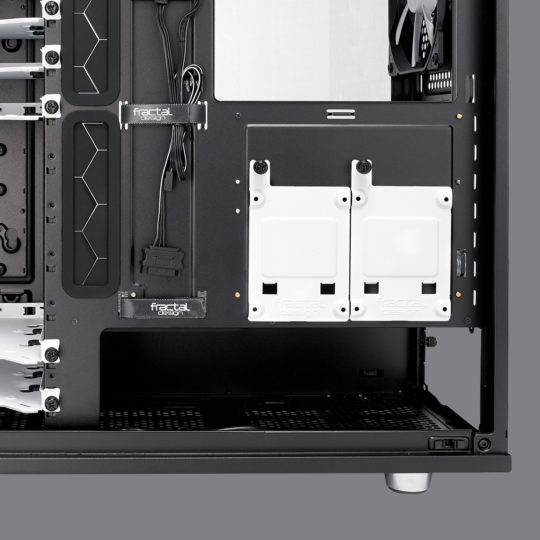

Type-C Connector USB 3.1 Gen 2 Type-C with Fast Charging support and up to 10Gbps transfer speeds	Industrial sound-dampering Optimized for silent computing with high-density industrial dampening on side, top and front panels	PSU Shroud Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior

Modularity and open case layout

If you can dream it, you can build it – the focus on modularity and possibilities offered by an open case layout means you're only limited by your imagination.

• Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
• Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing
• Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths

Specification

3.5"/2.5" Universal drive brackets: 6
Dedicated 2.5" drive brackets: 2
Dedicated 5.25" drive bracket: 1 (removable)
Expansion slots: 7 + 2 vertical
Motherboard compatibility: EATX (up to 285 mm wide), ATX, mATX, ITX
Power supply type: ATX
Front ports: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O
Total fan mounts: 9

Fans
Front fan: 3 x 120 mm or 2 x 140 mm, (2 x Dynamic X2 GP-14 included)

Top fan
Standard layout: 3 x 120 or 2 x 140
Open layout: 3 x 120/140 mm

Rear fan: 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan: 2 x 120/140 mm

Dust filters:
Bottom fan + PSU
Front fans
Top panel

Front radiator
120/240/360 mm
140/280 mm

Top radiator
Standard layout:: 120/240/140/360 mm (max 35 mm motherboard component height)
Open layout:
120/240/360 mm
140/280/420 mm (max 35 mm motherboard component height)

Rear radiator
120 mm

Bottom radiator
120/240 mm
140/280 mm

PSU max length: 300 mm
GPU max length: Max 440 mm with front fan mounted
Standard layout: Maximum width 155 mm (including power connectors) for graphics cards longer than 300 mm.
CPU cooler max height: 185 mm
Cable routing space: 23 mm
Cable routing grommets: Yes
Fixed velcro straps: Yes
Tool-less push-to-lock: Both side panels
Captive thumbscrews: HDD brackets, SSD brackets
Left side panel: Tempered glass
Right side panel: Industrial sound-dampened steel
Dimensions: Define R6 USB-C - TG
Case dimensions (LxWxH): 543 x 233 x 465 mm
Case dimensions w/o feet/protrusions/screws: 535 x 233 x 448 mm
Net weight: 12.4 kg
Package dimensions (LxWxH): 535 x 325 x 650 mm
Package weight: 14.2 kg
