Fractal Design Define 7 Mini Black Solid

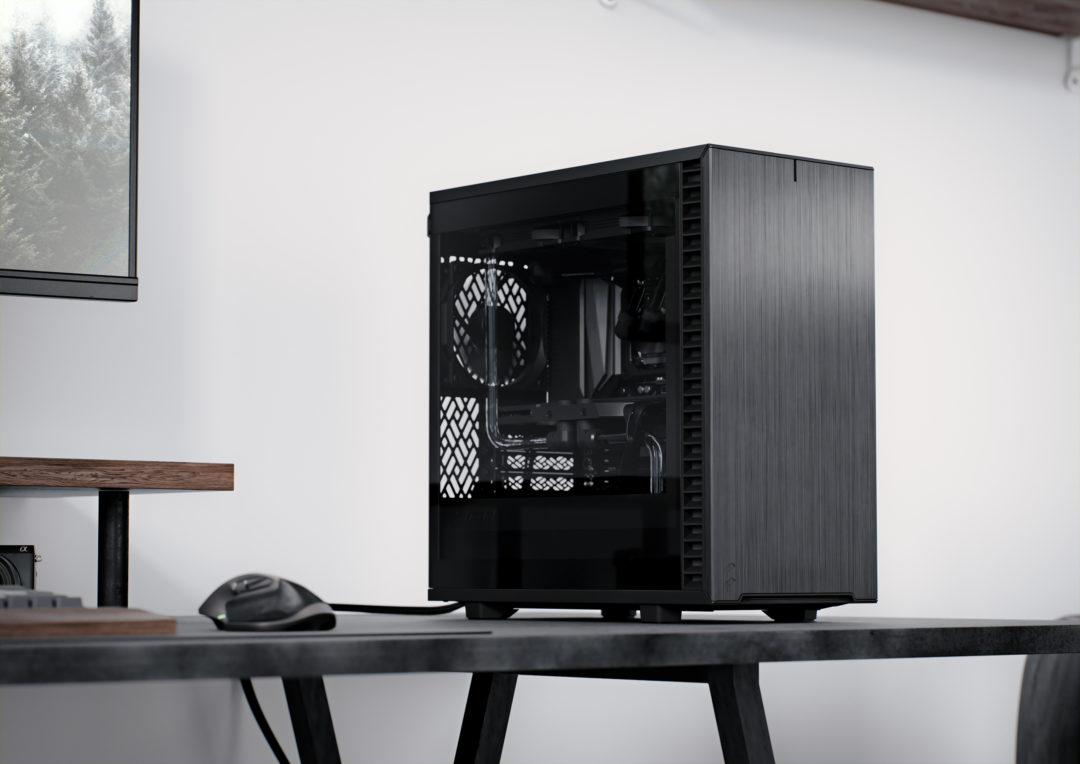

The Define 7 Mini offers the same stylish appeal and many of the life-improving features of its larger siblings, in a streamlined form factor.

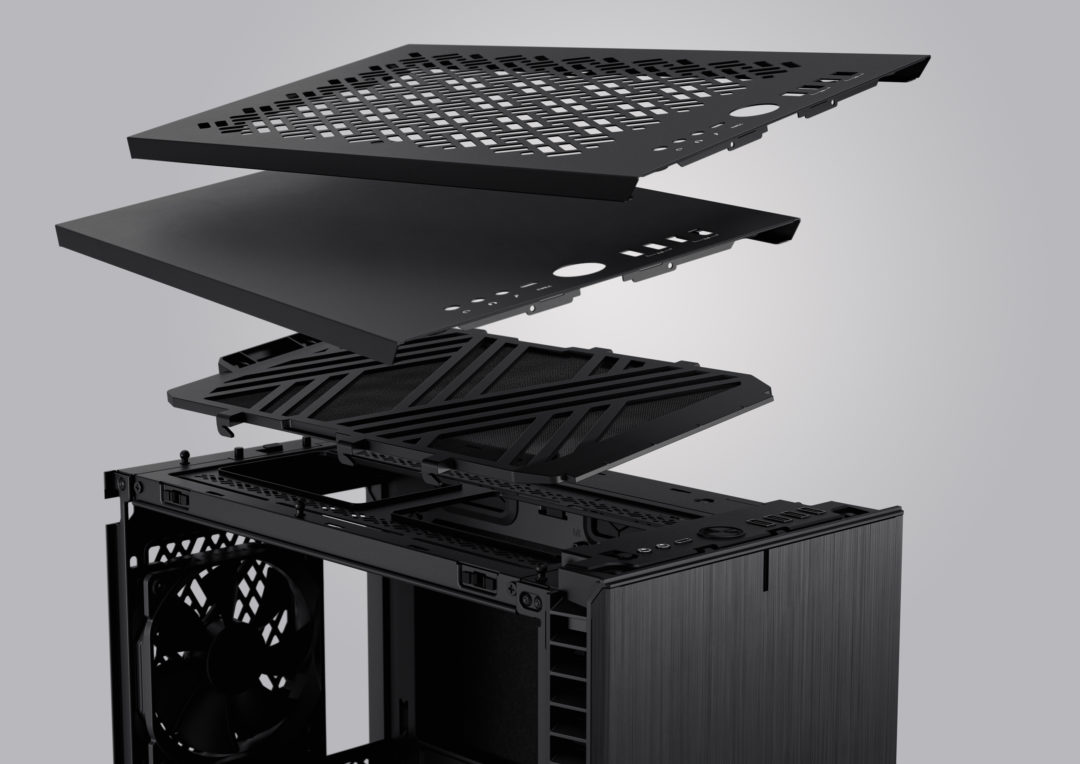

Swap between steel and ventilation
The top panel effortlessly swaps from closed steel panel to filtered ventilation
Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
Specifications:
-
3.5"/2.5" drive mounts2 (included)
-
Dedicated 2.5" drive mounts4 (2 included – note the 8 mm height limit on two of the positions)
-
Expansion slots4
-
Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
-
Total fan mounts7x 120 mm or 4x 140 mm
-
Front fan3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
-
Top fan2x 120/140 mm
-
Rear fan1x 120 mm (1x Dynamic X2 GP-12 included)
-
Bottom fan1x 120 mm (requires HDD Cage to be removed)
-
Dust filtersTop, Front, Bottom and PSU
-
Cable routing space15-25 mm
-
Cable routing grommetsYes
-
Fixed cable tiesYes
-
Tool-less push-to-lockTop, front and side panels
-
Captive thumbscrewsHDD, SSD and PSU brackets
-
Left side panelIndustrial sound-damped steel or tempered glass
-
Right side panelIndustrial sound-damped steel
Compatibility
-
Motherboard compatibilitymATX / Mini-DTX / Mini ITX
-
Power supply typeATX
-
Front radiator120/240, 140/280 (361 mm max height, 146 mm max width)
-
Top radiator120/240 mm (max 37 mm RAM with 121 mm wide radiator)
-
Rear radiator120 mm
-
Bottom radiator120 mm (requires HDD Cage to be removed)
-
PSU max length165 mm recommended with HDD Cage (200 mm without Hard Drive Cage)
-
GPU max length331 mm, 306 mm with front fan
-
CPU cooler max height167 mm
Dimensions
-
Case dimensions (LxWxH)399 x 205 x 406 mm
-
Net weightSolid: 7.49 kg TG: 6.84 kg
-
Package dimensions (LxWxH)462 x 277 x 471 mm
-
Gross weightSolid: 9.05 kg TG: 8.4 kg
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Fractal Design
Виж всички Компютърни кутии в категорията
Технически характеристики
| Захранване: | Не |
|---|---|
| Прозорец: | Не |
| Цвят: | Черен |
