Водно oхлаждане за процесор Fractal Design CELSIUS+ S36 PRYSMA, съвместимост със сокети Intel LGA1200/1150/1151/155/1156/1366/2011/2011-3/2066 & AMD AM2/AM2+/AM3/AM3+/AM4/FM1/FM2/FM2+/TR4











General specifications

• Sockets supported (Intel) 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066

• Sockets supported (AMD) AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)

• Coldplate material:  Copper

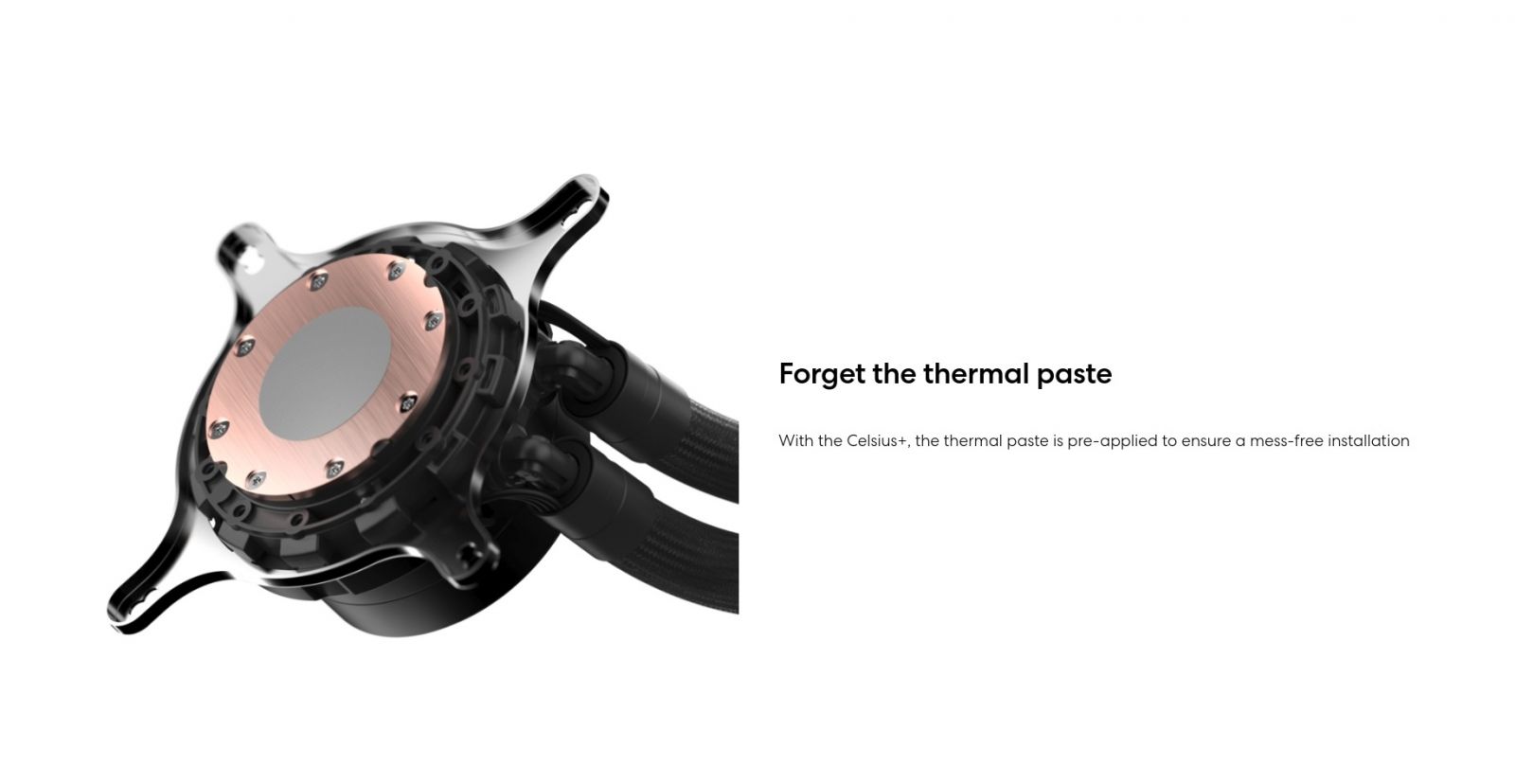

• Thermal paste:  Pre-applied

• Tube length:  400 mm

• Tube material:  Low-permeability rubber with braided nylon sleeve

• Fittings, block side:  Articulating 90-degree elbow

• Fittings, radiator side:  Straight rotary

• Fan control:  Dual mode (Auto/PWM)

Fan specifications

• Fan type:  Prisma AL-12 PWM ARGB

• Rotational speed:  500 – 2000 RPM

• Bearing:  LLS

• PWM control:  Yes

• Acoustical noise (full speed):  32.7 dBA

• Maximum air flow:  85.71 CFM

• Maximum static pressure:  2.78 mm H2O

• Input voltage:  12V DC

• Maximum input current:  0.18A

• MTBF:  100,000 hours

Pump specifications

• Rotational speed:  800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C

• Bearing type:  Ceramic bearing and shaft

• PWM control:  Yes

• Acoustical noise (full speed):  20 dBA

• Maximum pressure, 50°C:  1.46 mm H2O

• Input voltage:  12V DC

• Input current (without fans):  0.36A

• MTTF:  50,000 hours

• Block height:  45 mm

• Block measurements (with fittings):  86 x 75 mm

• Block diameter (main block body):  62 mm

Radiator specifications

• Dimensions:  123 x 30 x 403 mm

• Housing material:  Aluminum

• Fin material:  Aluminum

• Fan screw threads:  6-32
