The brilliance of prisma
|
|
|
|
|
|
|
Get the balance right Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance – and a simple twist of the pump face changes to PWM mode for full user control |
|
|
|
|
Tidier through technology ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation |
|
|
|
|
|
|
Forget the thermal paste With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation |
General specifications
-
Sockets supported (Intel) 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
-
Sockets supported (AMD) AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)
-
Coldplate material: Copper
-
Thermal paste: Pre-applied
-
Tube length: 400 mm
-
Tube material: Low-permeability rubber with braided nylon sleeve
-
Fittings, block side: Articulating 90-degree elbow
-
Fittings, radiator side: Straight rotary
-
Fan control: Dual mode (Auto/PWM)

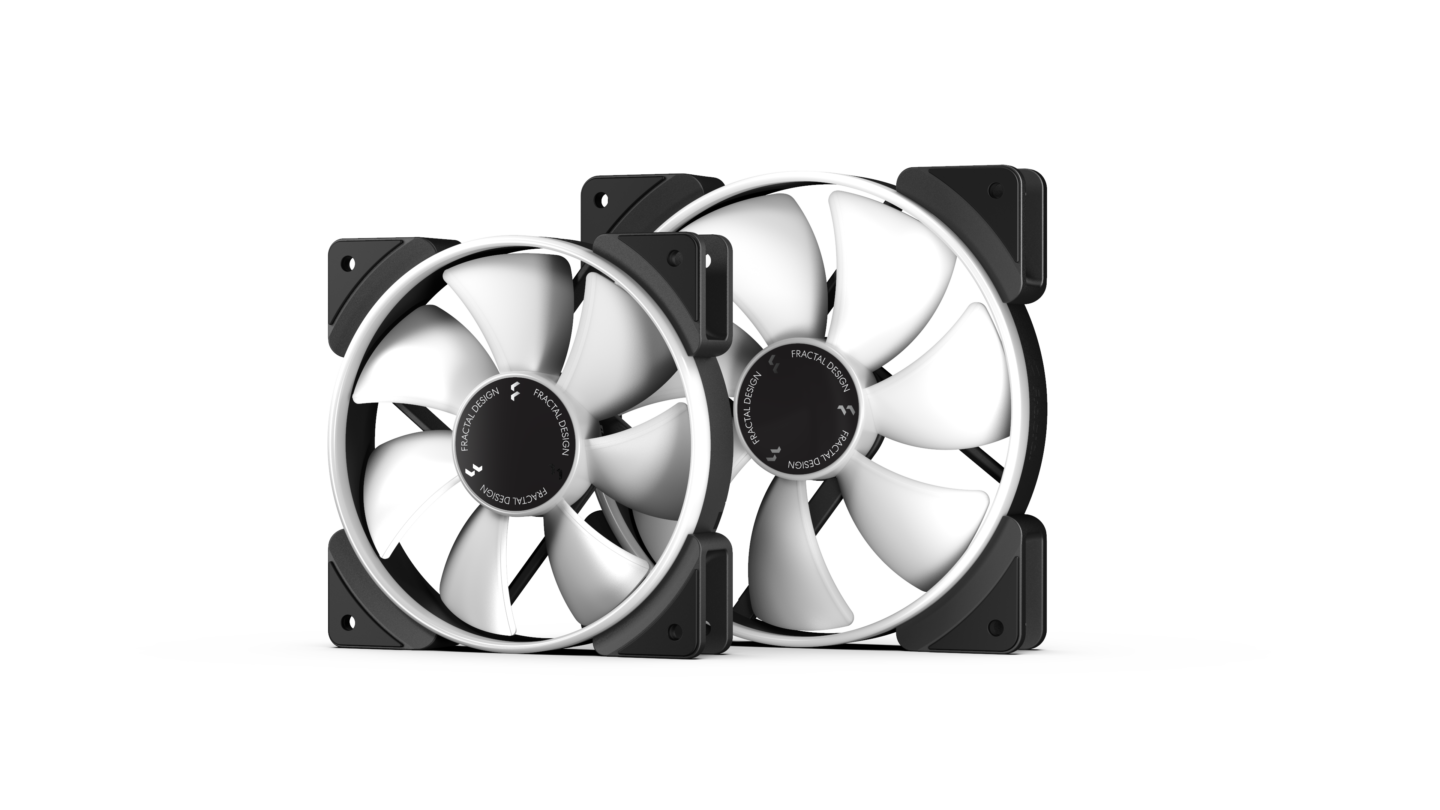

Fan specifications
-
Fan type: Prisma AL-14 PWM ARGB
-
Rotational speed: 500 – 1700 RPM
-
Bearing: LLS
-
PWM control: Yes
-
Acoustical noise (full speed): 34.1 dBA
-
Maximum air flow: 103.9 CFM
-
Maximum static pressure: 2.38 mm H2O
-
Input voltage: 12V DC
-
Maximum input current: 0.18A
-
MTBF: 100,000 hours
Pump specifications
-
Rotational speed: 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
-
Bearing type: Ceramic bearing and shaft
-
PWM control: Yes
-
Acoustical noise (full speed): 20 dBA
-
Maximum pressure, 50°C: 1.46 mm H2O
-
Input voltage: 12V DC
-
Input current (without fans): 0.36A
-
MTTF: 50,000 hours
-
Block height: 45 mm
-
Block measurements (with fittings): 86 x 75 mm
-
Block diameter (main block body): 62 mm
Radiator specifications
-
Dimensions: 143 x 30 x 324 mm
-
Housing material: Aluminum
-
Fin material: Aluminum
-
Fan screw threads: 6-32
