Fortron HYPER 80+ PRO 650W H3-650
НазадFortron HYPER 80+ PRO 650W H3-650Fortron HYPER 80+ PRO 650W H3-650Fortron HYPER 80+ PRO 650W H3-650Fortron HYPER 80+ PRO 650W H3-650Напред

Захранване Fortron HYPER 80+ PRO (H3-650), 650W, Active PFC, 80+ Bronze, 120mm вентилатор

id 225776 Код: PWRPCFSPH3650
  • Модел: HYPER 80+ PRO 650W
  • Марка: FSP
  • Гаранция: 60 месеца
  • Код на продукта: H3-650
  • Изходна мощност: 650 W
  • Модулен блок: Не
  • Форм фактор: ATX
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

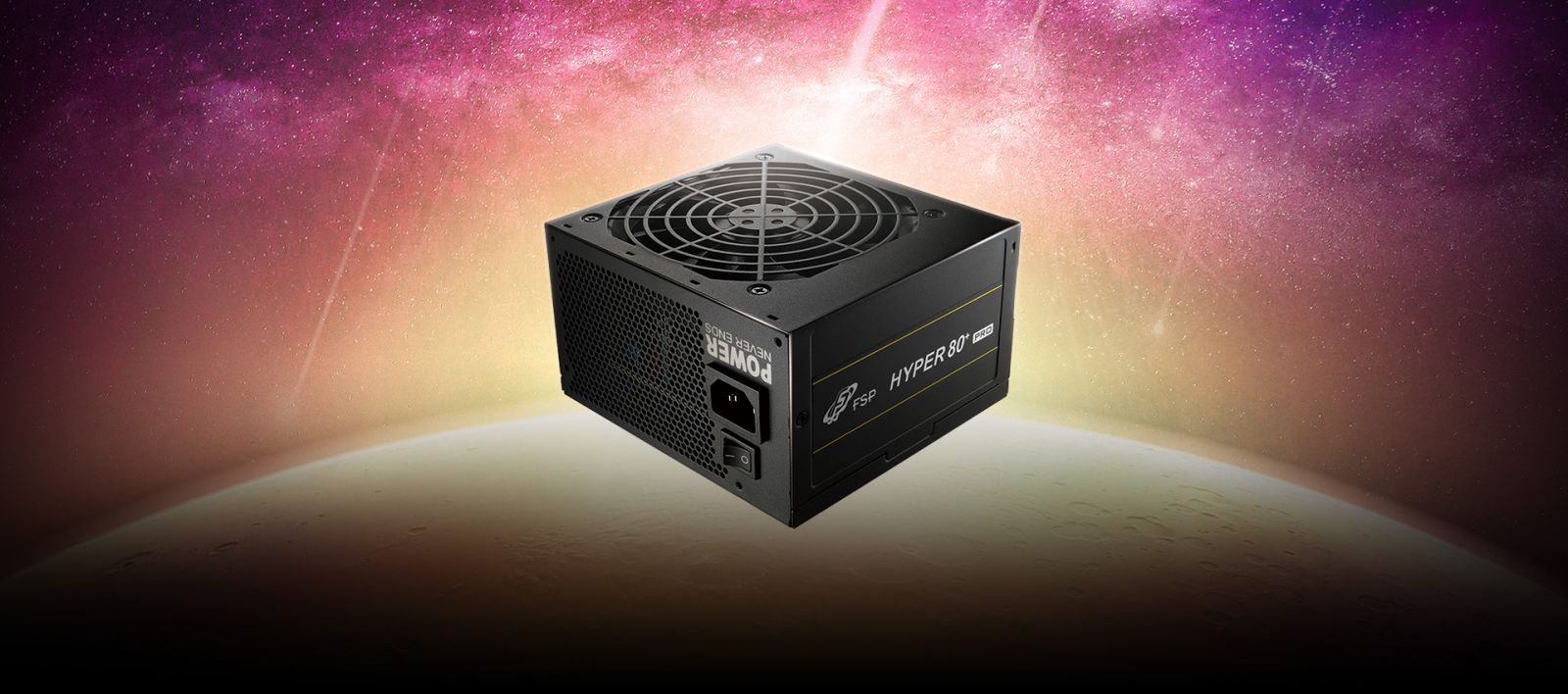

    HYPER 80+ PRO 650W

    The new HYPER 80+ Pro PSUs comply fully ATX 12 v2.52 standard and latest safety 62368 regulation as well, and features with all black and high-grade ribbon cables, will give your PC a polished look. The HYPER 80+ Pro series is characterized by a powerful single +12V rail design that continually delivers maximum performance for the most demanding components, while FSP’s custom DC-DC design provides safety and power efficiency. With an 230V 80 Plus™ rating, both models deliver over 85% high efficiency and low noise levels thanks to its thermal control fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.

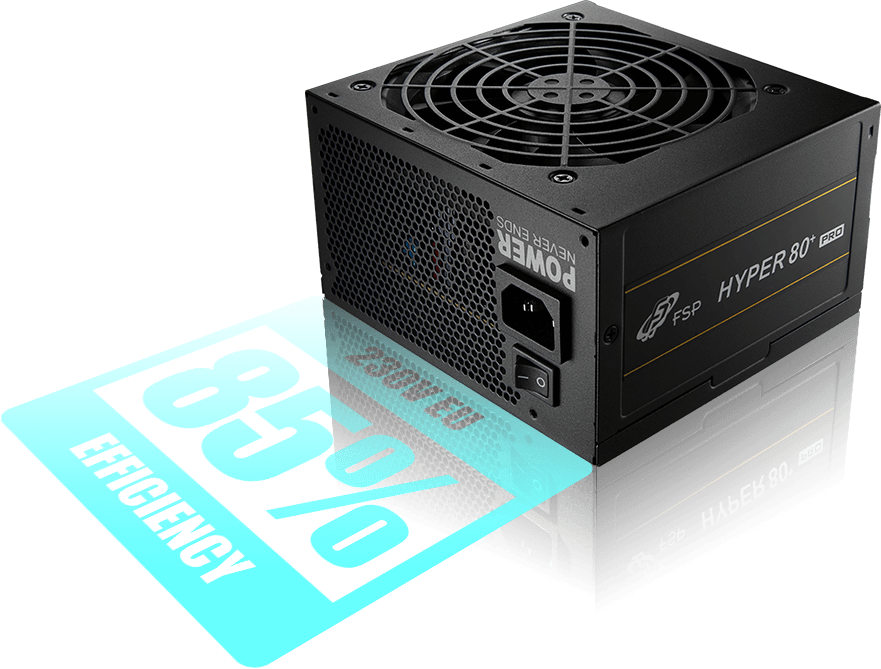

    80 Plus® 230V EU White Certification

    HYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.

    DC-to-DC Module Design

    With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.

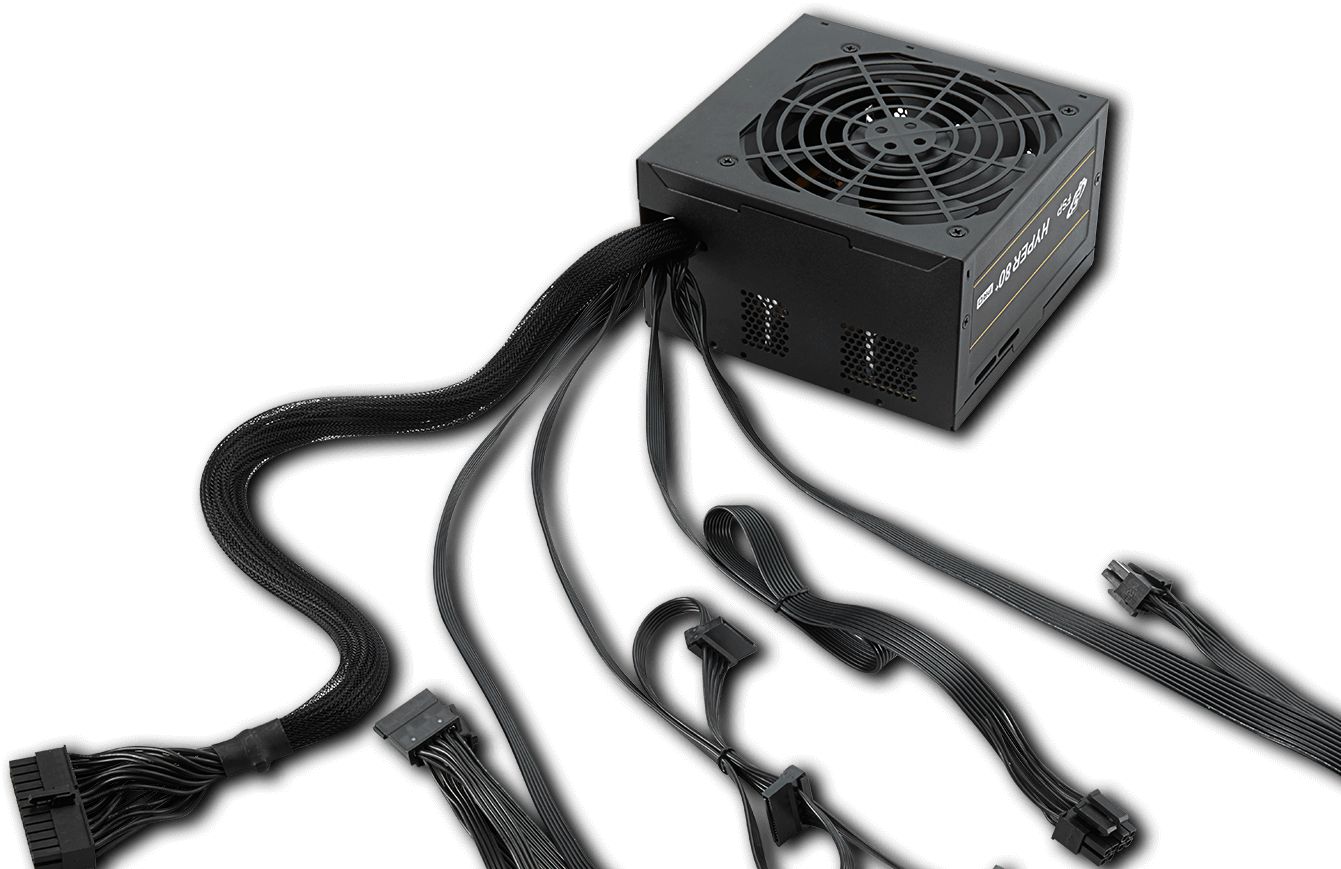

    All Black Round Cables

    The all black coating round cables give your system a superior look rather so many entry-level power supplies



    AC Input 200-240Vac~  5A  50-60Hz
    DC Output +3.3V +5V +12V -12V +5Vsb
    Max Output Current 20A 20A 54.1A 0.3A 2.5A
    Max Combined Power 100W 649.2W 3.6W 12.5W
    Total Power 650W

    Specifications:

    Model H3-650
    Rated Output Power 650W
    Form Factor ATX
    Input Voltage 200-240V
    Input Current 5A
    Input Frequency 50-60Hz
    PFC Active PFC
    Efficiency 85%
    Fan Type Sleeve Fan, 120mm
    Dimensions(L x W x H) 150 x 140 x 86mm
    Weight 1.461 kgs
    Protection OCP, OVP, OPP, SCP


    JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри FSP
    Виж всички Захранвания Настолни компютри в категорията
    Технически характеристики
    Изходна мощност:  650 W
    Модулен блок:  Не
    Форм фактор:  ATX
