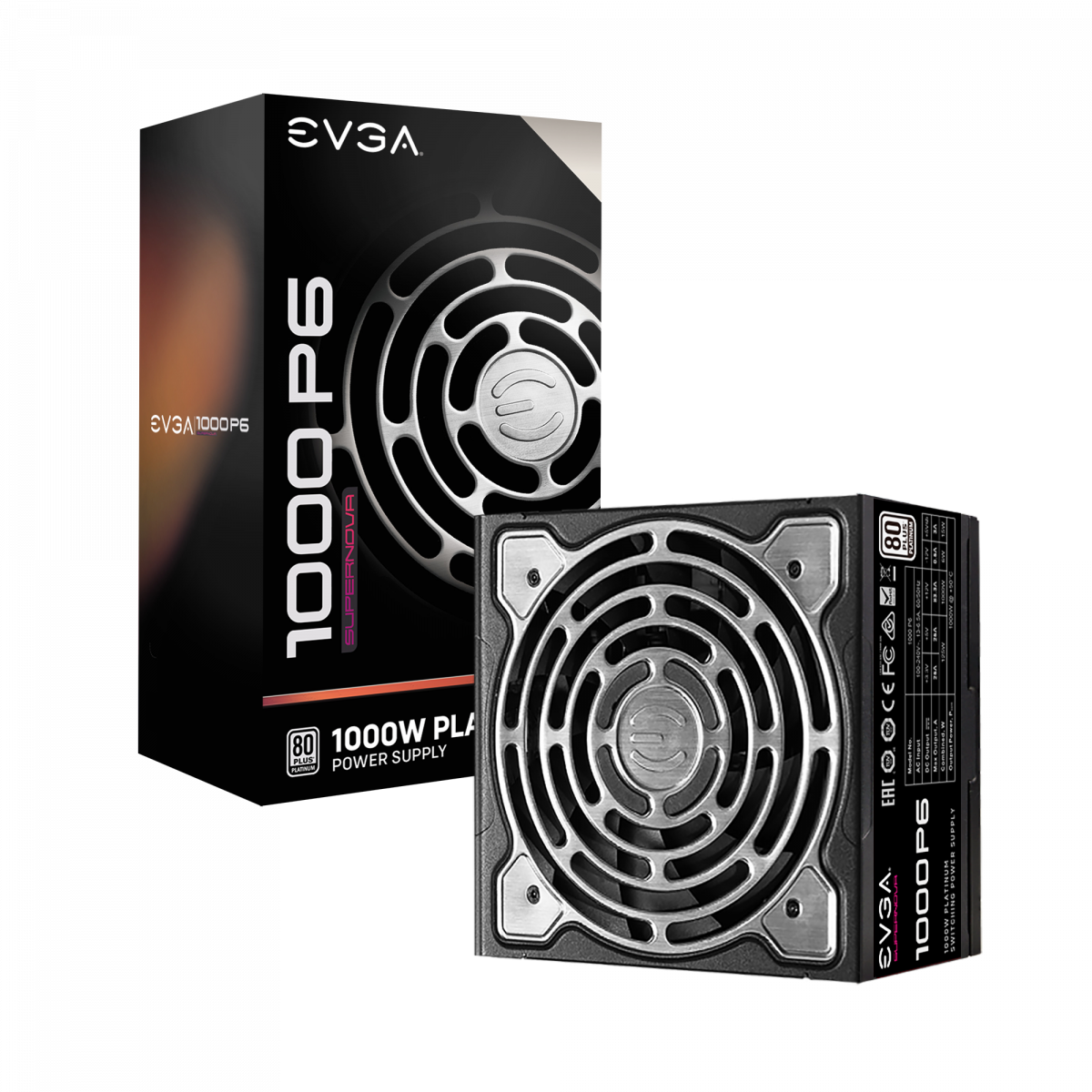

EVGA SuperNOVA 1000 P6, 80 Plus Platinum 1000W

EVGA SuperNOVA 1000 P6, 80 Plus Platinum 1000W, Fully Modular, Eco Mode with FDB Fan,Compact 140mm Size, Power Supply

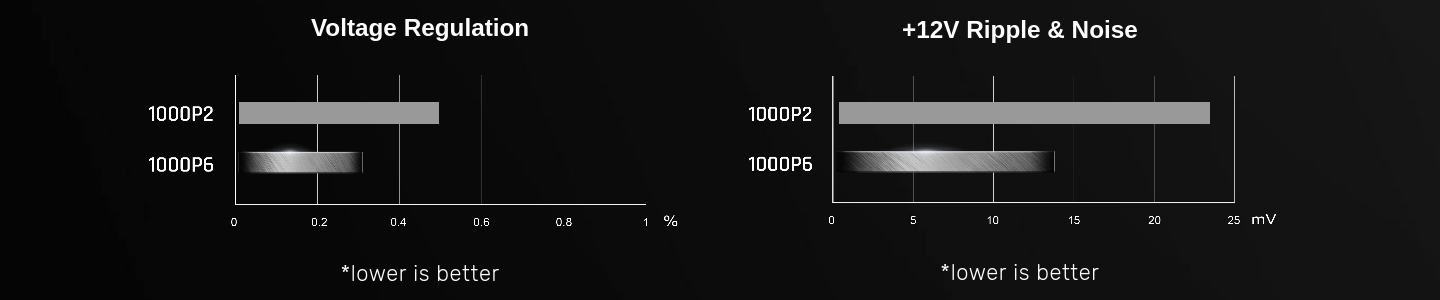

The EVGA SuperNOVA P6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater performance with extremely low ripple and noise in an even smaller chassis.

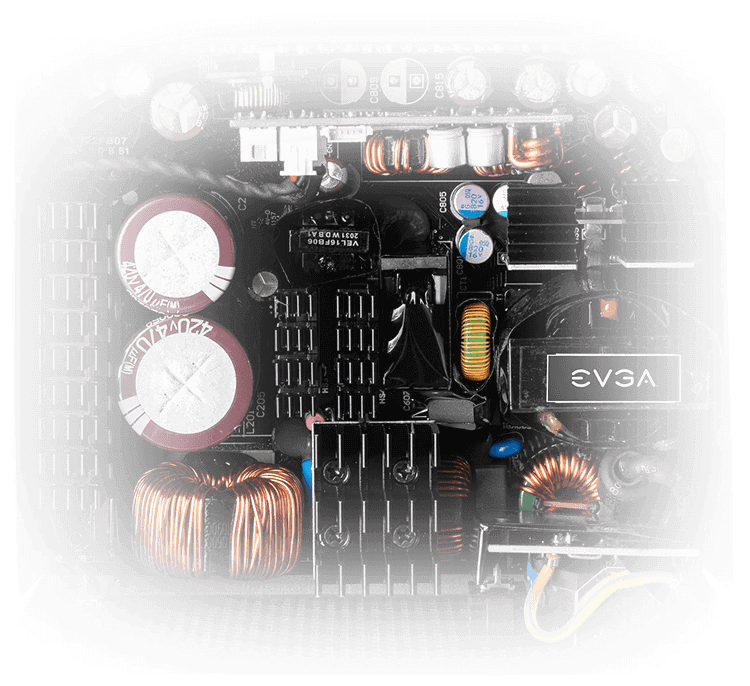

Next Gen Platform

With a full-bridge, LLC Resonant Rectification, and DC-DC design, the SuperNOVA P6 provides rock-solid stability, uncompromising efficiency, and extremely tight voltage regulation.

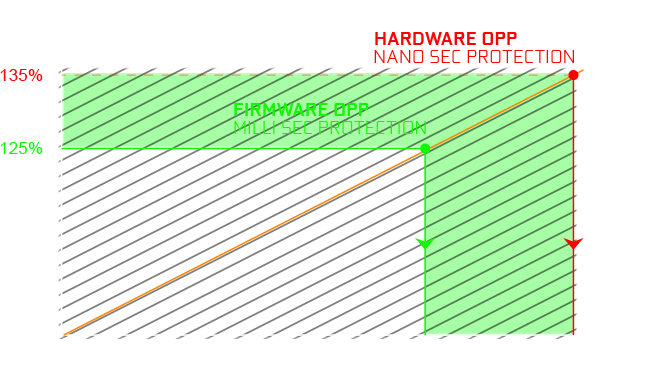

Hardware + Firmware OPP

Hardware OPP is designed to trip at 135% max wattage as a last resort to protect the system, but the SuperNOVA P6 also features firmware OPP to anticipate harmful load behavior 5-10% sooner by shutting off the power supply when over-power conditions persist longer than 1ms while avoiding an instantaneous overload trigger protection malfunction during momentary peak wattage.

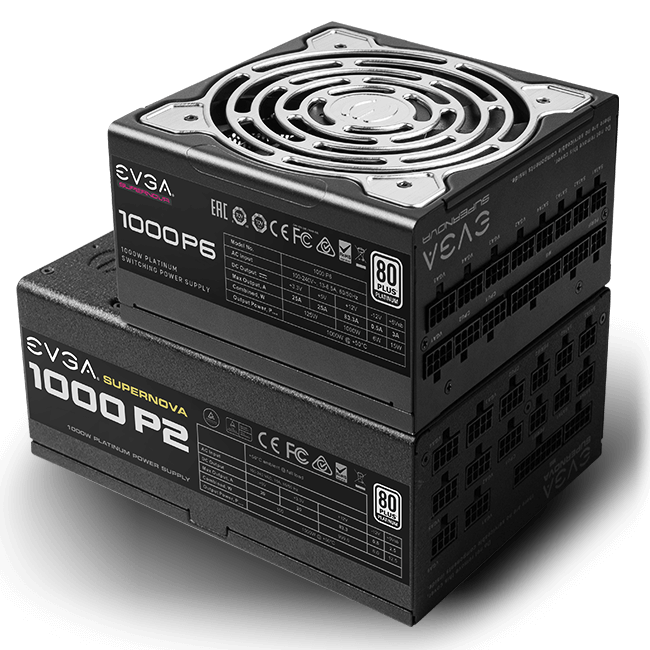

Smaller Size, Bigger Performance

The improved efficiency and voltage regulation minimizes heat, allowing the SuperNOVA P6 to be EVGA’s shortest ATX Platinum-certified power supply.

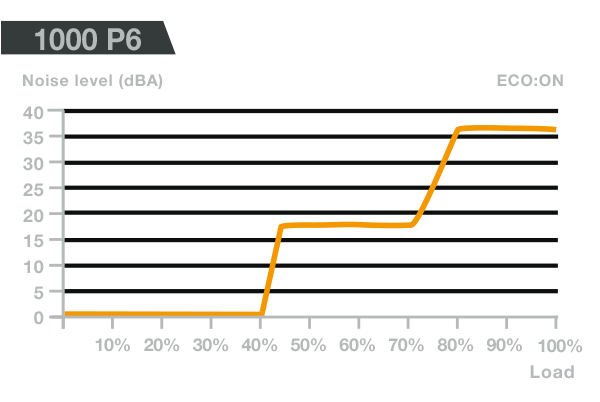

Ultra-Quiet 135mm FDB Fan with EVGA ECO Mode

To reduce noise, the SuperNOVA P6 maximizes the time the power supply stays silent or quiet at low to medium loads when ECO Mode is enabled.

Cable Length

ATX Cable     1x 600mm (m)
EPS Cable     2x 700mm (m)
PCIe Cable     2x 700mm, 3x 700mm, 820mm (m)
SATA Cable     4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable     1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter     1x 100mm
AC Power     1x 1500mm (m)
Modular Cable Type     Full

Connector Quantity

24 Pin ATX     1x 24pin
EPS (CPU)     2x 8pin (4+4)
PCIe     8x 8pin (6+2)
SATA     12x
Four-Pin Peripheral     4x
Floppy     1x

Power Specs

AC Input     100-240V~, 13-6.5A, 60/50Hz

Rail     +3.3V     +5V     +12V     +5Vsb     -12V


Max Output     25A     25A     83.3A     3A     0.5A 125W     1000W     15W  6W

Total     1000W

Additional Details

Operating Temperature      0° to 50° C
Japanese Capacitors           100%
ECO Mode                           Yes
MTBF                                   100,000 Hours
Net Weight                          8 lbs
Size                                     86mm (H) x 150mm (W) x 140mm (L)


Approvals     TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement


Fan Size / Bearing                  135mm Fluid Dynamic Bearing
