Вентилатор 120mm, EKWB EK-Vardar X3M 120ER (EKWB3830046996916), 4-pin, 2200rpm, бял

EK-Vardar X3M 120ER

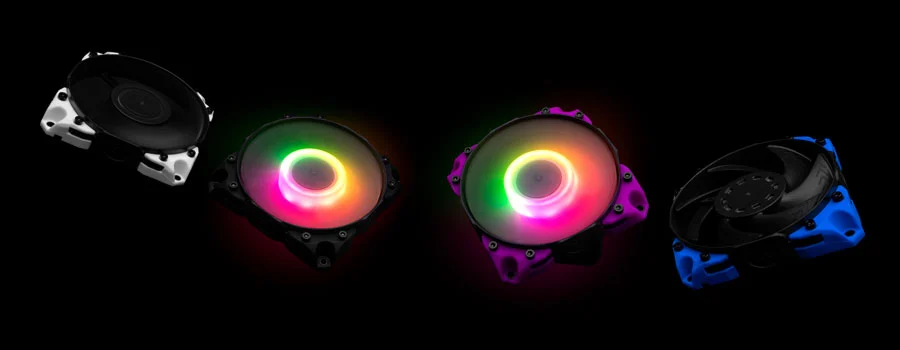

The EK-Vardar X3M 120ER is a high-static pressure computer cooling fan with added aesthetical interchangeable rubber dampers. Developed in-house and first introduced in 2014, the EK-Vardar fan is now also available as the X3M 120ER model. The rubber details on the corners of the fan are also there to reduce vibration and noise. These rubber dampers come pre-installed for use in push orientation but can be removed and mounted the other way around, for a pull flow orientation. To further make the sound profile more pleasant, airflow optimizations were made to the rotor as well.

As with the previous Vardar fans, the X3M lineup also packs the Extended Range (ER) of the PWM operation feature and the special Start-Stop function which brings a true 0dB experience for the absolute noiseless environment. The perfectly balanced 7 fan blade design is optimized for high-static pressure operation while maintaining the low noise profile throughout the whole operation range of the fan.

Mechanical and electrical specifications:

- Maximum speed: 2200 rpm (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: ~2.16W (0.18A)
- PWM Duty Cycle: 25-100% - ER (Extended Range)
- Connector: 4-pin PWM header
- Bearing Type: Dual-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 120 x 120 x 27.5 mm
- Black cable length: 50cm
