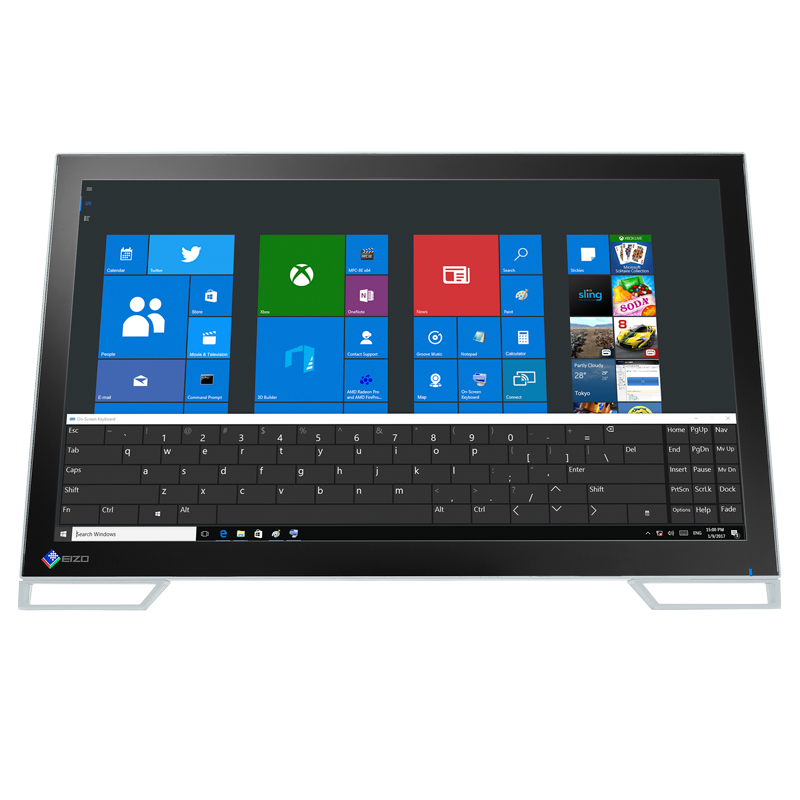

EIZO FDF2382WT-A-BK
23.0" Touch Panel Color LCD Monitor
The DuraVision FDF2382WT-A is a 23-inch multitouch monitor with Full HD (1920 x 1080) resolution. It features projected capacitive (PCAP) touch technology for seamless touch operation in industrial, medical, and public access environments.
![](/images/custom/site/20240515131951.png)
Innovative Touch Features
Intuitive Touch Operation
The monitor features projected capacitive touch (PCAP) touch technology that accepts touch input from a bare finger or stylus. High responsiveness to tapping, swiping, and flicking motions makes touch operation intuitive and smooth for use in a range of environments.
![](/images/custom/site/20240515132033.jpg)

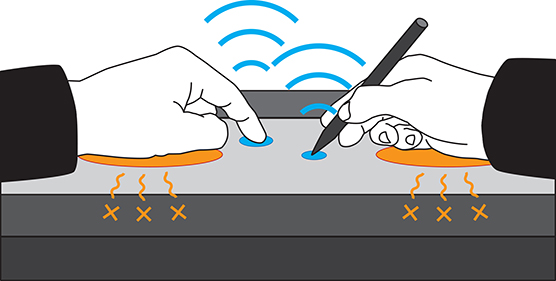

Palm Rejection
The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.
Palm rejection minimum activation area is 2 x 2 cm.
Comfort and Ease-of-Use

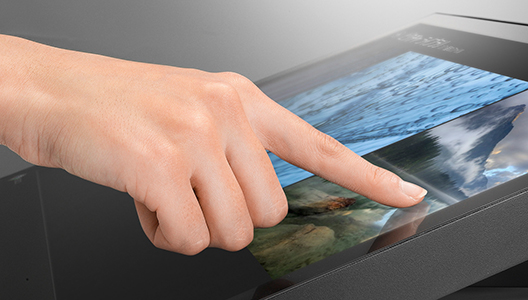

Fully Flat Design
The fully flat design enables seamless touch operation across the screen. The smooth surface allows for easy cleaning.
![](/images/custom/site/20240515132217.jpg)

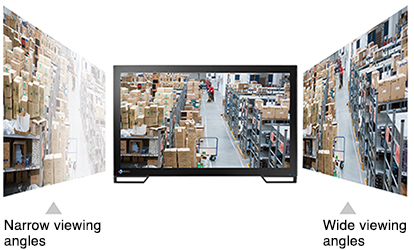

Clear View from All Angles
The monitor is equipped with an IPS panel with 178° viewing angles that minimize color shift and contrast changes when viewing the screen from an angle. The antiglare screen also minimizes reflections for comfortable viewing.
![](/images/custom/site/20240515132221.jpg)

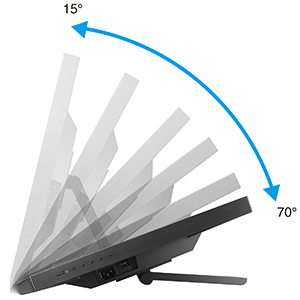

Reclining Stand
The equipped stand provides flexible positioning that allows the monitor to rest on your desk and recline back to the desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.
![](/images/custom/site/20240515132226.jpg)
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The monitor relieves eye fatigue by regulating brightness to make flicker unperceivable.

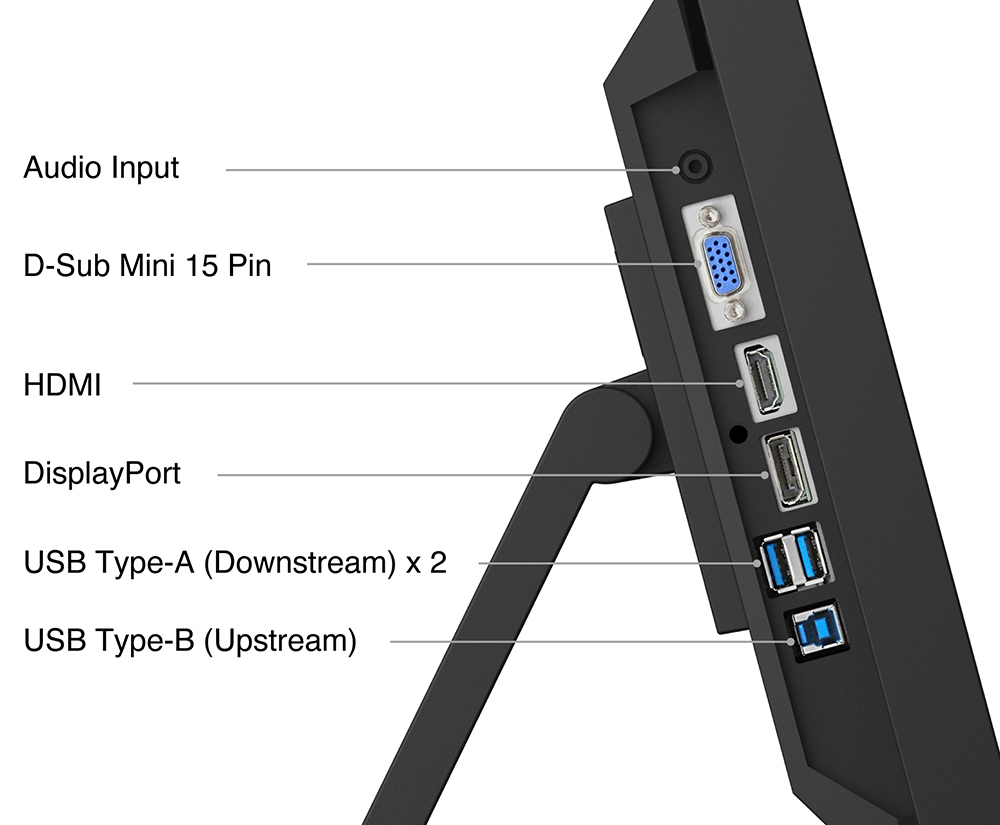

Complete Connection
The monitor is equipped with DisplayPort, HDMI®, and D-Sub inputs which are conveniently located on the side for easy access.
![](/images/custom/site/20240515132230.jpg)
Specifications:
Panel | |
---|---|
Type | IPS |
Backlight | LED |
Size | 23.0" (58.0 cm) |
Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
Viewable Image Size (H x V) | 509.2 x 286.4 mm |
Pixel Pitch (H x V) | 0.265 x 0.265 mm |
Display Colors | 16.77 million |
Viewing Angles (H / V, typical) | 178° / 178° |
Brightness (typical) | 260 cd/m2 |
Contrast Ratio (typical) | 1000:1 |
Response Time (typical) | 11 ms (gray-to-gray) |
Touch Panel | |
Type | Projected Capacitive |
Touch Points | 10 |
Surface Treatment | Anti-Glare coating |
Communication Protocol | USB |
Surface Hardness | 5 H |
Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
Video Signals | |
Input Terminals | DisplayPort (HDCP1.3), HDMI (HDCP1.4), D-Sub mini 15 pin |
Digital Scanning Frequency (H / V) | 31 - 68 kHz / 59 - 61 Hz |
Analog Scanning Frequency (H / V) | 31 - 81 kHz / 55 - 76 Hz |
Sync Formats | Separate |
USB | |
Upstream | USB 5Gbps: Type-B |
Downstream | USB 5Gbps: Type-A x 2 |
Audio | |
Speakers | 1.0 W + 1.0 W |
Input Terminals | Stereo mini jack, DisplayPort, HDMI |
Power | |
Power Input | AC 100 - 240 V, 50 / 60 Hz |
Typical Power Consumption | 12 W |
Maximum Power Consumption | 47 W |
Power Save Mode | 0.5 W or less |
Features & Functions | |
Preset Modes | User1, User2, sRGB |
Physical Specifications | |
Dimensions (Landscape, W x H x D) | 556.7 x 143.9 - 353.9 x 216.3 - 401.3 mm |
Dimensions (Without Stand, W x H x D) | 556.7 x 339.2 x 54 mm |
Net Weight | 6.6 kg |
Net Weight (Without Stand) | 6 kg |
Tilt | 15° - 70° |
Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 3.0 - 10.0 mm |
Виж още Монитори Eizo
Виж всички Монитори в категорията
Документация
Технически характеристики
DisplayPort: | Да |
---|---|
HDMI: | Да |
DVI: | Не |
Thunderbolt: | Не |
USB Type-C: | Не |
USB Type-А: | Да |
VGA (D-Sub): | Да |
Гама: | Професионален |
---|---|
Екран размер: | 23" (58.42 cm) |
Разделителна способност (max): | 1920 x 1080 |
Аспект изображение: | 16:9 |
Тип матрица: | IPS |
Честота на опресняване: | 60 Hz |
Време за реакция: | 11 ms |
Яркост: | 260 cd/m² |
TV Тунер: | Не |
Тъчскрин: | Да |
Вградени колони: | Да |
3D: | Не |
Технология: | LED |
Цвят: | Черен |
Формат екран: | Wide |
Извит: | Не |
Преносим: | Не |
