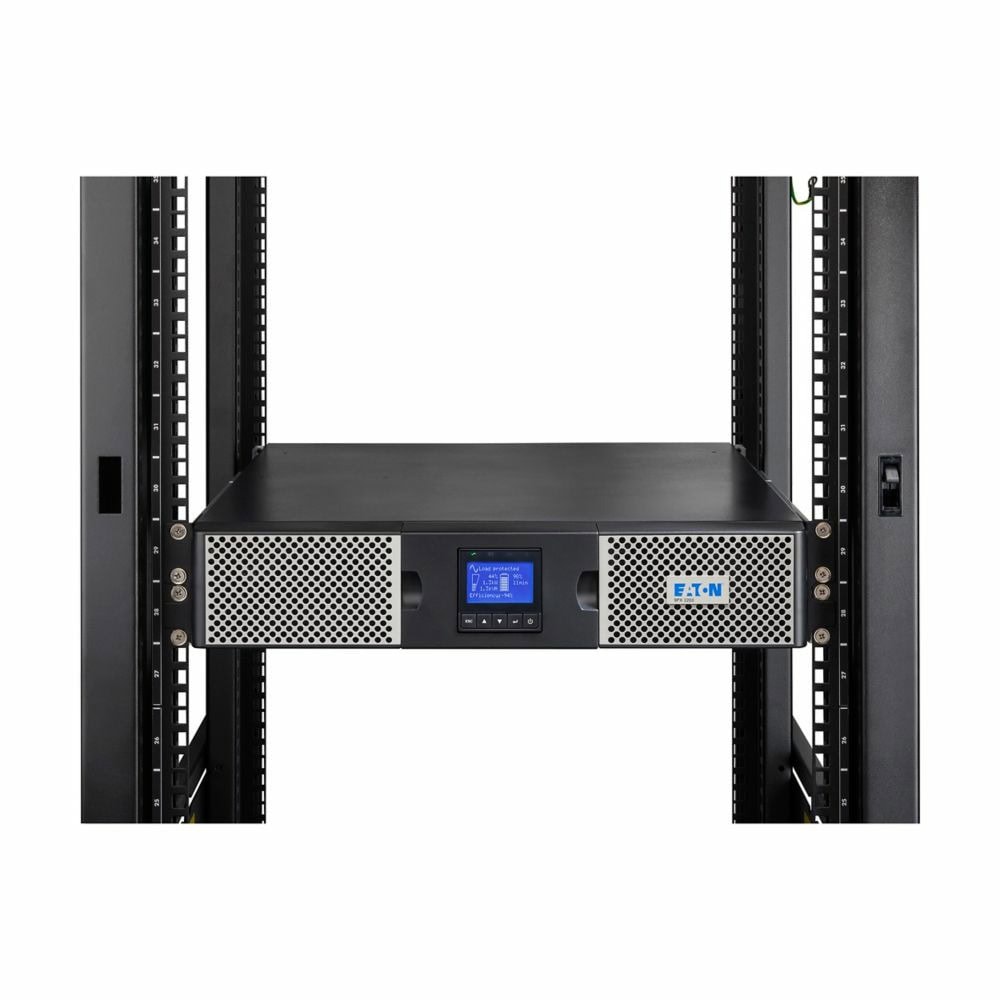

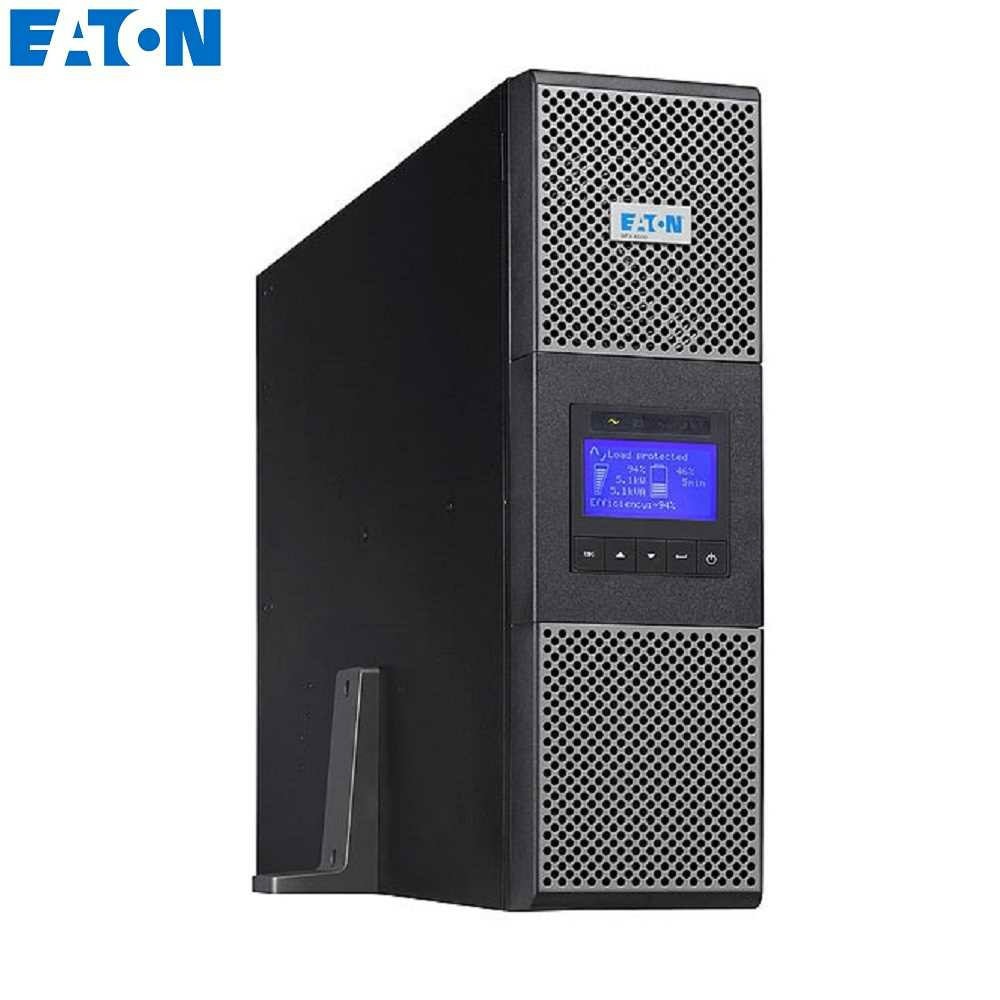

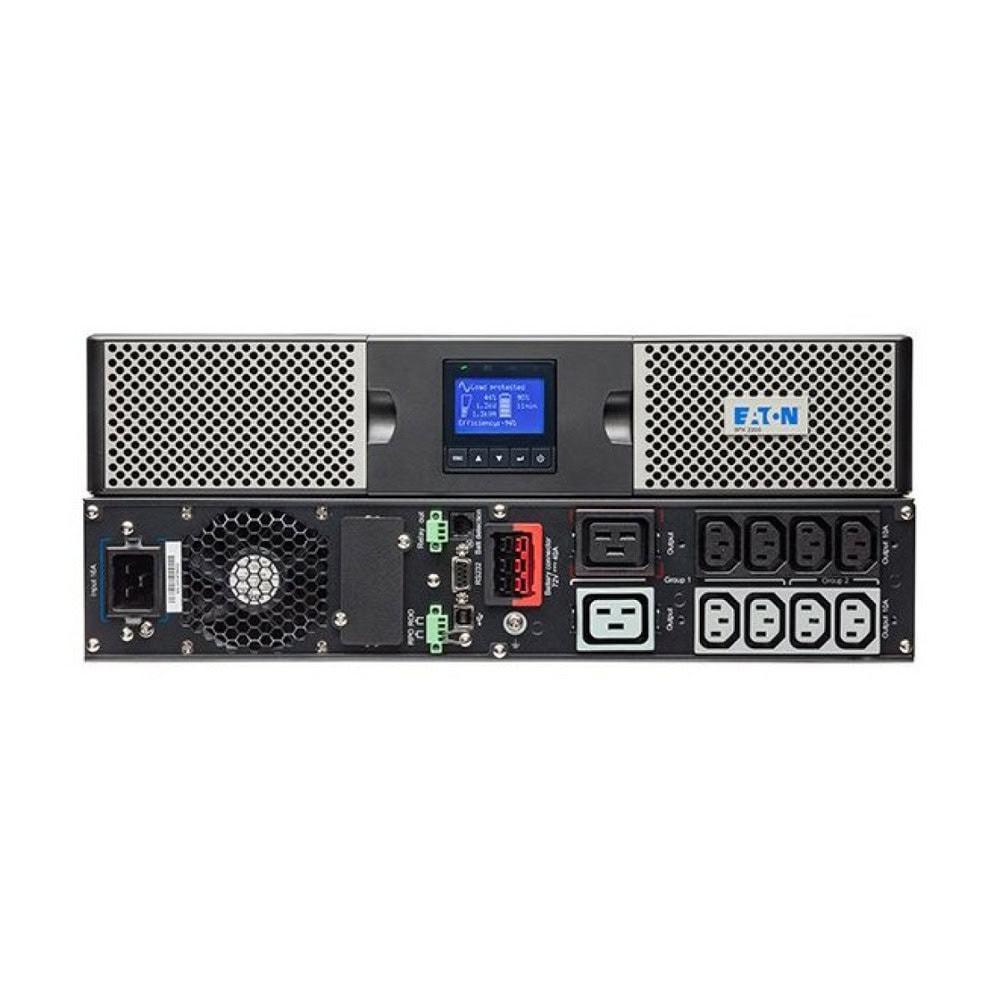

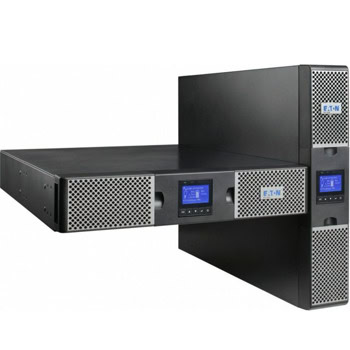

UPS Eaton 9PX 9PX1500IRT2U, 1000VA/1000W, LCD дисплей, On-line double conversion, PFC, USB, RS232, Rack/Tower

Eaton 9PX 1000i RT2U
9PX1000IRT2U

General
Topology On-line double conversion with Power Factor Correction (PFC) system
Configuration Rack/Tower
Part Number 9PX1000IRTN
Rating (VA/Watts) 1000/1000
Dimensions (H x W x D, mm) 86.5 x 440 x 450
Weight (kg) 17.4
Rail Kit Included Yes

Electrical Input
Connection
(1) IEC-320-C14
IEC C14
Input Voltage Range 176-276V without derating (up to 100-276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz

Electrical Output
Nominal Voltage 200/208/220/230/240V
Outlets
(8) IEC-320-C13
IEC C13
Efficiency (Normal Mode) Up to 91.5% in online mode (up to 97.5% in Hi-efficiency mode)
Output Frequency 50/60 Hz autoselect, frequency converter mode

Battery
Runtime
(Minutes)
200
400
600
800
1000
0
500
1000
1500
2000
2500
3000
3500
Standard Runtime
With 1 EBM
With 2 EBM
With 3 EBM
With 4 EBM
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

Show:
Standard Runtime
With 1 EBM
With 2 EBM
With 3 EBM
With 4 EBM
Load (Watts): 744
Standard Runtime: 9
With 1 EBM: 50
With 2 EBM: 98
With 3 EBM: 149
With 4 EBM: 204
Battery Management ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Extended Battery Capability EBM (2U)

Communications
User Interface Multilingual graphical LCD display
Communication Ports Network management card + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Environmental & Standards
Audible Noise 35dB
Operating Temperature 0 to 40°C
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.4
EMC Markings IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Approvals CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
