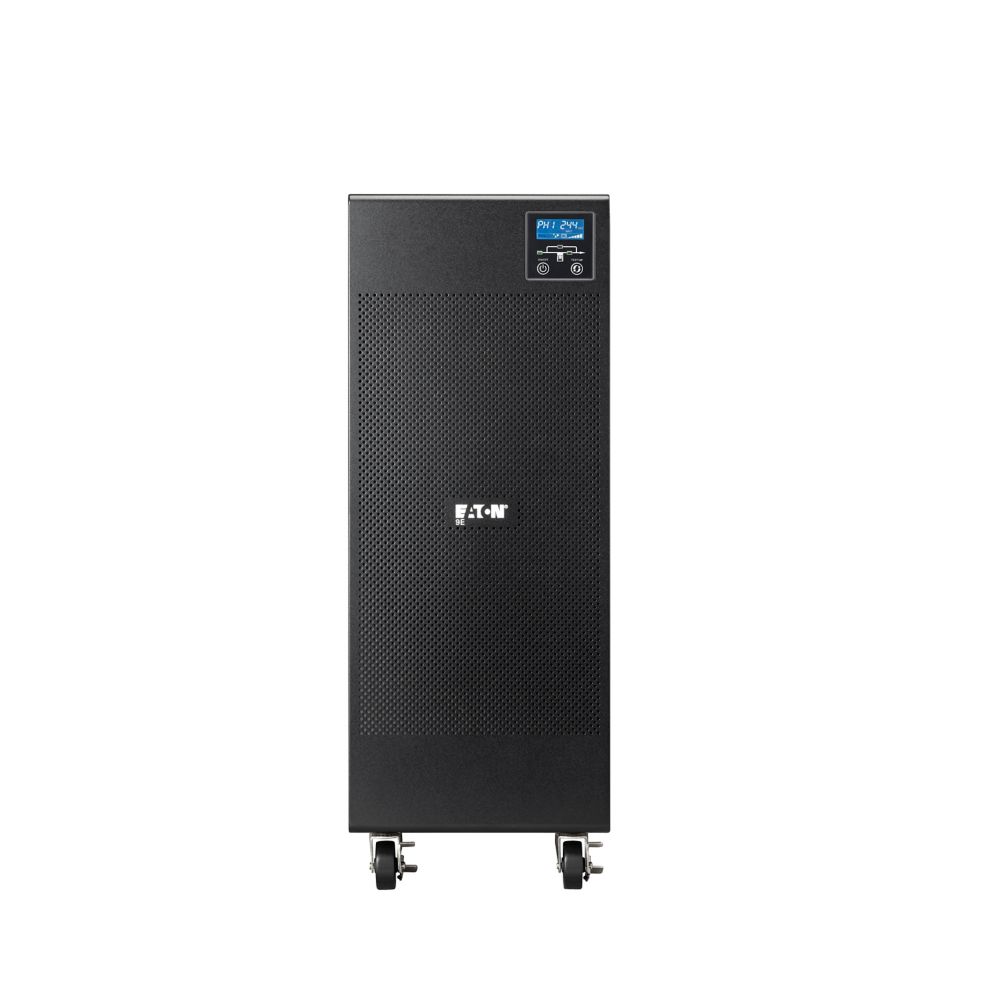

UPS Eaton 9E 6000i, 6000VA/4800W, On Line

Eaton 9E 6000i

Specifications:

Product Length/Depth

61.29 cm

Product Height

70.85 cm

Product Width

26.24 cm

Product Weight

68 kg

Compliances

CE Marked
TUV

Battery

Battery type

Sealed, lead-acid

Battery replacement

Replacable batteries

Battery quantity

15

Battery management

• Automatic battery test
• Deep discharge protection

Battery rating

12 V / 9 Ah

Extended battery capability

Yes

Electrical output

Voltage

230V

Wattage

4800 W

Output power factor

0.8

Output voltage range

220/230/240 V +/- 2%

Output waveform

Sine wave

Output nominal voltage

230V default (220/230/240V)

Voltage distortion output (linear load) - max

3

Feed type

1

Topology

Online/Double-conversion

VA rating

6000 VA

Electrical input

Input connection

Hardwired/fixed connection

Input nominal voltage

230V default (220/230/240V)

Nominal frequency

50/60 Hz

Input power factor

>.99

Input voltage range

176-276 V (110-276 V with derating)

Input frequency range

45-66Hz

Communications

Includes network card

No

Communication

• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote power off
• Communication slot

Ethernet interface

No

User interface

LCD Display

Potential free switch contact

Yes

Expansion slots

One slot for optional communication card

Software compatibility

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

Type of interface

Other

Environmental

Altitude

3000 m

Noise level

<55 dB at 1 meter

Temperature range

0° to 40°C (32° to 104°F)

Relative humidity

0-95% non-condensing

Construction type

Free standing model

Phase (output)

1

Internal bypass

Yes

Auto shutdown function

Yes

Color

Black

Efficiency

91

Rack mounting kit

No

Phase (input)

1

Hot swap power

No
