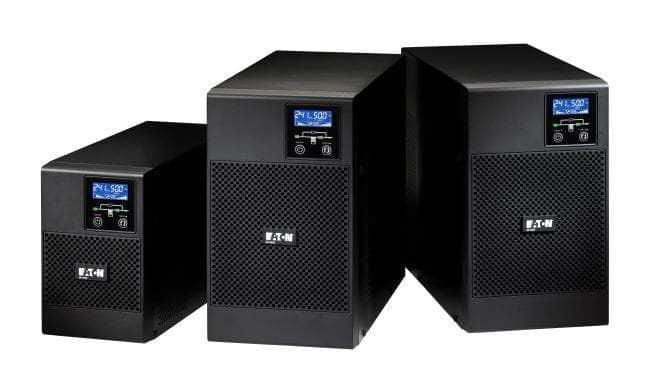

UPS Eaton 9E 3000i, 3000VA/2400W, LCD дисплей, On-Line, Tower

Eaton 9E 3000i

Reliability and performance
• The Eaton 9E constantly monitors power conditions and regulates voltage and frequency due to the online double conversion topology.
• Power more servers than most similar UPSs due to a 0.8 power factor.
• Trust a leading manufacturer with decades of experience and high quality standards: CE compliance certified by external agency (CB report from the TUV).

Manageability
• Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface.
• Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-M2). Relay cards or ModBus cards are also available.
• Eaton 9E is compatible with Eaton IPM Editions Software which permits to integrate all major operating systems, leading virtualisation environments and cloud orchestrations tools.

Flexibility
• The internal bypass allows service continuity in case of an internal fault. A maintenance bypass is also available as standard for easy maintenance of the UPS without powering down critical systems.
• Make your installation more flexible with a combo input (3:1 and 1:1) on the 10kVA, 15kVA, and 20kVA.
• Extend runtime as you like by adding up to 4 external battery modules (EBM). For extra-long runtime, XL models with internal supercharger are also available at 3kVA, 10kVA and 20kVA.

General specifications
Product Length/Depth
19 cm
Product Height
33 cm
Product Width
39.9 cm
Product Weight
24.2 kg
Compliances
CE Marked
TUV
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC

Battery
Battery type
Sealed, lead-acid
Runtime graph
View runtime graph
Battery replacement
Replacable batteries
Battery quantity
6
Battery management
Automatic battery test
Deep discharge protection
Battery rating
12 V / 9 Ah
Extended battery capability
Yes

Electrical output
Receptacle
(6) C13, (1) C19
Voltage
230V
Wattage
2400 W
Output power factor
0.8
Output voltage range
220/230/240 V +/- 2%
Output waveform
Sine wave
Output nominal voltage
230V default (220/230/240V)
Voltage distortion output (linear load) - max
3
Feed type
1
Topology
Online/Double-conversion
VA rating
3000 VA

Electrical input
Input connection
C20
Input nominal voltage
230V default (220/230/240V)
Nominal frequency
50/60 Hz
Input power factor
>.99
Input voltage range
176-300 V (100 V-300 V with derating)
Input frequency range
40-70 Hz
Communications

Communication
USB port (HID compliant)
Serial port (RS232)
Communication slot
User interface
LCD Display
Expansion slots
One slot for optional communication card
Software compatibility
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface
Other

Environmental
Altitude
3000 m
Noise level
<37 dB at 1 meter
Temperature range
0° to 40°C (32° to 104°F)
Relative humidity
0-95% non-condensing

Additional specifications
Construction type
Free standing model
Package contents
UPS
USB cable
Serial cable
Quickstart guide
Safety instructions
Phase (output)
1
Internal bypass
Yes
Auto shutdown function
Yes
Color
Black
Efficiency
91
Phase (input)
1
