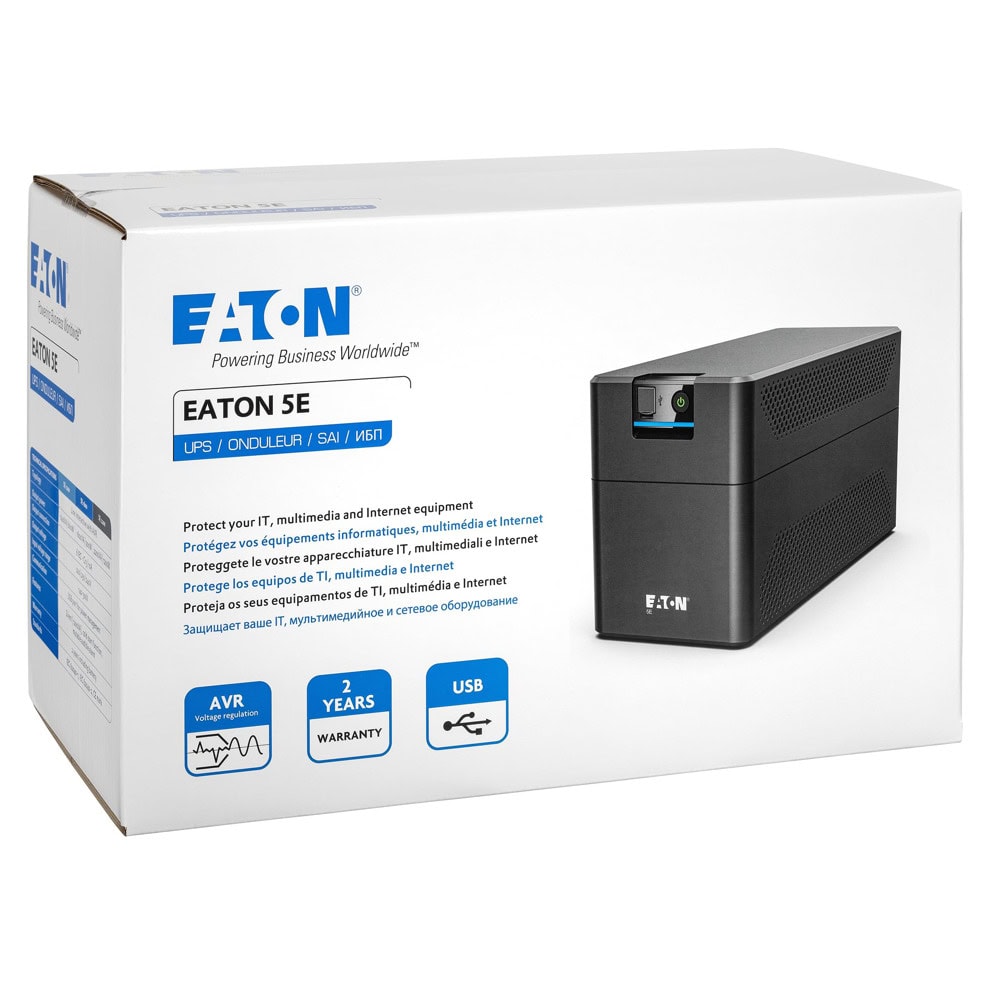

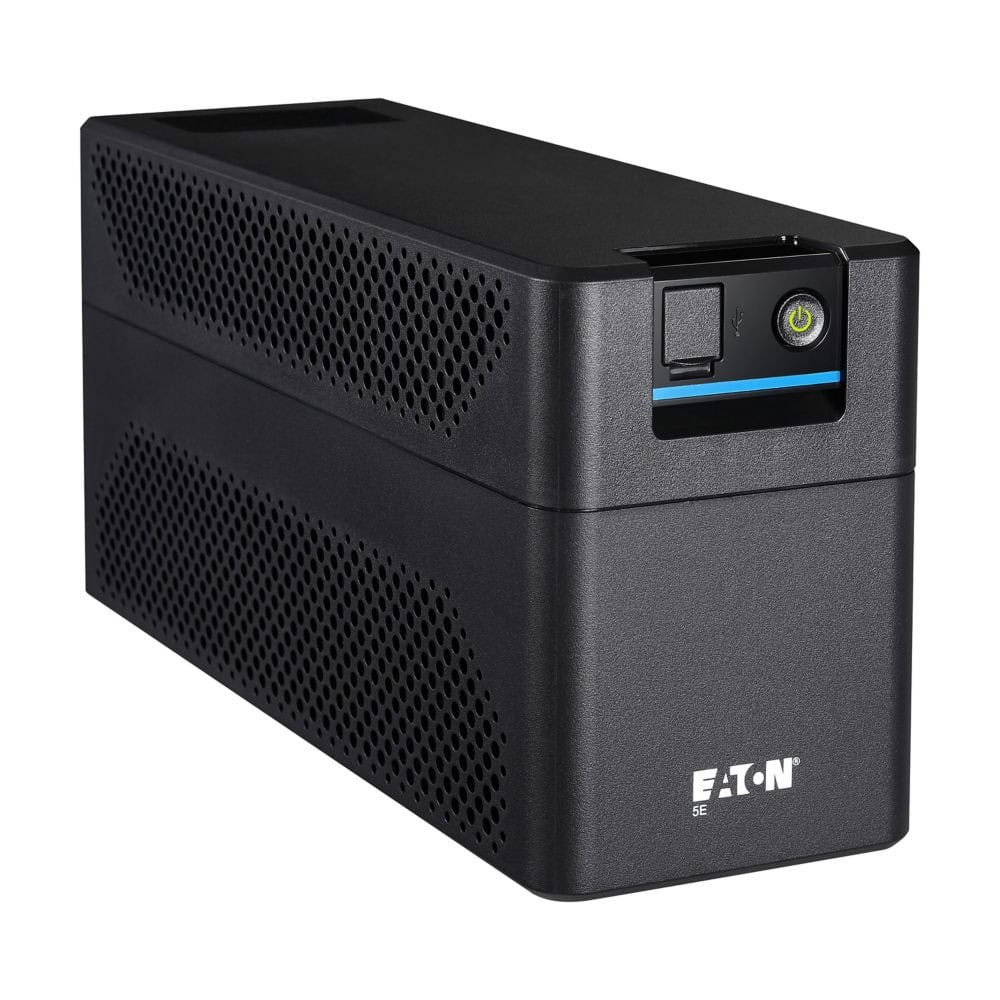

UPS Eaton 5E Gen2 5E700UI, 700VA/360W, Line-Interactive, Tower

Eaton 5E Gen2

The Eaton 5E Gen2 UPS combines proven high performance and quality with affordable pricing to offer cost-effective, reliable protection against power outages and bad power quality. Suitable for home use or for equipment in small business and professional environments, this latest version of our 5E line interactive UPS now also offers national outlets flexibility plus the convenience of permanently recharged batteries (even when off) and the ability to start without mains power (cold start).

Easy application connection and protection
A perfect fit for any local plug type thanks to national outlet formats (4 or 6 IEC and 2 or 4 for FR, DIN/IT, BS). Eaton's 5E Gen2 UPS offers single-product simplicity in multiple residential and commercial environments.

Greater tolerance of grid fluctuations
All kinds of influences can upset grid voltage at any time. Features double-boost line interactive topology (AVR) for wider input voltage window (under and overvoltage: 140 – 300 V) to save battery power in the event of power outage.

Specifications:
Secondary frequency - max
60 Hz
Wattage
360 W
Form factor
Tower
Input connection
C14
Input voltage - min
140 V
Output voltage - max
257 V
Secondary frequency - min
50 Hz
Software compatibility
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery type
Sealed, lead-acid
Efficiency
95
Special features
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
Construction type
Free standing model
Output voltage - min
195 V
Color
Black
Output voltage range
195-257 V
Topology
Line-interactive
Surge protection
Yes
Input nominal voltage
230V default (220/230/240V)
Input frequency range
45-63 Hz
Input voltage - max
300 V
Voltage type
AC
Phase (output)
1
Battery management
Automatic battery test, deep-discharge protection, cold-start capable
Auto shutdown function
Yes
Number of Outputs C13
4
Operating temperature - min
0 °C
VA rating
700 VA
Receptacle
(4) C13
Phase (input)
1
Feed type
1
Runtime graph
View runtime graph
User interface
LEDs
Battery quantity
1
Operating temperature - max
40 °C
Voltage
230V
Temperature range
0° to 40°C (32° to 104°F)
Communication
USB port (HID compliant)
Relative humidity
0-90% non-condensing
Output apparent power
700 VA
Output frequency
50/60 Hz
Type of interface
USB
Primary frequency - min
45 Hz
Battery rating
12 V / 7 Ah
Type
UPS
Output nominal voltage
230V
Input voltage range
140-300 V
Nominal frequency
50/60 Hz
Primary frequency - max
63 Hz
