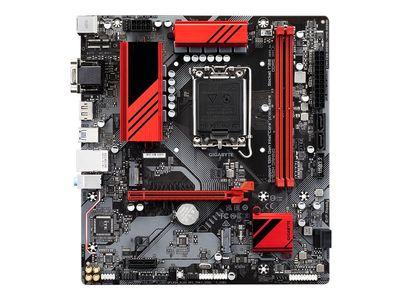

Name: Дънна платка Gigabyte B760M GAMING - 1.0 - motherboard - micro ATX - LGA1700 Socket - B760
Availability: OutOfStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Micro ATX
Chipset Type	Intel B760
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed	5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Processor Socket	LGA1700 Socket
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	2 DIMM slots
Интерфейси
Internal Interfaces	1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	Intel Extreme Memory Profiles (XMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size	96 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio	High Definition Audio (8-channel)
Работа в мрежа
Network	2.5 Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 2 x M.2 socket (2280 M.2 Key M slot), 2 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 2 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB-C 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)	1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)	2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software Included	GIGABYTE Control Center, Norton Internet Security (OEM Version)
Размери и Тегло
Width	24,4 cm
Depth	22,5 cm
