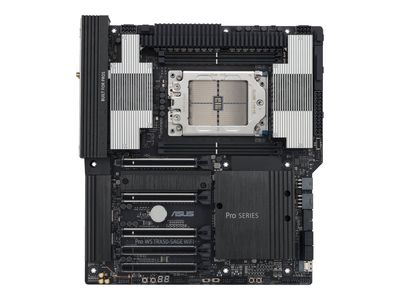

Дънна платка ASUS PRO WS TRX50-SAGE WIFI - motherboard - SSI CEB - Socket sTR5 - Amd TRX50
Икона в кампания

Дънна платка ASUS PRO WS TRX50-SAGE WIFI - motherboard - SSI CEB - Socket sTR5 - Amd TRX50

id s2595359
  • Наличност: Не е наличен
    Продукта вече не се предлага Абонирай се за бюлетина
    Описание
    Общи Характеристики
    Packaged Quantity1
    Процесор
    Installed Qty0
    Max Supported Qty1
    Дънна платка
    Form FactorSSI CEB
    Chipset TypeAmd TRX50
    Supported RAM TechnologyDDR5 SDRAM
    Supported RAM Integrity CheckECC
    Processor SocketSocket sTR5
    Power Connectors2 x 24-pin main power connectors, 8-pin PCI Express power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector
    Supported RAM (Registered or Buffered)Registered
    RAM Slots4 DIMM slots
    Интерфейси
    Internal Interfaces1 x USB-C 3.2 Gen 2x2 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x Thunderbolt - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
    RAM
    FeaturesFour DDR channels
    Видео изход
    TypeGraphics adapter (CPU required)
    Аудио изход
    TypeSound card
    Compliant StandardsHigh Definition Audio
    Audio CodecRealtek ALC1220P
    AudioHigh Definition Audio
    Работа в мрежа
    Network ControllerMarvell AQtion / Intel I226-LM
    Network2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 10 Gigabit Ethernet
    Слотове за разширение
    Expansion Slots1 x CPU, 1 x M.2 socket (2280 M.2 Key M slot), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 1 x PCIe 5.0 x16 (x8 mode), 2 x PCIe 5.0 x16, 4 x DIMM 288-pin, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode)
    Интерфейси
    Storage InterfacesPCIe 4.0 -connectors: 1 x SlimSAS, PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
    StorageSlimSAS slot, Serial ATA-600 (RAID), M.2 socket
    USB / FireWireUSB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
    Storage Ports4 x SATA-600 (RAID), 3 x M.2, 1 x SlimSAS
    USB / FireWire Ports Configuration (Active)1 x USB-C 3.2 Gen 2x2 + 6 x USB 3.2 Gen 2 + 2 x USB 2.0
    USB / FireWire Ports Configuration (Headers)1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
    Софтуер
    Software IncludedASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial), ASUS CPU-Z
    Размери и Тегло
    Width30,5 cm
    Depth28 cm
