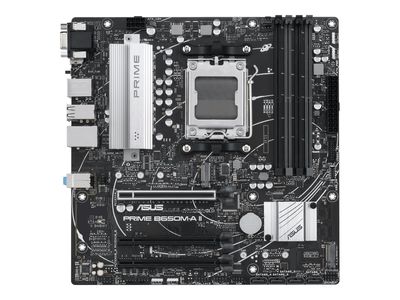

Name: Дънна платка ASUS PRIME B650M-A II-CSM - motherboard - micro ATX - Socket AM5 - AMD B650
Availability: OutOfStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Micro ATX
Compatible Processors	Ryzen
Chipset Type	AMD B650
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC, ECC, On-die ECC
Supported RAM Speed	5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 7600 MHz (O.C.)
Processor Socket	Socket AM5
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 1 x speaker - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	AMD EXPO technology, Dual channel memory architecture
Max Supported Size	192 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio	High Definition Audio (8-channel)
Работа в мрежа
Network	2.5 Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x PCIe 4.0 x16 (x1 mode), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)	2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0
Софтуер
Software Included	Norton AntiVirus (Trial), ASUS AURA Creator, ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 2+, ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR
Размери и Тегло
Width	24,4 cm
Depth	24,4 cm
Обслужване и поддръжка
Type	3-year warranty
