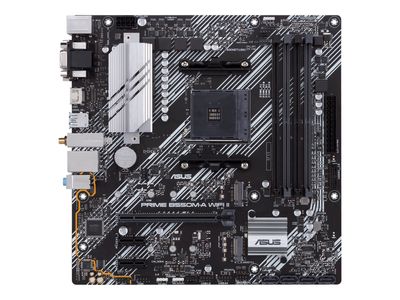

Дънна платка ASUS PRIME B550M-A WIFI II - motherboard - micro ATX - Socket AM4 - AMD B550
Описание
Общи Характеристики
Packaged Quantity1
Процесор
Installed Qty0
Max Supported Qty1
Дънна платка
Form FactorMicro ATX
Compatible ProcessorsRyzen
Chipset TypeAMD B550
Supported RAM TechnologyDDR4 SDRAM
Supported RAM Integrity CheckNon-ECC, ECC
Supported RAM Speed4800 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 4466 MHz (O.C.), 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.)
Processor SocketSocket AM4
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)Unbuffered
RAM Slots4 DIMM slots
Интерфейси
Internal Interfaces1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 1 x speaker - header, 2 x USB 3.2 Gen 1 - header
RAM
FeaturesDual channel memory architecture
Max Supported Size128 GB
Видео изход
TypeGraphics adapter (CPU required)
Аудио изход
TypeSound card
Compliant StandardsHigh Definition Audio
AudioHigh Definition Audio (8-channel)
Работа в мрежа
Network802.11a/b/g/n/ac/ax, Bluetooth 5.2, Gigabit Ethernet
Слотове за разширение
Expansion Slots1 x CPU, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 5000 G-Series / 4000 G-Series CPUs)), 4 x DIMM 288-pin, 2 x PCIe 3.0 x1
Интерфейси
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, SATA-600 / PCIe 4.0 -connectors: 1 x M.2
StorageSerial ATA-600 (RAID), M.2 socket
USB / FireWireUSB 3.2 Gen 1, USB 3.2 Gen 2
Storage Ports4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1
USB / FireWire Ports Configuration (Headers)2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software IncludedNorton AntiVirus (Trial), ASUS AURA Creator, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, Drivers & utilities, ASUS EZ Flash 3, DAEMON Tools, WinRAR
Размери и Тегло
Width24,4 cm
Depth24,4 cm
Обслужване и поддръжка
Type3-year warranty
