Technical specifications
CPU
Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset
AMD A620
Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H
Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* Supports NVMe SSD as boot disks
15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x2 (16 Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
** Requires additional M.2 NVMe expansion cards to support RAID 10
USB
2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection
Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).*
**** CHA_FAN1~3/WP support the fan power up to 2A (24W).*
**** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

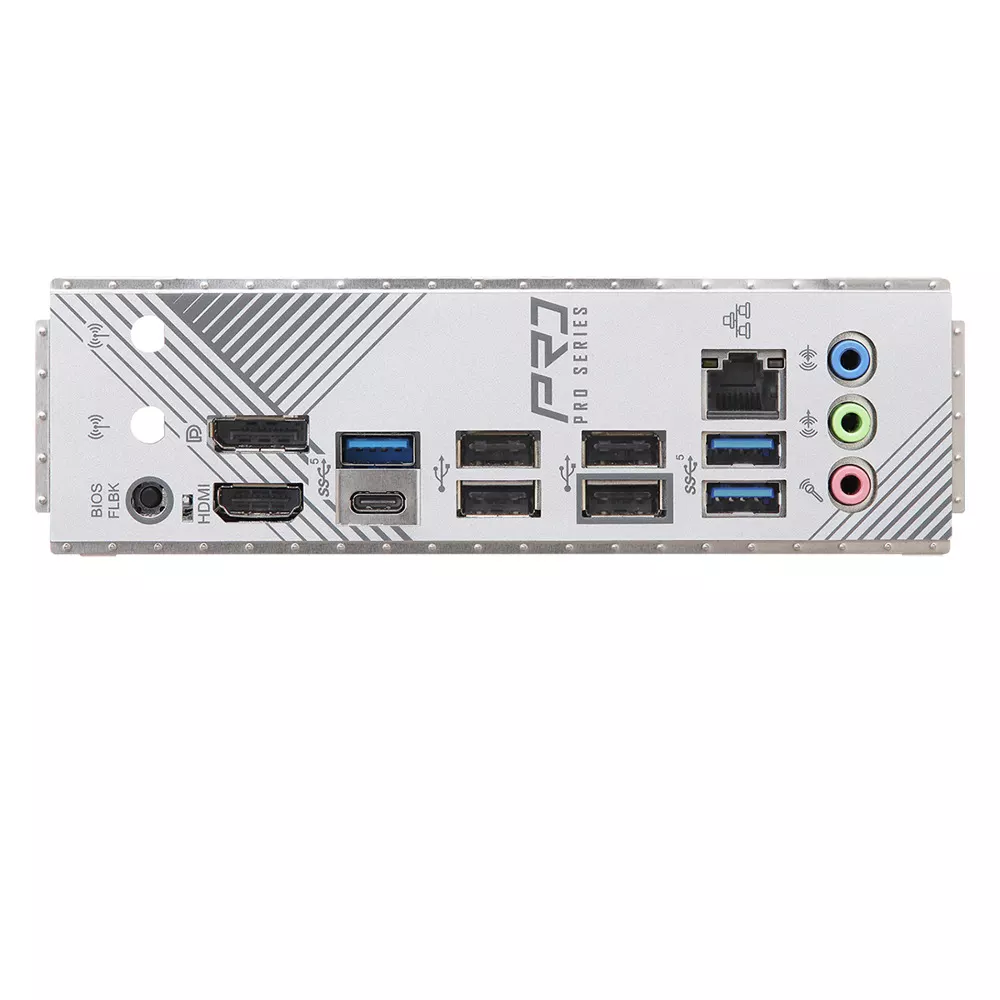

Rear Panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
3 x USB 3.2 Gen1 Type-A Ports
1 x USB 3.2 Gen1 Type-C Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Виж още Дънни платки за AMD процесори ASRock
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
Процесор сокет: | AM5 |
---|---|
Чипсет: | A620 |
Поддържана памет: | DDR5 |
Брой слотове за RAM памет: | 4 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Да |
Безжични мрежи: | Не |
Bluetooth: | Не |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | DP HDMI |
Форм фактор: | Micro ATX |
Видеокарта: | Вградена |
