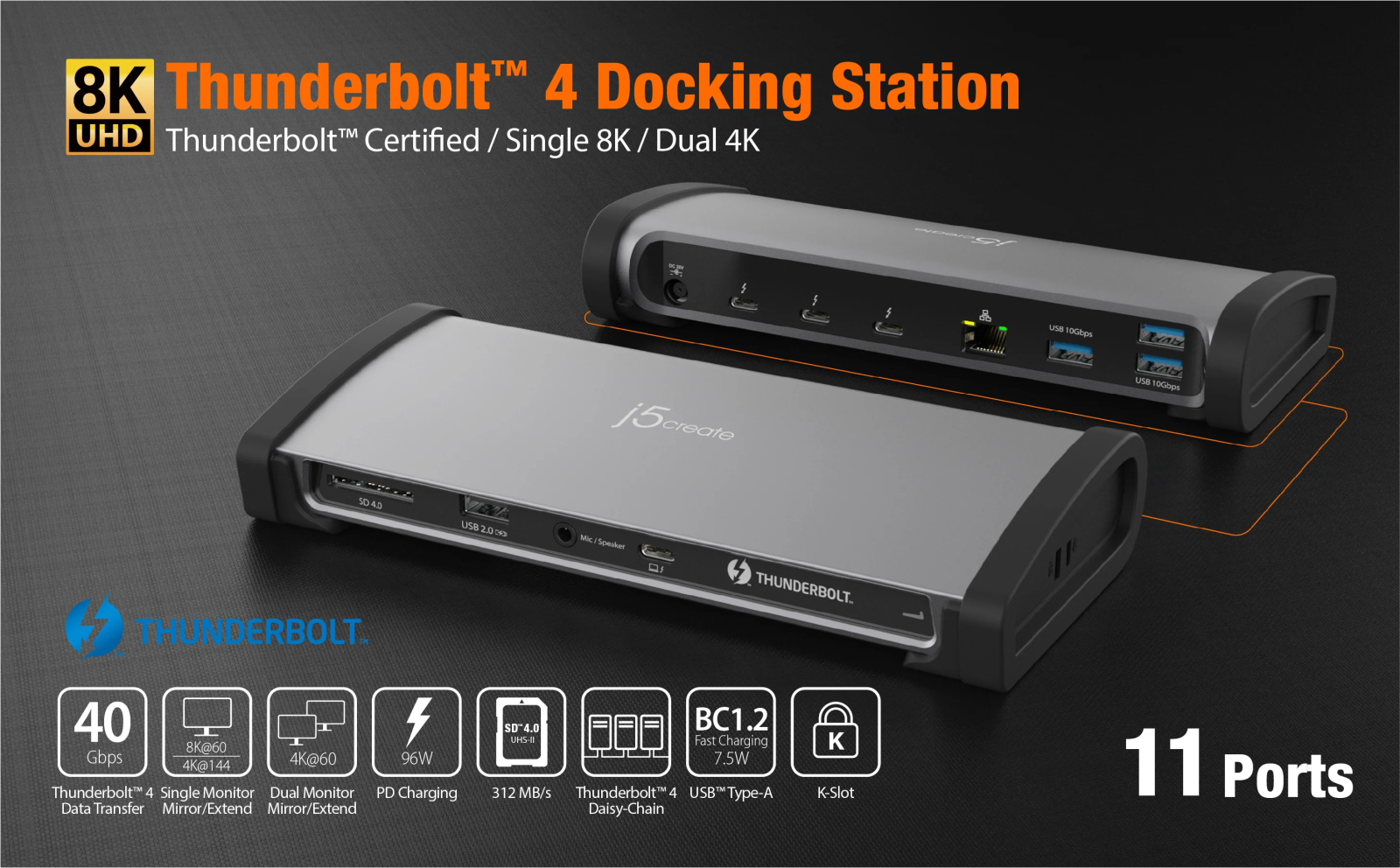

Докинг станция j5create JTD562, от Thunderbolt 4 към 1x USB-C, 3x USB-C (Thunderbolt 4), 4x USB-A, 1x AUX, 1x RJ45, 1x SD четец, сива

11-in-1 Functions

Maximize productivity with 11-in-1 functions

High Quality Video Experience with 8K 60Hz Resolution

Increase Productivity with Dual 6K 60Hz Display

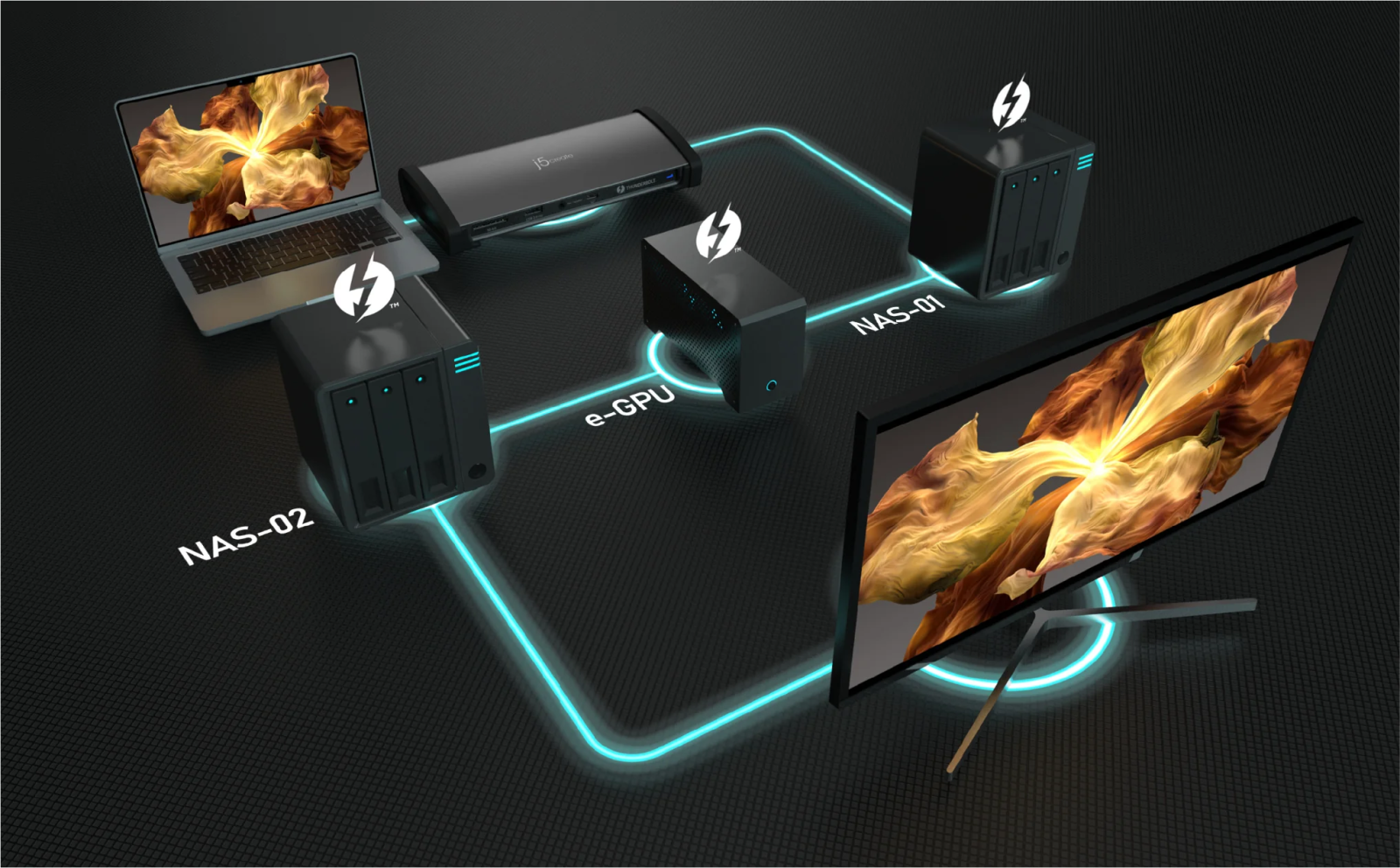

Thunderbolt Daisy Chain Support

Equipped with 3 Thunderbolt 4 ports with 40Gbps ultra-high speeds and let you create 3 separate daisy chains.

Extreme Speed of 40Gbps for Maximum Performance

Large files, such as videos or images, can be transferred in seconds.

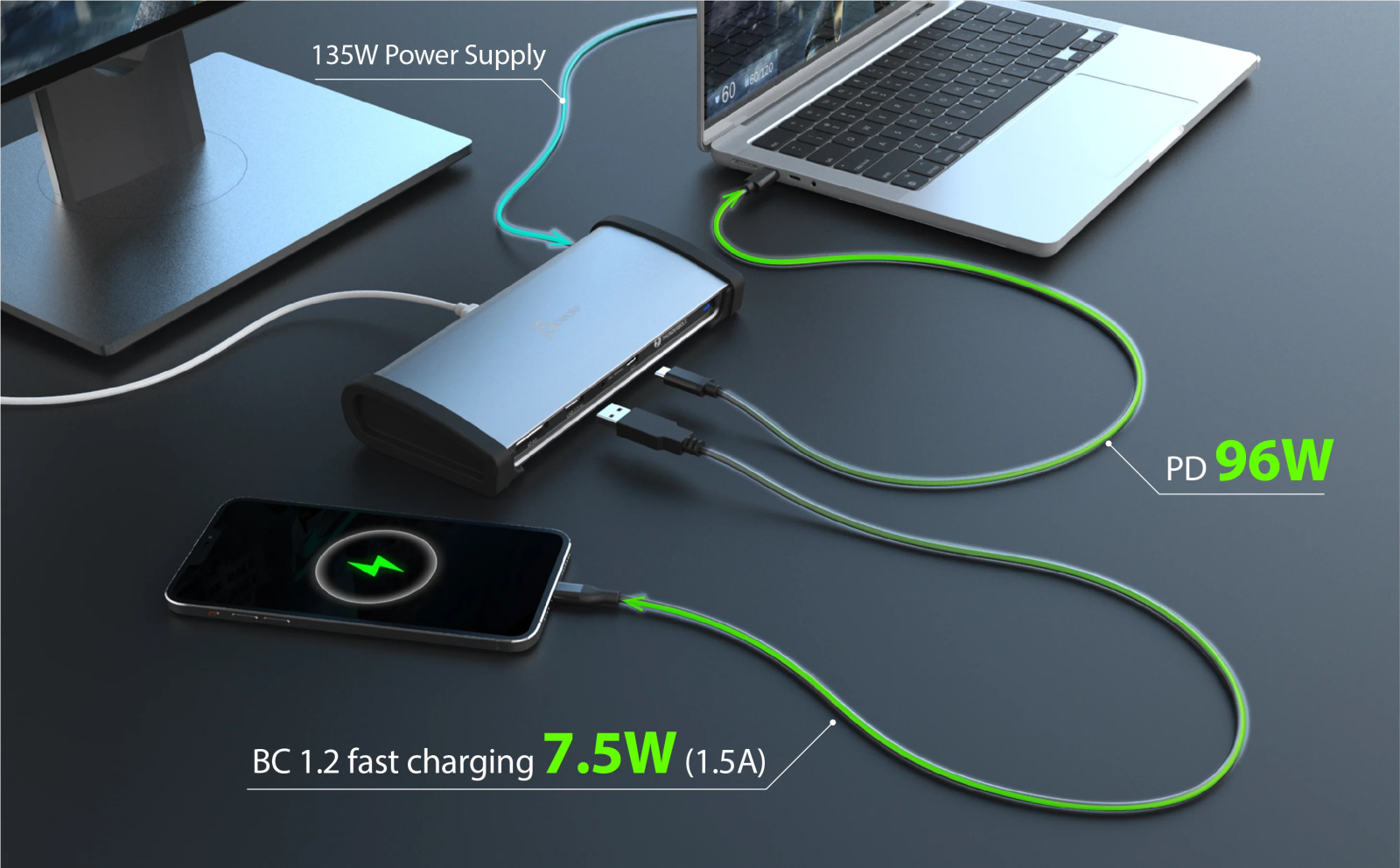

High-Speed Charging

PD 96W and USB BC1.2 quick-charging capabilities for your laptop and mobile device.

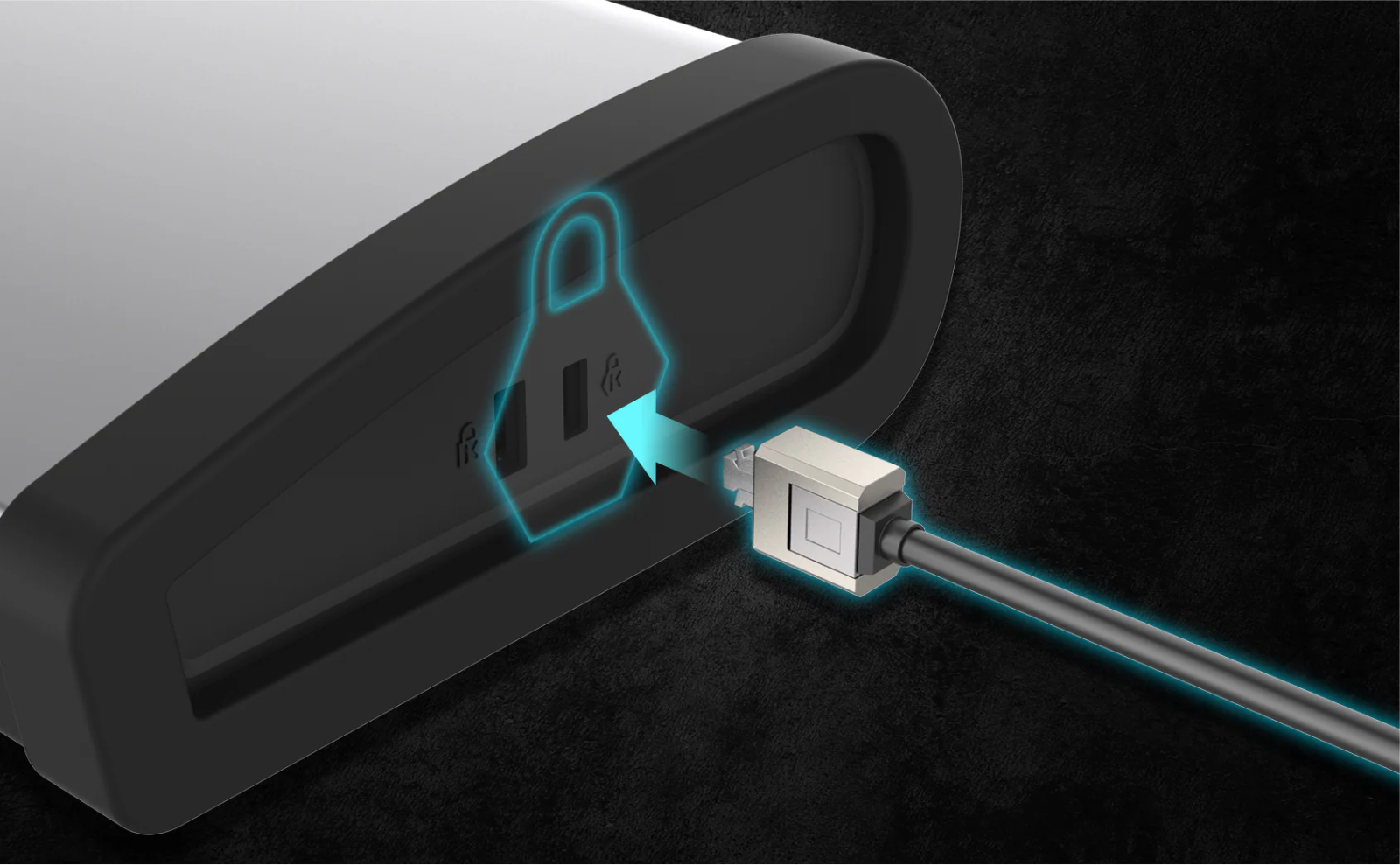

Anti-Theft Protection

Security slot to prevent equipment theft in a wide range of business or institutional environments.

Specifications



Hardware
audio supported
Yes

host connector

1 - Thunderbolt 4 Female

network interface
RJ45 (Gigabit Ethernet)

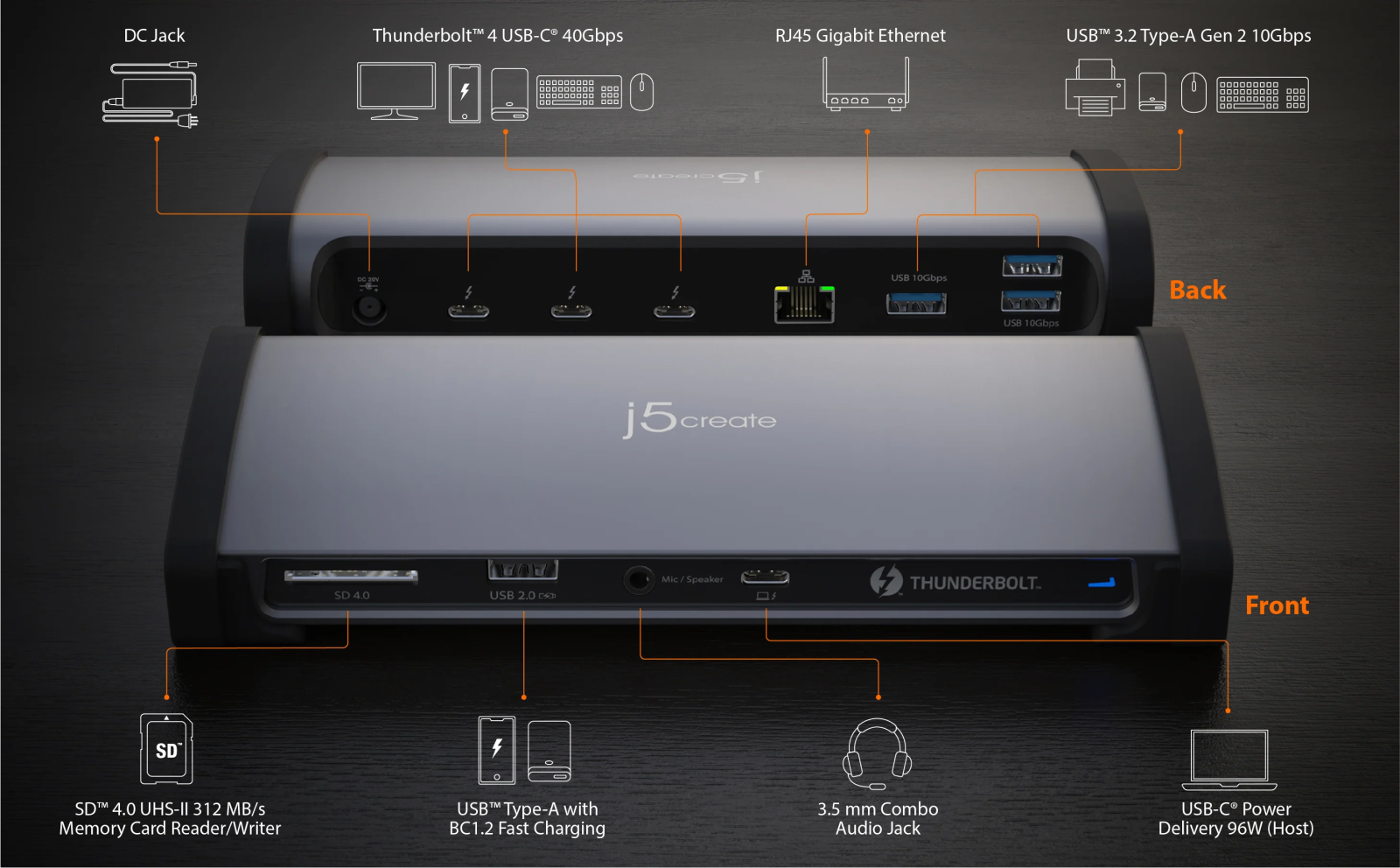

ports

1 - USB-C Power Delivery 96W (Host)

3 - Thunderbolt 4 USB-C 40Gbps

3 - USB 3.2 Type-A Gen 2 10Gbps

1 - USB 2.0 Type-A with BC1.2 fast charging

1 - SD 4.0 UHS-II 312 MB/s memory card reader/writer

1 - 3.5 mm combo audio jack

1 - RJ45 Gigabit Ethernet

power source
Self-powered

video output

3 - Thunderbolt™ 4 Female

Performance
audio channel
3 -Thunderbolt™ 4 / 3.5 combo audio jack

compatible networks
10/100/1000 Base-T, auto-negotiating

displays supported

2

max data transfer rate

40Gbps

max display refresh rate

60 Hz via Thunderbolt 4

max display resolution

Thunderbolt™ Mode

2 - 4K @ 60 Hz

1 - 4K @ 120 Hz (Via DP™)

1 - 4K @ 144 Hz (with DSC)

1 - 8K @ 30 Hz

1 - 8K @ 60 Hz (with DSC)

MFDP Mode (Base on HBR3 Host)

1 - 4K @ 60 Hz

Power
input current
2.5A

input voltage
110V-240V

output current
6.75A

output voltage
20V

power consumption
1.2A

power delivery
96W

Physical Specifications
cable length
2.3 ft. / 70 cm

enclosure type
Aluminum

operating humidity
< 85% non-condensing

operating temperature
32 to 118°F (0 to 48°C)

product depth
1.21in./ 30.85 mm

product height
7.64 in./194 mm

product weight
14.5 oz /411g

product width
3.32 in./ 84.39 mm

storage humidity
< 85% non-condensing

storage temperature
14 to 149°F (-10 to 65°C)
