Докинг станция j5create JCD543, от USB-C към 1x USB-C, 3x USB-A, 1x DisplayPort, 2x HDMI, 1x VGA, 1x AUX, 1x RJ45, 1x SD/MicroSD четец, сребриста

j5create JCD543

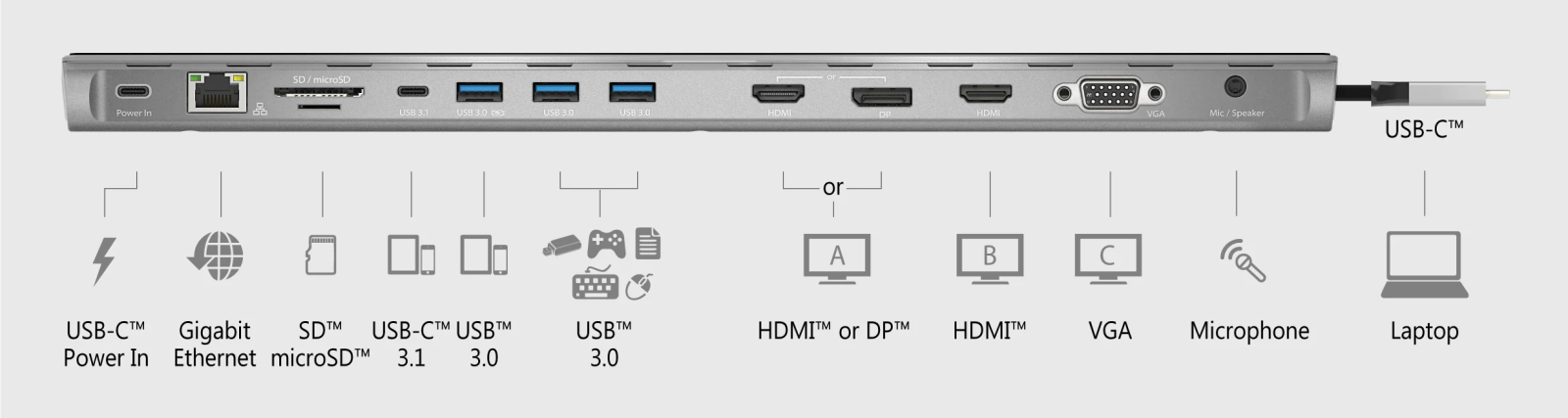

13 ports in one sleek design for all your needs

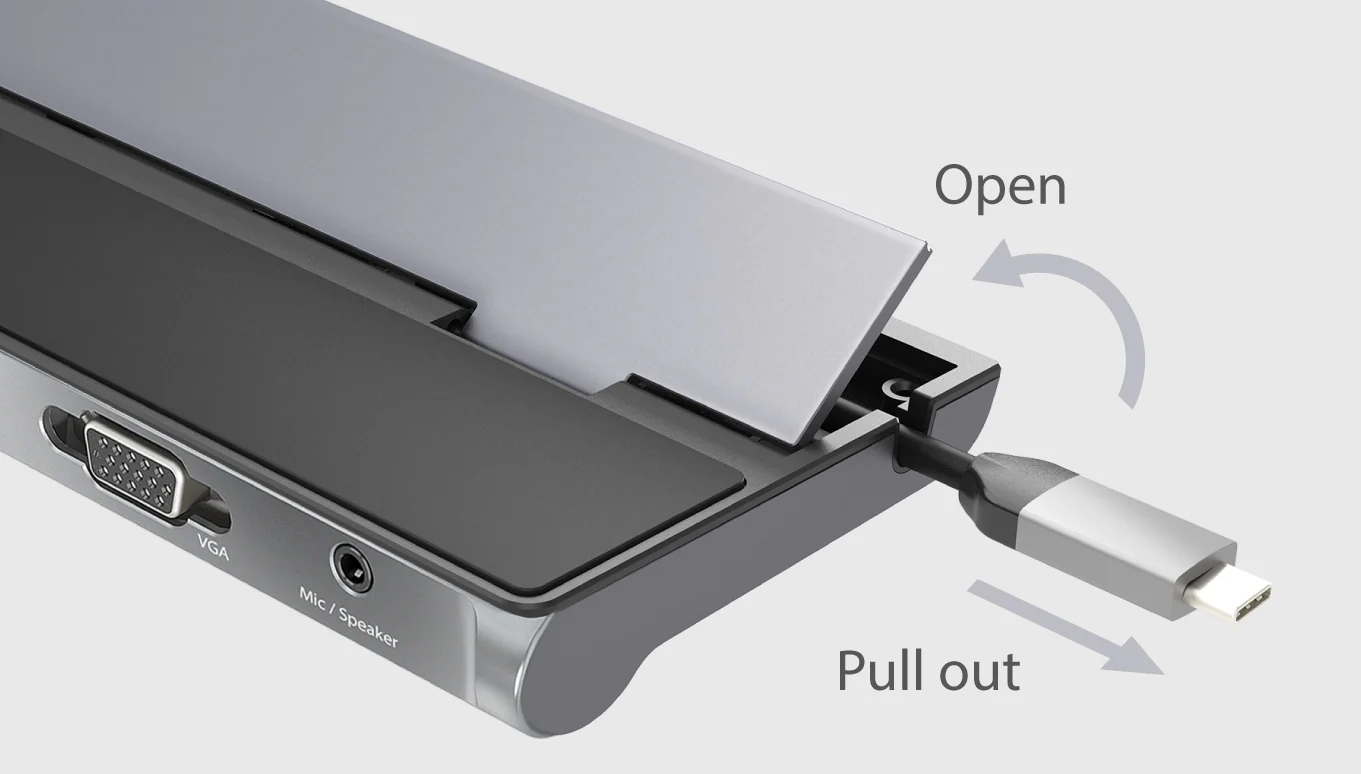

Double Sided Cable Storage Compartment

Place the cable anyway you like

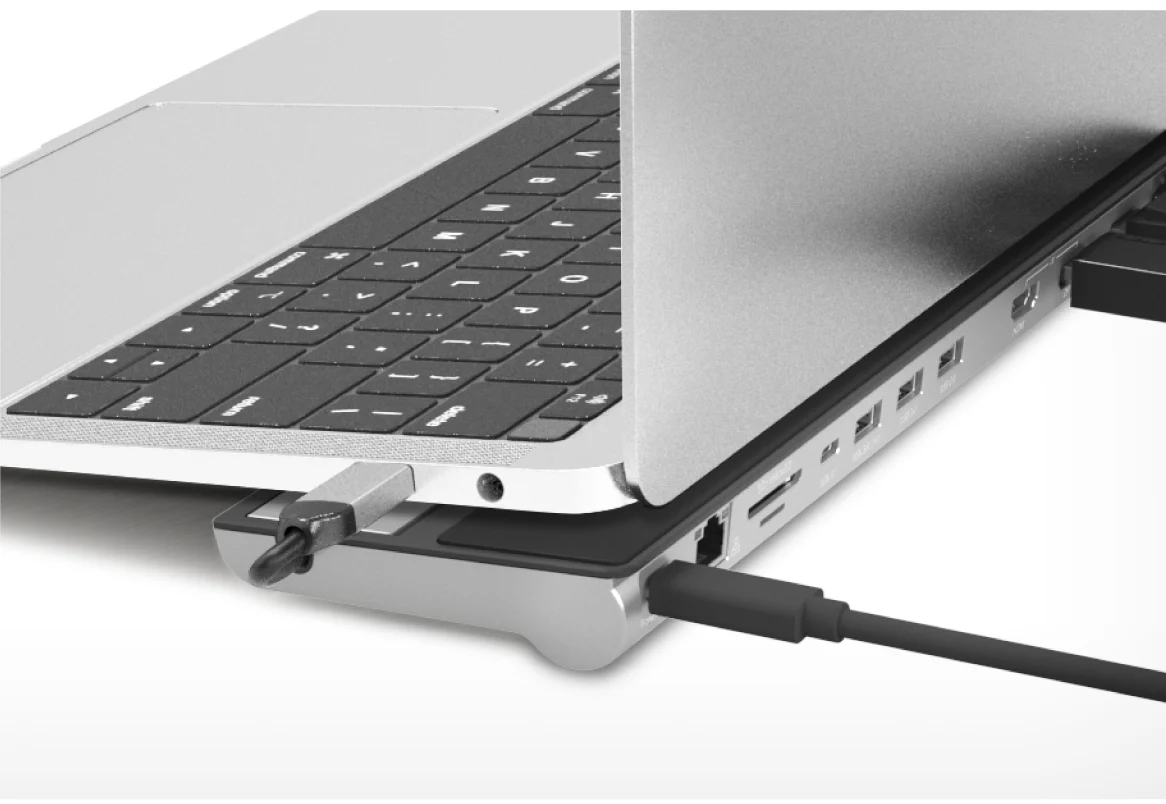

	Cutting-Edge Design The advanced heat-eliminating design makes the JCD543 the perfect solution for expanding any laptop into a full-sized work-station without the worry of overheating.

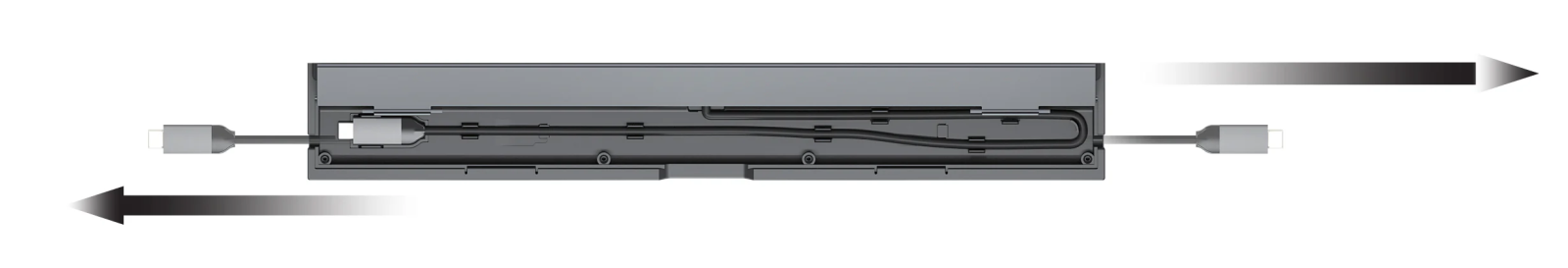

Cable Storage with Dual Openings

Specifications



Hardware
audio supported
Yes

host connector

USB-C™ Male

network interface
RJ45 (Gigabit Ethernet)

ports

   2 - USB™ 3.0 Type-A
   1 - USB™ 3.0 Type-A fast charge
   1 - USB-C™ 3.1 Gen 1
   1 - USB-C™ Power Delivery 3.0
   2 - 4K HDMI™
   1 - DisplayPort™
   1 - VGA
   1 - SD™ & microSD™ memory card reader/writer
   1 - RJ45 Gigabit Ethernet
   1 - 3.5 mm combo audio jack

power source
Bus-powered or Self-powered
video output

   2 - HDMI™ Female
   1 - DisplayPort™ Female
   1 - VGA Female

Performance
audio channel
2.1 via HDMI™/DisplayPort™/3.5 mm Aux

compatible networks
10/100/1000 Mbps

displays supported

3 (HDMI™, VGA and DisplayPort™ or HDMI™)

max data transfer rate

5 Gbps

max display refresh rate

   HDMI™/DisplayPort™ 4K: 30 Hz
   HDMI™/DisplayPort™ 1080p: 60 Hz
   VGA: 60 Hz



max display resolution

   HDMI™/DisplayPort™: 3840 x 2160
   VGA: 1920 x 1080



Power
input current
5A

input voltage
20V

output current
5A

output voltage
20V

power consumption
≤ 900 mA

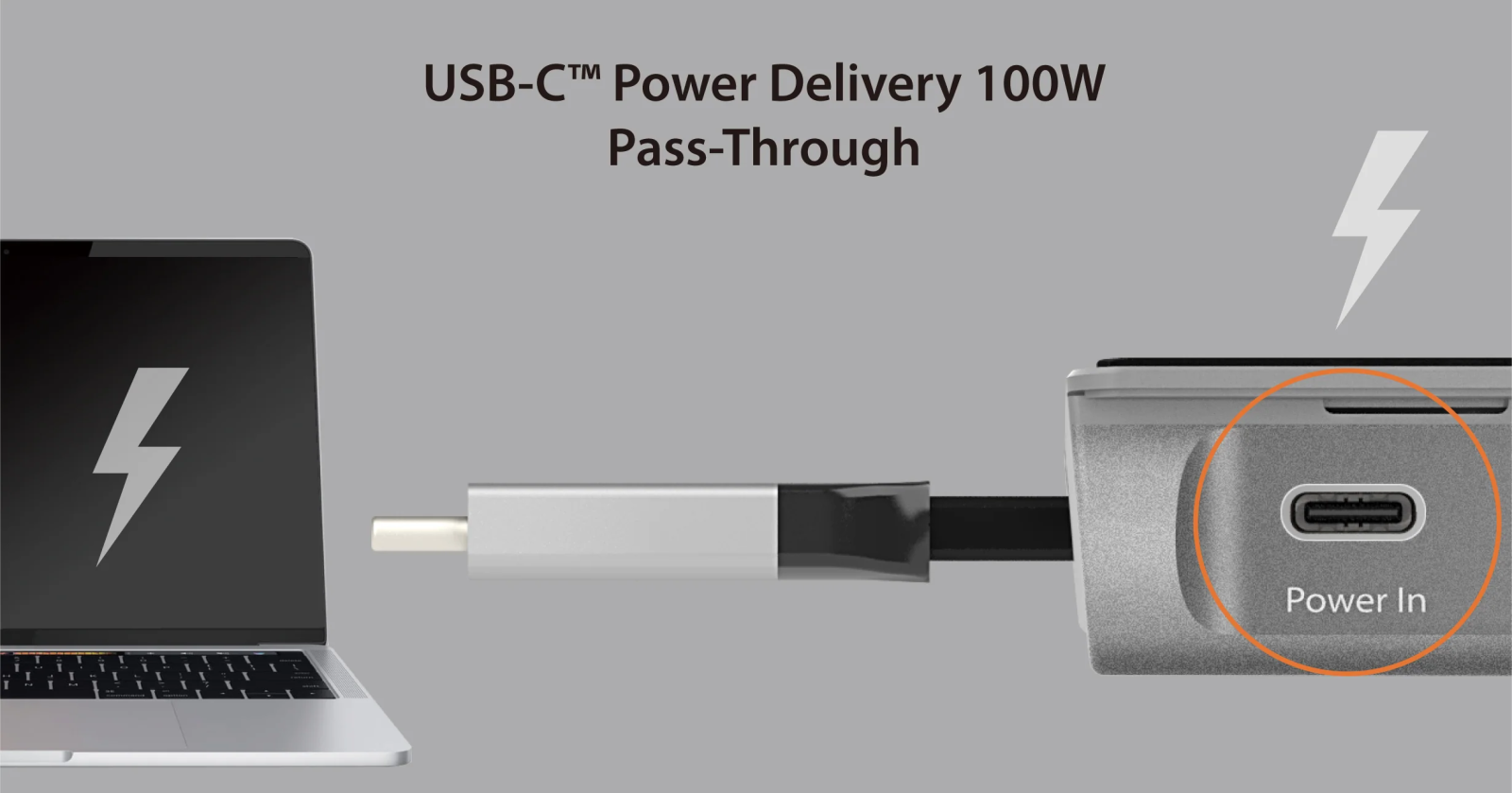

power delivery
Up to 100W via USB-C™

Physical Specifications
cable length
1.48 ft (45 cm)

enclosure type
Aluminum

operating humidity
< 85% non-condensing

operating temperature
32 to 118°F (0 to 48°C)

product depth
13.78 in. (350 mm)

product height
0.92 in. (23.37 mm)

product weight
10.58 oz (300g)

product width
3.25 in. (82.5 mm)

storage humidity
< 85% non-condensing

storage temperature
14 to 149°F (-10 to 65°C)
