8 port USB-C Hub
DS-14

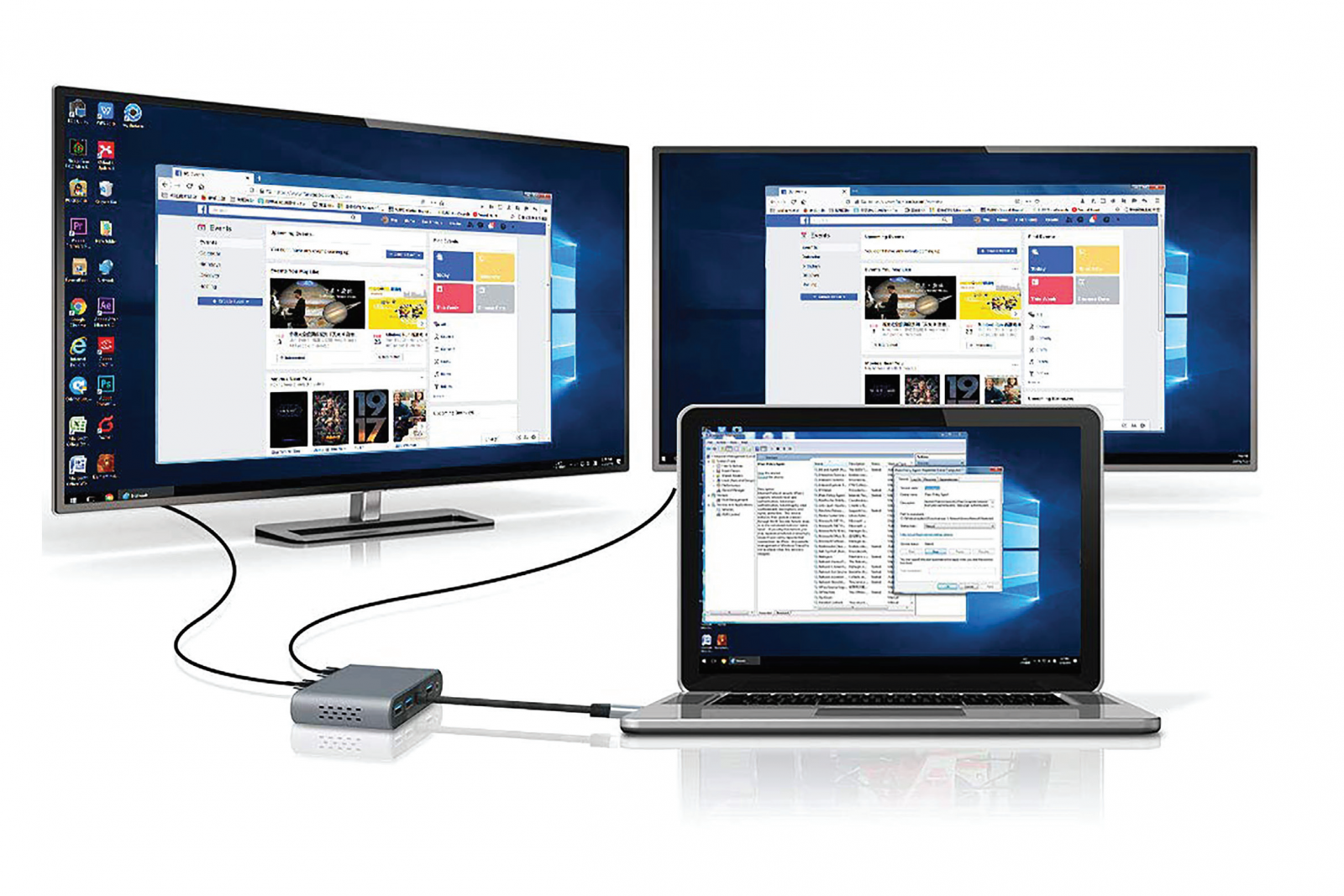

The DS-14 hub turns one USB-C port into eight versatile connectors. You will be able to connect the monitor via HDMI or VGA port. There is a mini-jack for headphones or speakers. Three USB-A 3.0 ports allow you to connect three peripheral accessories at once conveniently. The up to 100W USB-C PD charging port allows you to charge your connected device at optimal speed. You can connect directly to the network via Gigabit Ethernet using the hub. Lightweight and durable aluminum housing helps maintain signal quality. “Plug and Play“ – connect the hub and work without installing additional software. The hub will take up minimal space in your bag due to its compact size. The perfect combination of size and functionality!

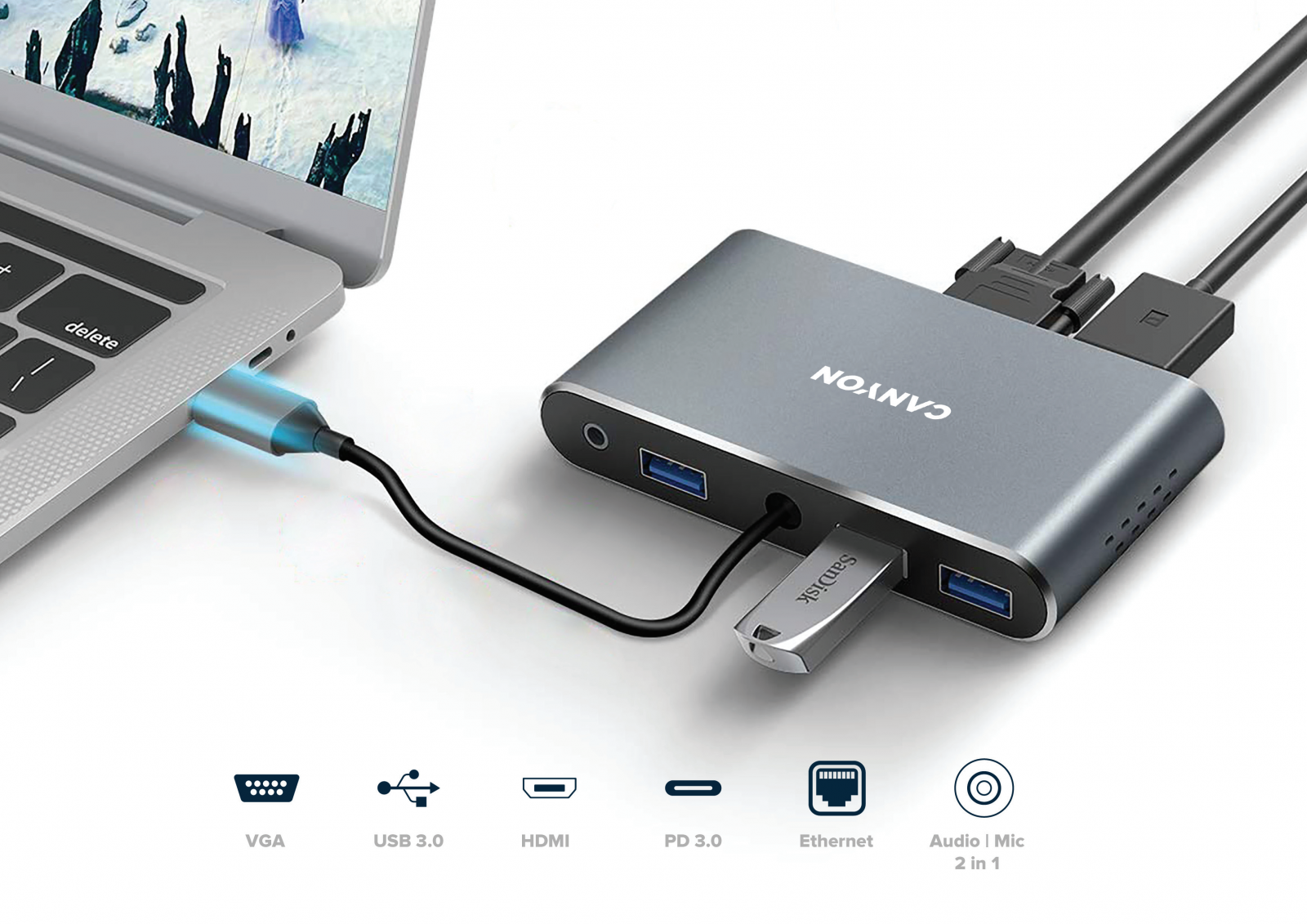

- 8 ports
- Ethernet 1000 Mbps
- 4K Ultra HD
- 3 х USB-A 3.0
- VGA data transmission

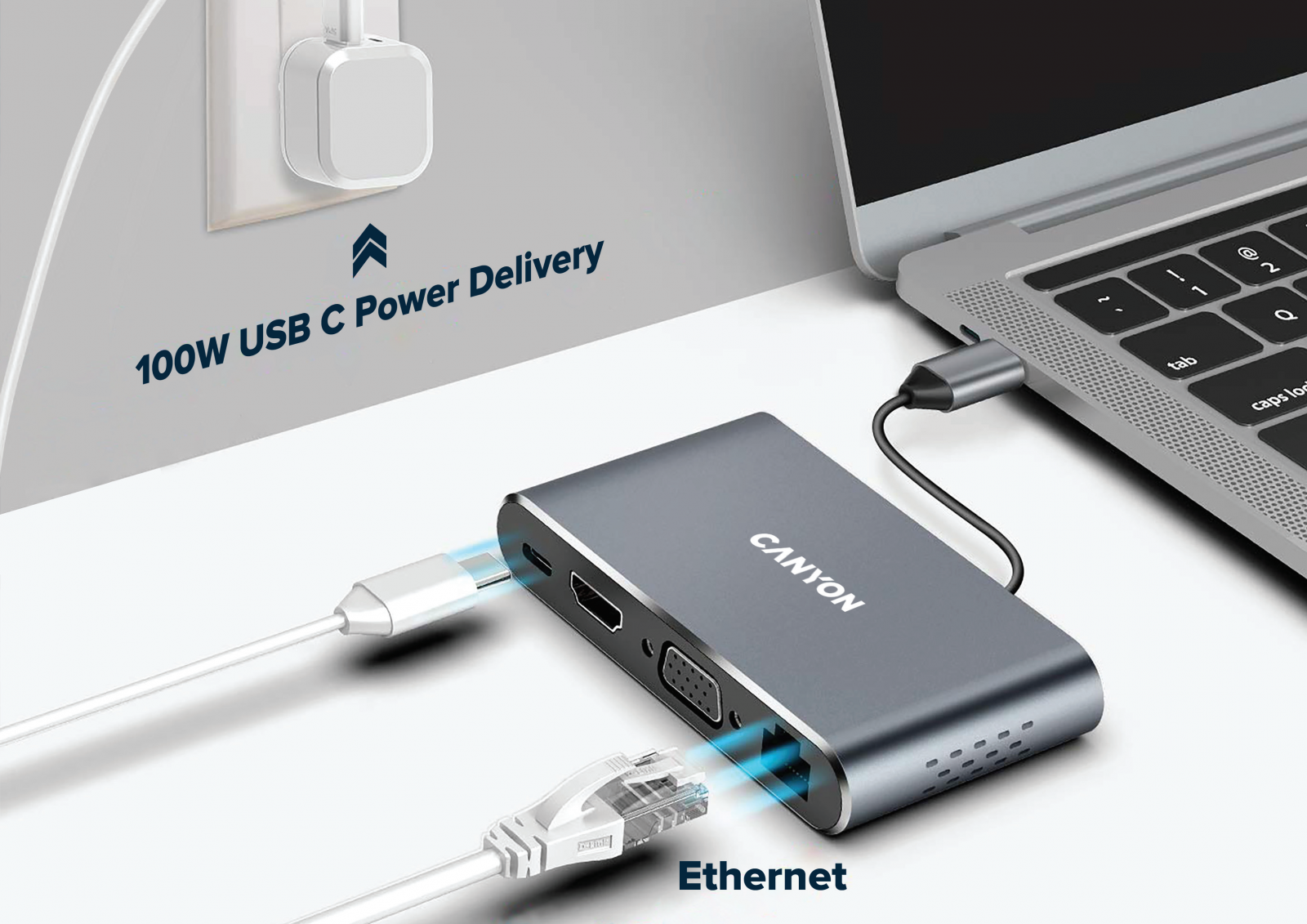

- USB-C PD charging, 100W
- 3.5 mm audio jack, support audio output
- Aluminum housing
- “Plug and Play”
- Compatible with Mac OS, Windows OS
| Article | |
| CNS-TDS14 | Dark Gray |
| TECHNICAL SPECIFICATIONS | |
| Interface | USB-C |
| Ports | USB, Gigabit Ethernet, Audio-In, HDMI |
| Gigabit Ethernet | Network support 10/100/1000 Mbps |
| Charging port | USB-C PD, max. 100 W |
| Housing material | Aluminum |
| Cable length | 0.18 m |
| Connection method | “Plug and Play”, “Hot Swap” mode |
| Compatibility | Mac ОС, Windows OС |
| INTERFACES | |
| HDMI | x1 HDMI (Type A), 4K*30 Hz / 1080P*60 Hz |
| LAN | х1 RJ-45 |
| USB | x1 USB Type-C |
| USB 3.0 | x3 USB 3.0 (Type A), transfer speed up to 5 Gbps max. |
| VGA | x1 15-pin D-sub |
| Audio interface | x1 3.5 mm audio jack, supports sound output |
| DIMENSIONS & WEIGHT | |
| Width | 17.6 mm |
| Height | 55 mm |
| Depth | 95 mm |
| Rated weight | 107 g |
| Compatibility | |
| Device Compatibility | Please ensure that your device is equipped with a Full Feature USB type-C port that supports all functions: video, audio, data transferring, PD charging. Otherwise, some functions may not work. |
| Connecting up to 3 external displays to devices based on Apple M1 | 1 external display - mirroring and extended desktop modes 2 and 3 external displays - only mirroring mode between external screens |
Виж още Докинг станции Canyon
Виж всички Докинг станции в категорията
Документация
DatasheetТехнически характеристики
| USB Type-А: | Да |
|---|---|
| USB Type-C: | Да |
| USB 3.X: | Да |
| HDMI: | Да |
| VGA (D-Sub): | Да |
| RJ45: | Да |
| Тип: | Laptop |
|---|---|
| Съвместимост: | Универсална |
| От какъв интерфейс: | USB C |
