Водно охлаждане за процесор DeepCool LT520 WH, съвместимост със сокети Intel LGA 1700/1200/1150/1151/1155/2066/2011-3/2011 & AMD sTRX4/sTR4/AM5/AM4

DeepCool LT520 WH

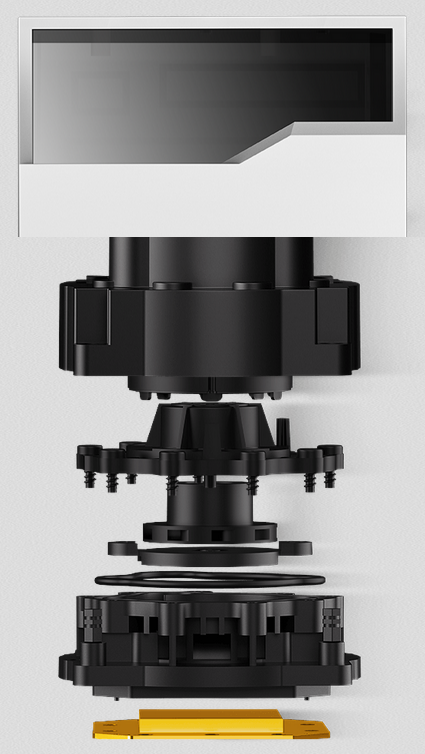

A new era of deepcool Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:   Improved microchannel design ensures optimal coolant flow.   Powerful three-phase drive motor up to 3100 RPM.   Thick solid copper base with a seamless match.

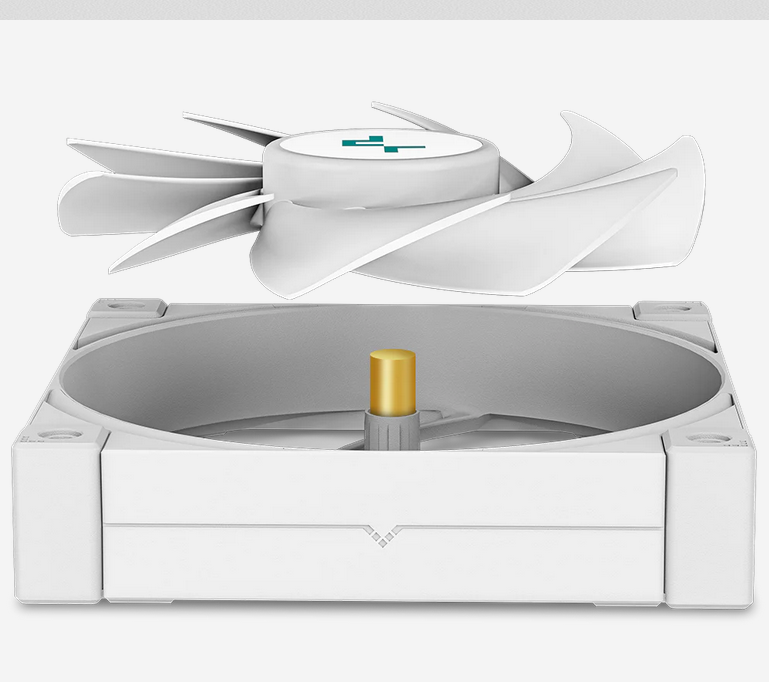

Extremely powerful   Maximize cooling potential with white DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long-term reliability.   500-2250 RPM Dynamic PWM Range   85.85 CFM Supreme Airflow   3.27 mmAq High Static Pressure   ≤32.9 dB(A) Full Load Noise

Application For:

Intel

LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD

sTRX4/sTR4/AM5/AM4

Technical Specifications

Radiator Dimensions

282×120×27 mm(L×W×H)

Radiator Material

Aluminum

Tube length

410 mm(L×W×H)

Pump Dimensions

94×80×68 mm(L×W×H)
Pump Speed

3100 RPM±10%

Pump Noise

19 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.38 A

Pump Power Consumption

4.56 W

Fan Dimensions

120×120×25 mm(L×W×H)

Fan Speed

500~2250 RPM±10%

Fan Airflow

85.85 CFM

Fan Air Pressure

3.27 mmAq

Fan Noise

≤32.9 dB(A)

Fan Speed (with LSP)

500~1600 RPM±10%

Fan Airflow (with LSP)

60.85 CFM

Fan Air Pressure (with LSP)

1.65 mmAq

Fan Noise (with LSP)

≤28.2 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.22 A

Fan Power Consumption

2.64 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

3.15 W（PUMP
