LS520 WH

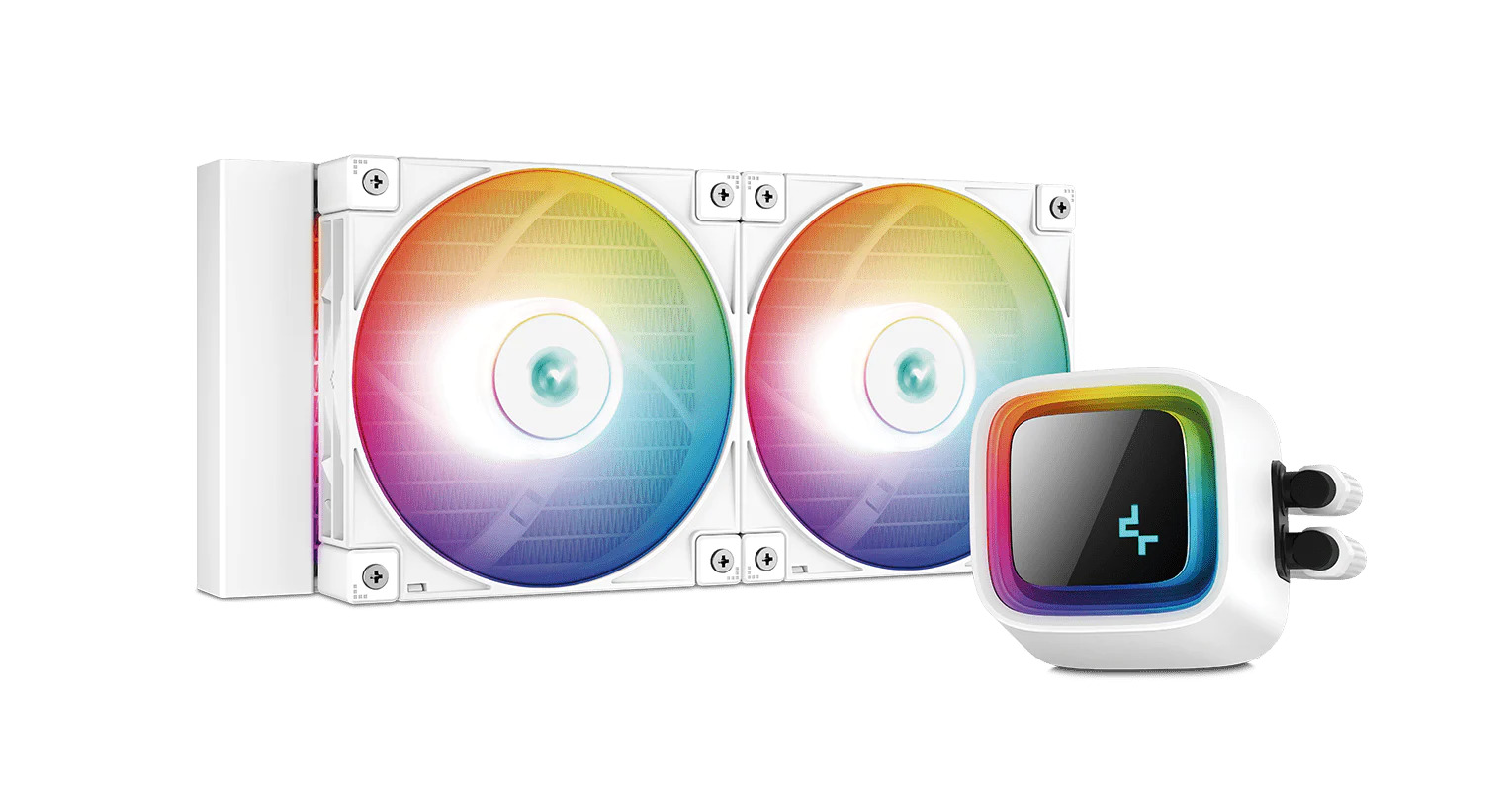

The DeepCool LS520 WH premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
A New Era of DeepCool

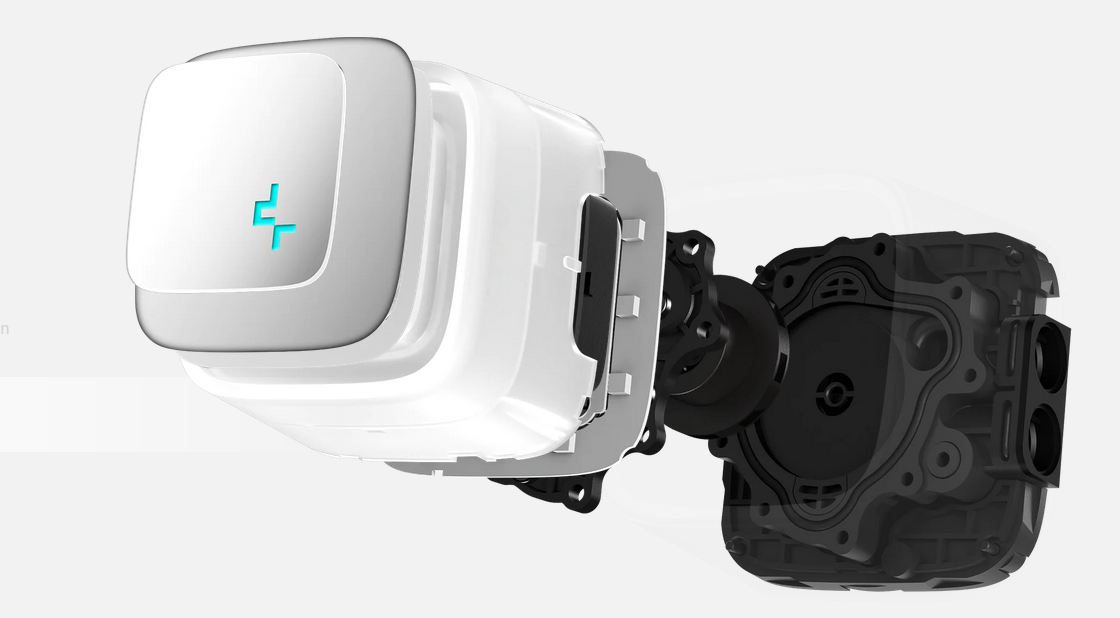

Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1. Improved microchannel design
ensures optimal coolant flow.
ensures optimal coolant flow.
2. Powerful three-phase drive
motor up to 3100 RPM.
motor up to 3100 RPM.
3. Thick solid copper base
with a seamless match.
with a seamless match.
Cool and Quiet

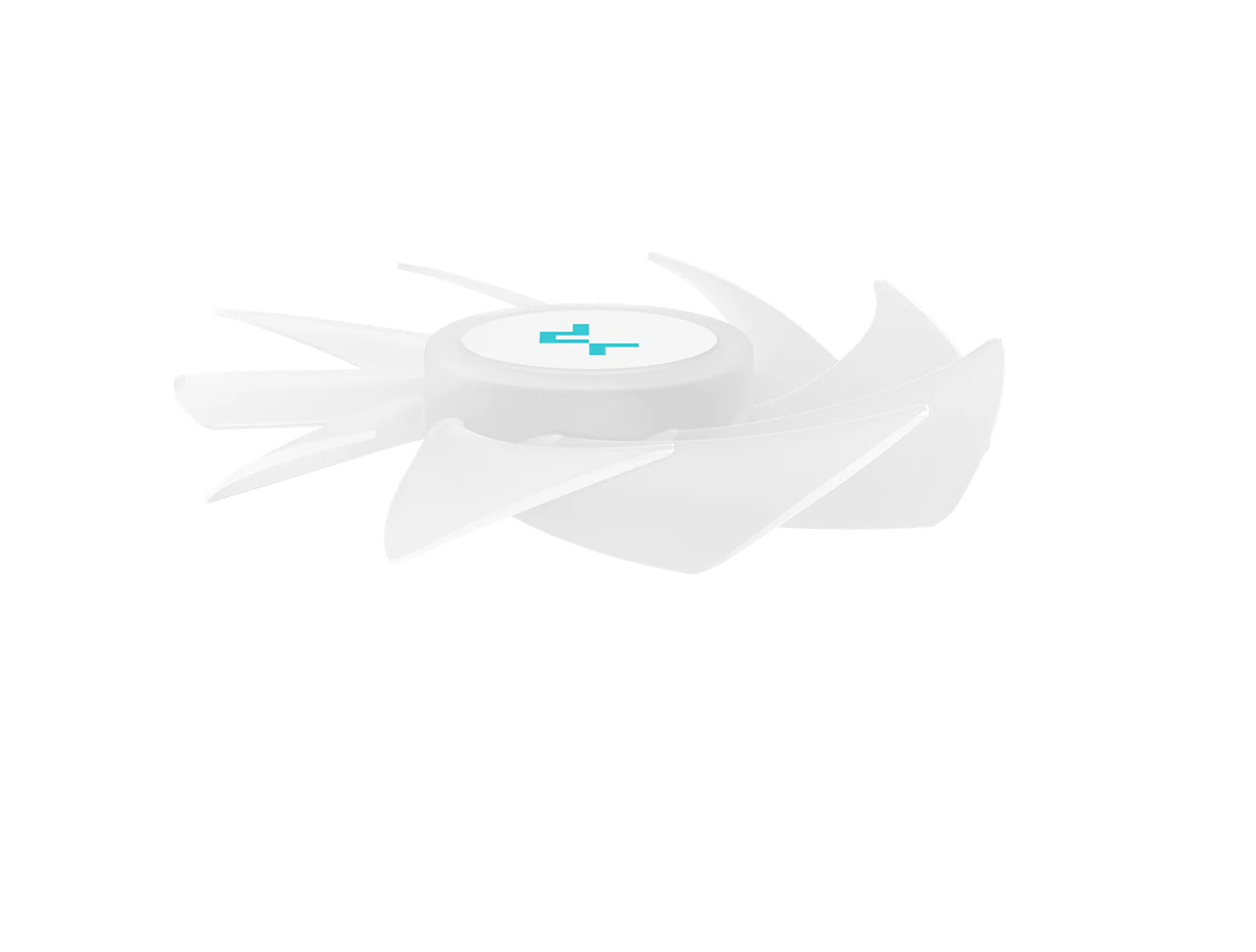

Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
500~2250 RPM *
Dynamic PWM Range
85.85 CFM
Supreme Airflow
≤32.9 dB(A)
Full Load Noise
50,000 Hours
Long Operational Lifespan
Customize Your Look

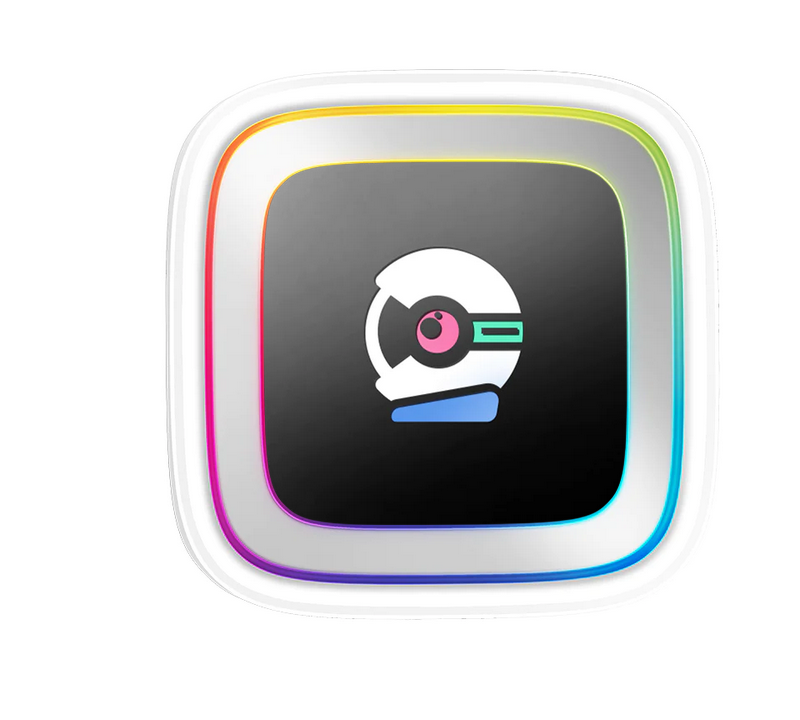

The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
| Net Weight | 1305 g |
| Radiator Dimensions | 282×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
| Pump Dimensions | 86×74×57 mm |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.47 A |
| Pump Power Consumption | 5.64 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.29 A |
| Fan Power Consumption | 3.48 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.2 W（PUMP）/ 3.6 W（FAN×2） |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Процесори Охладители DeepCool
Виж всички Процесори Охладители в категорията
Технически характеристики
| Процесор сокет: | Intel / AMD |
|---|---|
| Водно охлаждане: | Да |
