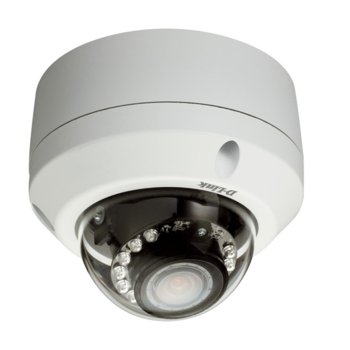

IP камера D-Link DCS-6314, куполна камера, 2 Mpix(1920x1080@30FPS), 2.8mm обектив, H.264/MPEG-4/MJPEG, IR осветеност (до 15 метра), външна, PoE, Lan100

Camera
Camera Hardware Profile
1/2.8” 2 Megapixel progressive CMOS sensor
15 metre IR illumination distance
Minimum illumination 0.2 Lux / F1.4 Color mode
Minimum illumination 0.05 Lux / F1.4 Black and White mode
Minimum illumination 0 Lux Black and White mode with IR LED on
Built-in Infrared-Cut
Removable (ICR) Filter module
2.8 to 12mm variable focal lens
Aperture F1.4
Angle of view (16:9)
(H) 96.5° ~ 31.2°
(V) 64.5° ~ 17.8°
(D) 117.5° ~ 36.8°

Camera Housing
IP-68 compliant weatherproof housing
IK-10 compliant vandal-proof housing
Included weather shield

Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable privacy mask zones
Configurable exposure time, brightness, saturation, contrast, contrast, sharpness.

Video Compression
Simultaneous H.264/MPEG-4/MJPEG format compression
H.264/MPEG-4 multicast streaming
JPEG for still images

Video Resolution
16:9 - 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps

Audio Support
G.726
G.711

External Device Interface
10/100 BASE-TX Ethernet port with PoE
1 DI / 1 DO
DC12 V, 100 mA Output
micro SD/SDHC card Slot
Audio input / output

Network
Network Protocols
IPv6
IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP filtering
QoS
CoS
Multicast
ONVIF compliant

Security
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption

System Management
System Requirements for Web Interface
Browser: Internet Explorer, Firefox, Chrome, Safari

Event Management
Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup

Remote Management
Take snapshots/video clips and save to local hard drive or NAS via web browser
Configuration interface accessible via web browser
OS Support
Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android

D-ViewCam™ System Requirements
Operating System: Microsoft Windows 7/Vista/XP
Web Browser: Internet Explorer 7 or higher Protocol: Standard TCP/IP

D-ViewCam™ Software Functions
Remote management/control of up to 32 cameras
Supports all management functions provided in web interface
Viewing of up to 32 cameras on one screen
Scheduled motion triggered, or manual recording options

General

Weight
1112 grams (2.45 lbs)

Power
Input: 100 to 240 V AC, 50/60 Hz
Output: 12V DC 1.25 A

Power Consumption
10 +- 5% Watt

Temperature
Operating: -30 to 50 °C (-22 to 124 °F)
Storage: -20 to 70 °C (-4 to 158 °F)

Humidity
Operating: 20% to 80% non-condensing
Storage: 5% to 95% non-condensing

Certifications
CE
CE LVD
FCC
C-Tick
