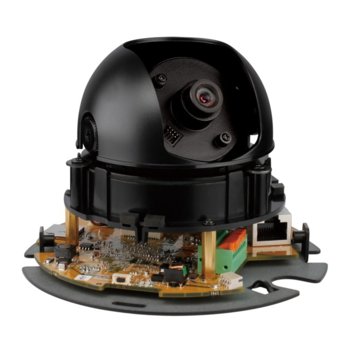

DCS-6113
Full HD PoE Day/Night Fixed Dome Network Camera
D-Link’s DCS-6113 Full HD PoE Day/Night Fixed Dome Camera - with IR LED features industry-leading High-Definition (Full 1080p HD) Megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. DCS-6113 connects to a network to provide high-quality live video over the Internet. This cameras also features a 3-axis inner bracket that allows for flexible observation area adjustment. With the free-bundled D ViewCam 32-channel recording software, this IP camera provides a complete solution for high-quality live viewing and reliable recording. The camera also have a built-in MicroSD card slot which can be used for local backup by storing important events on an easily retrievable MicroSD card.
Full HD Surveillance
The DCS-6113 delivers Full HD 16:9 widescreen IP video surveillance which provides vivid high-quality video, making it easier to view and monitor footage.
Multiple Video Streams
The DCS-6113 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, DCS-6113 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.
Day and Night Functionality
The DCS-6113 can be used during both day and night. The ICR filter allows the camera to capture crisp color images during the daytime and detailed grayscale at night, in low-night conditions, and even in complete darkness.
Tamper-proof
Anti-tamper features make the DCS-6113 camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.
Flexible Connectivity
The DCS-6113 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. They also incorporate Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.
3GPP Mobile Surveillance
Support for 3GPP Mobile Surveillance allows users to view a live video feed from a 3GPP compatible Internet-ready mobile device. This extends monitoring capability, allowing users to check the camera’s video feed while on the go without a computer.
D-ViewCam™ for Management
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record directly important events to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.
Viewing Window and ePTZ
Customise your Region of Interest (ROI) by simply drawing a rectangle on the full view display in the web interface. Being able to digitally move the ROI is an advantage for a fixed camera since it can utilize the virtual auto pan along with preset point settings to display vivid details from HD video footage. The viewing window also allows you to utilize zoom to obtain more in-depth footage.
Open Network Video Interface Forum (ONVIF) compliant
The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-6113 ia ONVIF compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems.
Hardware Profile
1/2.7" 2 Megapixel CMOS progressive sensor
Minimum Illumination: 0 lux (with IR illuminator)
Lens: fixed length 4.0mm, f1.5, 16x digial zoom
Built-in Infrared-Cut Removable (ICR) Filter module
Field of View
Horizontal: 73.5°
Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
5 Configurable privacy masks zone
Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness
Video Compression
H.264/MPEG4/MJPEG compression (simultaneous operation)
H.264/MPEG-4 multicast streaming
JPEG for still images
Video Resolution
1920 x 1080 @ 15fps
1280 x 720 @ 30fps
320 x 240 @ 30fps
1280 x 1024 @ 20fps
640 x 480 @ 30fps
176 x 144 @ 30fps
Audio Support
2-way Audio Support
Audio Mute Function
GSM-AMR speech encoding, 4.75 to 12.2 Kbps
MPEG-4 AAC audio encoding, 16 to 128 Kbps
External Device Interface
microSD card slot
Digital I/O
External AV Output: NTSC/PAL switch
Network
Network Protocols
IPv4
IPv6
TCP/IP
UDP
ICMP
DHCP Client
NTP Client (D-Link)
DNS Client
DDNS Client (D-Link)
SMTP Client
FTP Client
HTTP / HTTPS
Samba Client
PPPoE
UPnP Port Forwarding
RTP / RTSP/ RTCP
IP fi ltering
3GPP
LLTD
CoS/QoS
SNMP
IGMP
802.1x
ONVIF Compliant
Connectivity
1 x 10/100BaseT (Ethernet) with PoE
Security
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption
HTTPS streaming
Remote client access control
System Management
System Requirements for Web Interface
Operating System:
Windows® 7, Windows Vista®, Windows® XP, Windows® 2000
Browser:
Internet Explorer 6 or higher, Chrome, Firefox, Safari
D-ViewCam™ System Requirements
Operating System:
Windows® 7, Windows Vista®, Windows® XP
Web Browser: Internet Explorer 6 or higher
Protocol: Standard TCP/IP
Event Management
Motion detection
Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
Multiple event notification
Tamper detection
Supports multiple HTTP, SMTP and FTP servers
Multiple recording methods for easy backup
Remote Management
Configuration accessible via web browser
Take snapshots/video clips and save to local hard drive or NAS via web browser
D-ViewCam™ System Requirements
Operating System: Microsoft Windows 7/Vista/XP
Web Browser: Internet Explorer 6 or higher
Protocol: Standard TCP/IP
D-ViewCam™ Software Functionst
Remote management control of up to 32 cameras
Scheduled motion triggered, or manual recording options
Supports all management functions provided in web interface
Viewing of up to 32 cameras on one screen
General Specifications
Power Input
12V DC 1.25 A, 50/60 Hz, 802.3af PoE
Max. Power Consumption
5.3watts
Operating Temperature
0° to 40° C
Storage Temperature
-20° to 70° C
Humidity
90% non-condensing
Weight
16.65 (472 grams)
Certifications
CE (Class A)C
E LVD (EN60965-1)
FCC (Class A)
ICES-003
C-Tick
Diminensions
Width (Base): 5.12" (130mm)
Height: 3.85" (97.8mm)
