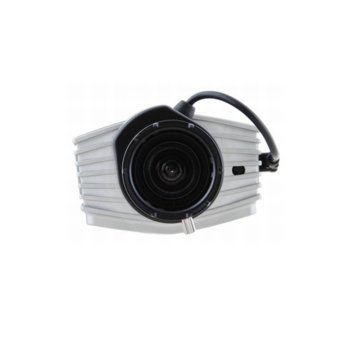

IP камера D-Link DCS-3716, Full HD, мрежова, Securicam Megapixel Day & Night WDR Network Camera, PoE, IR Cut Filter, 3GP

D-Link Securicam Megapixel Day & Night WDR Network Camera, PoE, Low Power, IR Cut Filter, 3GP
Камера

Сигурност Administrator and user group protected; Password authentication; HTTP and RTSP digest encryption
Други Motion sensor, date/time stamp, IR filter, sharpness control, white balance, progressive scanning, saturation control, SD-card slot, brightness control, Power over Ethernet, contrast control, Wide Dynamic Range (WDR), Open Network Video Interface Forum (O
Захранване Power adapter - external; 12 V DC 1.25 A, 50/60 Hz, 802.3af PoE; Max. Power Consumption: 4 Watts
Размери, mm 79.7 x 190.9 x 52.9 mm
Power Over Ethernet (PoE) 802.3af Power over Ethernet (PoE)
Входни/Изходни портове 1 x camera - RS-485; 1 x audio - output; 1 x audio - input; 1 x video - output - BNC
Сензор, тип CMOS
Размер на оптичния сензор 1/0.11 mm (1/2.8 ")
Фокално разстояние 3.1 mm - 8.0 mm
Минимална осветеност, lx Color :0.5 lx, Black&Withe: 0.05 lx
Максимална резолюция, pixels 1920 x 1080 pixels
Формати на компресиране H.264, M-JPEG, MPEG4
Скорост на предаване на кадри 30 fps
Поддържани мрежови протоколи 2 IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP fi ltering, 3GPP, IGMP, ONVIF compliant
Мрежов интерфейс 1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45
Поддържани карти за памет SD card
Нощно виждане yes
Работна температура 0 - 40 °C
Диапазон на влажноста при експлоатация 20 - 80 %
Допълнителни функции Pocket PC, or mobile phone with 3GPP playback support


High Resolution Surveillance
The D-Link DCS-3716 is a high-end HD Day & Night Network Camera, equipped with a 1/2.8" 3 Megapixel WDR Progressive Scan CMOS sensor and a 3.1-8mm auto iris lens. The camera can capture Full HD video at resolutions of up to 1920 x 1080 (maximum 2048 x 1536) at frame rates up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage through the built-in SD Card slot.

Wide Dynamic Range (WDR) Applications
The Wide Dynamic Range (WDR) function provides properly exposed video even under backlit conditions where the intensity of illumination can vary significantly, making the DCS-3716 ideal for high-contrast environments such as such as lobbies, entryways and shipping docks.

Multiple Video Streams
The DCS-3716 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. Each streaming profile can be independently configured with its own resolution, frame rate and compression type. The DCS-3716 also supports full-time analog video out, useful for aiming & focusing the camera or for use with an existing public view monitor.

Flexible Connectivity
The DCS-3716 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3716 also includes input and output ports that allow connectivity to external devices such as IR sensors, switches, and alarm relays. An RS-485 interface provides connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3716.

D-ViewCam™ for Management
The included D-ViewCam™ IP camera surveillance software is a comprehensive surveillance system designed to centrally manage multiple IP cameras. Supporting up to 32 IP cameras, D-ViewCam™ is compatible with all current D-Link IP cameras and offers digital monitoring and recording capabilities of video, audio, and events for various security applications. The D-ViewCam™ software is included free of charge with the DCS-3716.

Easy to Configure and Operate
This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network.

Open Network Video Interface Forum (ONVIF)
ONVIF is an open industry forum for the development of a global standard for the interface of IP-based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-3716 is ONVIF-compliant and therefore compatible with many third party Video Management Software (VMS) solutions.

Hardware Profile

• Sony Exmor 1/2.8" 3 Megapixel WDR Progressive CMOS Sensor
• Minimum illumination: 0.5 lux (Color); 0.05 lux (B/W)
• Built-in Mechnical Infrared-Cut (ICR) Filter Module
• Wide Dynamic Range (WDR), S/N Ratio: 100 dB
• Auto Iris Multi-Megapixel Varifocal Lens: 3.1 - 8 mm
• Aperture: F1.2

Field of View

• Horizontal: 96° to 39°

Image Features

• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• 3 configurable privacy mask zones
• Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, and sharpness

Video Compression

• H.264/MPEG-4/MJPEG simultaneous format compression
• JPEG for still images

Video Resolution

• 16:9 - (1920 x 1080), (1280 x 720), (800 x 450), (640 x 360), (480 x 270), (320 x 176), (176 x 144)
• 4:3 - (2048 x 1536), (1600 x 1200), (1024 x 768), (800 x 600), (640 x 480), (480 x 360), (320 x 240), (176 x 144)
• 3M (2048x1536) resolution up to 15 fps, and other resolutions support frame rates up to 30 fps

Audio Support
• G.726

External Device Interface
• 2 DI / 1 DO interface
• 12V DC, 200 mA Output
• RS-485
• SD Card Slot
• Audio input / output
• Video output

Network Protocols

• IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP/HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP filtering, 3GPP, IGMP, ONVIF Compliant

Connectivity

• 1 x 10/100BASET (Ethernet) with PoE

Security

• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest encryption

Event Management

• Motion detection
• Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
• Multiple event notification
• Supports multiple HTTP, SMTP and FTP servers
• Multiple recording methods for easy backup

Remote Management

• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive or NAS via web browser

Mobile Support

• Windows 7®/Vista®/XP® system, Pocket PC, or mobile phone with 3GPP playback support

D-ViewCam™ System Requirements

• Operating System: Windows® 7, Windows Vista®, Windows® XP
• Browser: Internet Explorer 6 or higher
• Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

• Remote management control of up to 32 cameras
• Scheduled motion triggered, or manual recording options
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen

Power Input

• 12VDC 1.25 A, 50/60 Hz, 802.3af PoE

Max Power Consumption

• 4 watts

Certifications

• CE (Class A)
• CE LVD (EN60965-1)
• FCC (Class A)
• ICES-003
• C-Tick

Operating Temperature

• -10 to 40°C

Storage Temperature

• -20 to 70°C

Humidity

• 20% to 80% non-condensing

Weight

• 20.45 ounces (580 grams)

Dimensions

• Length (with Lens): 7.5" (191 mm)
• Length (without Lens): 5.35" (136 mm)
• Width 3.1" (80 mm)
• Height : 2.1" (53 mm)
