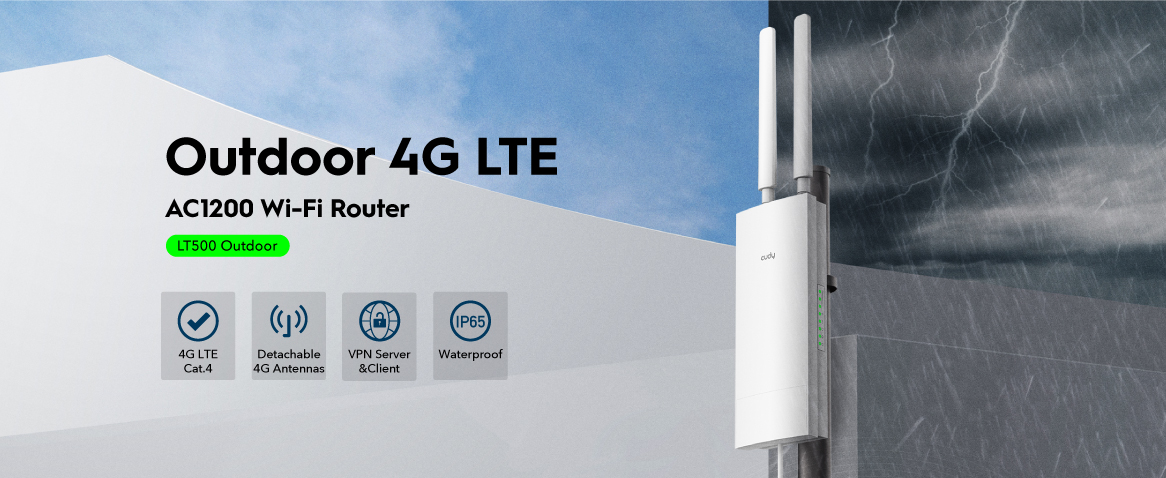

Cudy LT500 Outdoor 4G LTE
Cudy LT500 Outdoor 4G LTECudy LT500 Outdoor 4G LTECudy LT500 Outdoor 4G LTECudy LT500 Outdoor 4G LTE

Рутер Cudy LT500 Outdoor, 4G/LTE, 1200Mbps, 2.4GHz(300Mbps)/ 5GHz(867Mbps), Wireless AC, 1x WAN/LAN 10/100Mbps RJ45, 2x външни 4G антени + 2x вътрешни антени

id 268772 Код: NTWRCUDYLT500OUTDOOR
131.57 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

Cudy LT500 Outdoor







Turn Everywhere 4G into Speedy AC1200 Wi-Fi

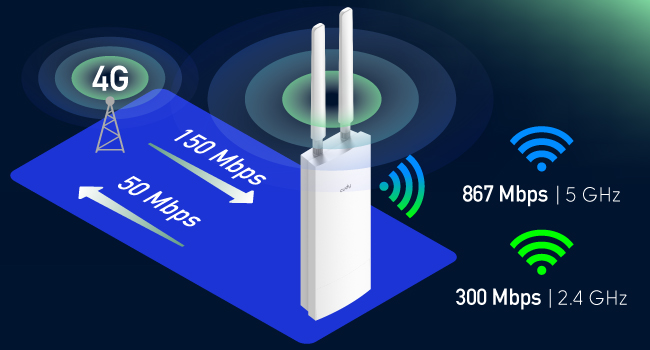

With 4G Cat. 4 standards, LT500 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. With MU-MIMO and dual-band features, the AC1200 Wi-Fi shares the fast 4G with over 30 devices while minimizing the latency.

Boosted Wi-Fi Coverage with Beamforming

Tested Wi-Fi coverage performance in four different scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.











WAN Failover

Configure LAN/WAN port as WAN and plug an ethernet cable with internet to the LAN/WAN port, then the LAN/WAN port would be the main source of the internet, while the 4G network would be worked as a backup. If the WAN/LAN Internet service fails, it will switch to 4G service automatically.







Tech specs:

LTE Module Model EU Version

EC200A

LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM/EDGE: B3/B8

Flash128 Mbit (16 MB) SPI Flash
DDR1 Gbit (128 MB) DDR
Interface1× 10/100 Mbps WAN/LAN RJ45 Port (24V/0.5A passive PoE, 4/5+,7/8-)
1× Reset Button

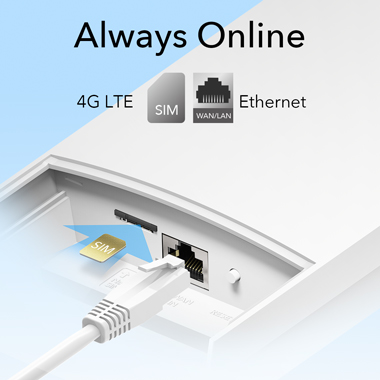

1× Nano SIM Slot
LEDSystem/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal Strength
Antenna2× Internal Wi-Fi Antennas
2× External Detachable 4G Antennas
Wireless Features
Wireless StandardsIEEE 802.11 ac/a/n/b/g
Frequency2.4 GHz, 5 GHz
Signal Rate867 Mbps (5 GHz), 300 Mbps (2.4 GHz)
Compatible with 802.11ac/a/b/g/n Wi-Fi standards
Transmit PowerCE: <20dBm
FCC:<30dBm
Wireless ModesEnable/Disable Wireless Radio, WMM
Wireless SecurityWPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK
Mesh CompatibilityWorks with other Cudy Mesh products (as the main Mesh node)
Software Features
WAN Type4G/Dynamic IP/Static IP/PPPoE
DHCPServer, DHCP Client List, Address Reservation
Dynamic DNSCompatible with 15 more DDNS providers
NATPort Forwarding, Port Triggering, UPnP, DMZ
VPN Sever & ClientPPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
CWMP ProtocolTR069 / TR098 / TR111 / TR181
ACS Server CompatibilityGenieACS, OpenACS
ManagementAccess Control, Local Management, Remote Management, Wake on LAN
TTLExtend/Spoof/Custom
DNSCloudflare/Google/Quad9/Custom
Internet ProtocolsIPv4 / IPv6
IPv6Relay
Dynamic(SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
MAP-E (Dual-stack)
DS-Lite (Dual-stack)
SMSSend/Receive
4G Band LockSupport
Others

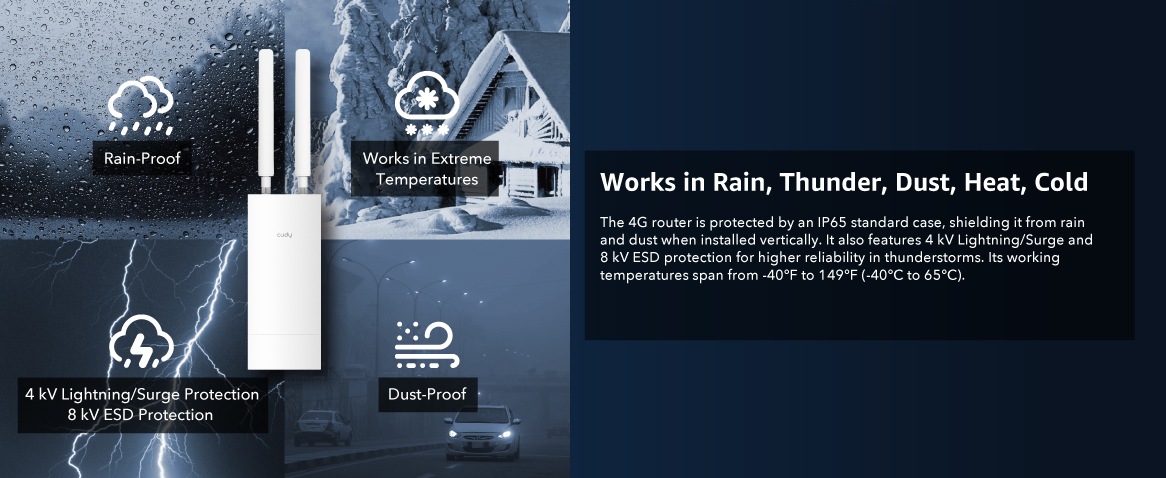

Ingrees Protection RatingIP65 (Router only when installed vertically, the PoE Adapter is not waterpoof)
Working Temperatures

-20 ~ 60 °C

Extend -40 ~ 65°C

Dimensions

Router Body: 240×100×53.7 mm
Antennas: 197.5×21.6×15.5 mm

Height of Router with Antennas installed: 438 mm

System Requirements

Windows, MAC OS, NetWare, UNIX, or Linux

Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser

If you are using 4G as your internet access, you will need a nano SIM card with an active data subscription,

If you are using WAN as your internet access, you will need a fiber/cable/DSL modem or any other wired internet source.





    Виж още Рутери Безжични Cudy
    Виж всички Рутери Безжични в категорията
    Технически характеристики
    Безжична скорост:  1200 Mbps
    Wi-Fi Стандарт:  Wi-Fi 5 (802.11ac)
    Честота:  2.4 + 5 GHz
    LAN портове:  1 x 100 Mbps
    WAN портове:  1 x 100 Mbps
    Антени:  4 (2 Вън + 2 Вътр)
    USB портове:  Няма
    3G/4G:  4G
    Преносим:  Не
    Други:  Слот за SIM карта
    Жична скорост:  10/100 Mbps
