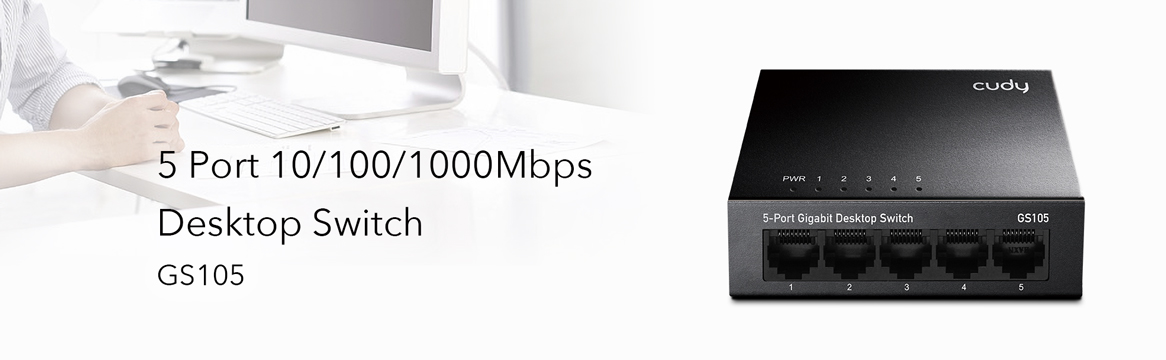

Cudy GS105

● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 16K MAC address auto-learning and auto-agin



Gigabit Ports for Faster Speed

Increase the speed of your network with the 5-port Gigabit switch. Non-blocking, 5 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.

High Performance

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Energy Efficient and Power Saving

Automatically adjusts Power consumption according to the link status and cable length.This Gigabit Desktop Switch features the innovative energy-efficient technologies that can greatly expand your network capacity with much less power.

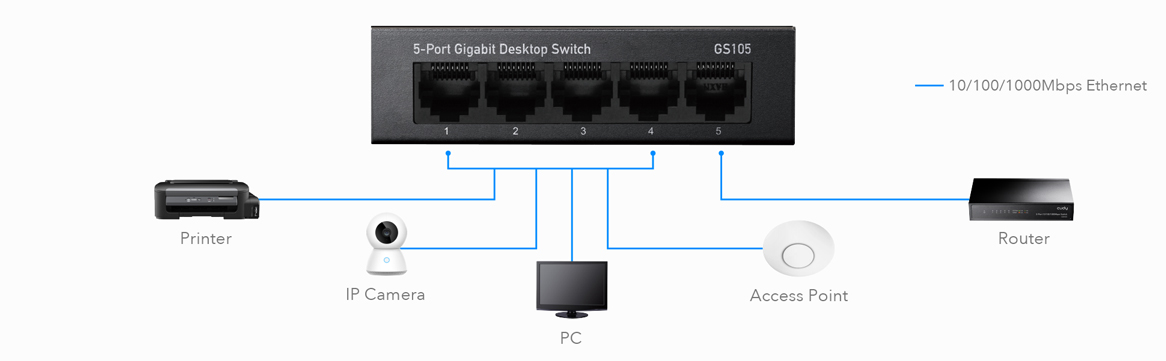

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business



Specifications:

Model GS105
Standard configurati 5 10/100/1000M RJ-45 adaptive ports
Switching Capacity 10Gbps
Throughput 7.44Mpps
Packet Buffer 1M
MAC Address 1K
Jumbo Frame 2K
Transfer Mode Store and forward
MTBF 100000 hour
Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)
Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5  or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

Working Height:Maximum10,000 feet

Storage heigh:Maximum 10,000 feet
Structure Size

Product Size:87*54*23mm

Product Net-Weight:0.2kg

Product Gross-Weight:0.4kg

Power Voltage

Power Input Voltage :AC 100-240 V

Switch Input Voltage::DC 5V




    Виж още Суич Cudy
    Виж всички продукти Суич в категорията
    Документация
    Технически характеристики
    Брой портове:  5
    Максимална скорост:  1 Gbit/s
    Стандарт:  802.3x
    Управляем:  Не е указано
