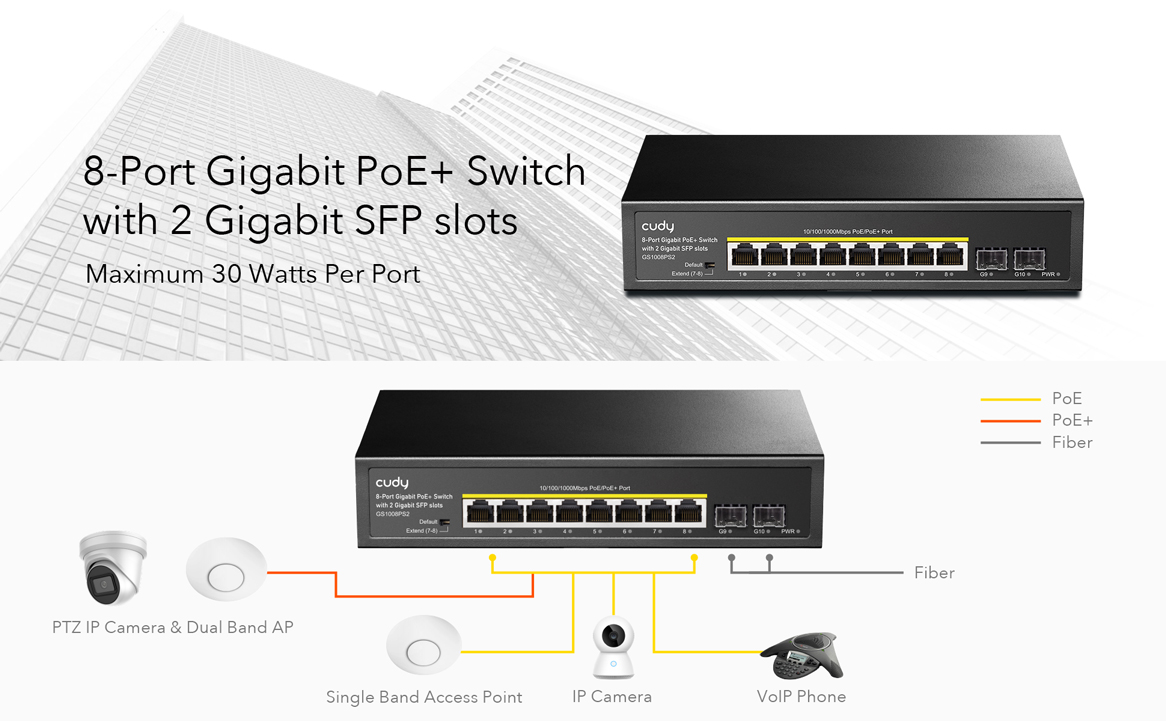

Cudy GS1008PS2
● 8 x gigabit PoE+ ports and 2 x gigabit SFP slots
● 120 watts total PoE power budget
● Extend mode(Port #7 ~ #8) supports PoE feeding up to 250 m

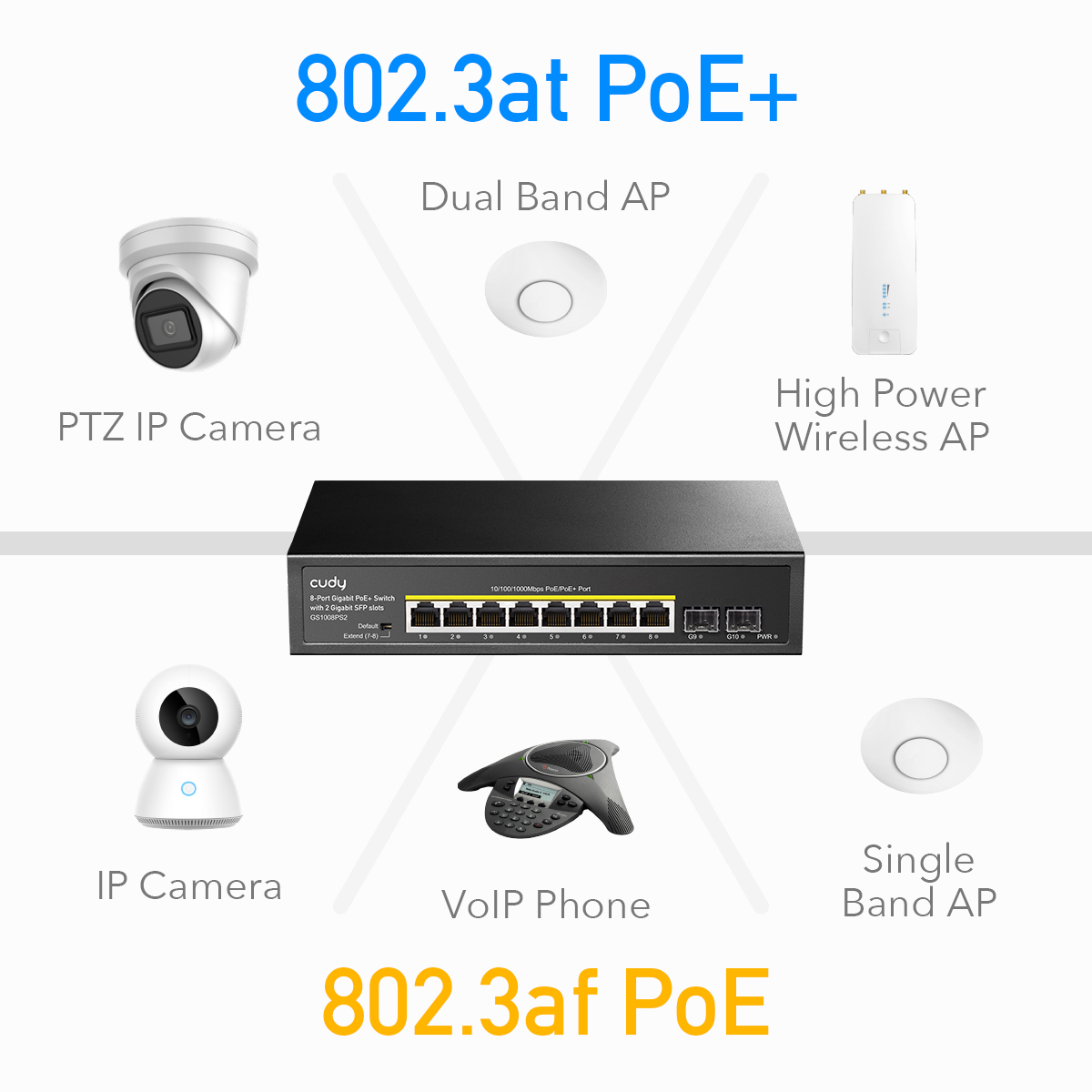

● IEEE 802.3af / 802.3at standard compliant
● IEEE 802.3X standard flow control
● Panel indicator monitoring status and help failure analysis

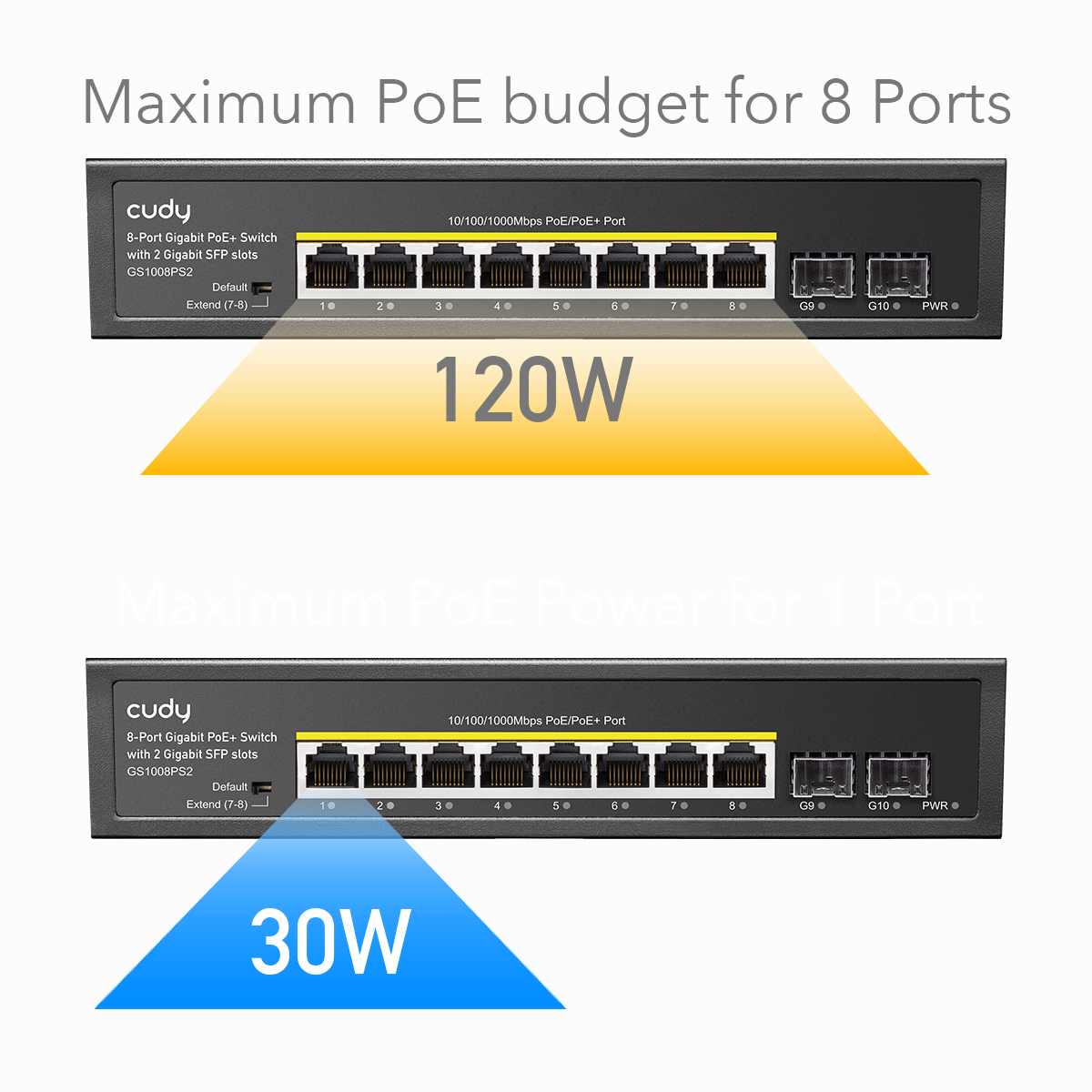

120W Power budget & 30W Maximum One Port Supports 120W total PoE power and up to 30W for one PoE port.Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard. |
|
Rack Mount & Wall Mount & Desktop ● Provide a variety of installation methods for easy deployment in any environment ● Support Wall mount installation ● Support Desktop installation |
|

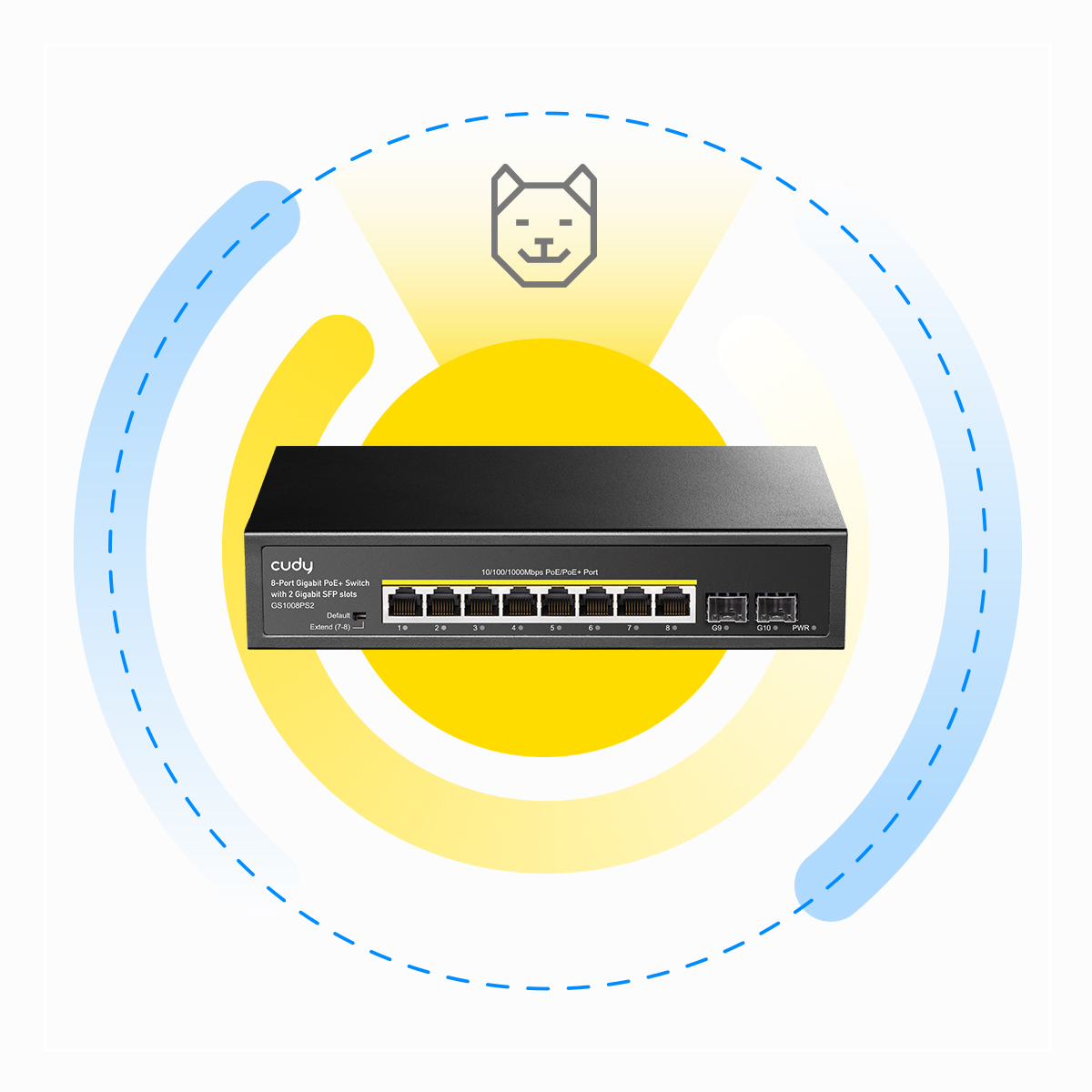

Watchdog guarantees uninterrupted operation of the PoE devices The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation. |
|
Surveillance Works with IP Cameras for home and office, small business |
|
VoIP Conference Call Works with VoIP phones for business conference |
|
Wi-Fi Coverage Works with WiFi APs for office and business |
Specification:
Power | AC100-240V50/60Hz |
Ethernet |
8* Gigabit PoE Ports 2* Gigabit SFP Ports |
Chipset |
2*RTL8367S RTL8238B |
Bandwidth | 20Gbps |
Pack forward rate | 14.88Mpps |
MAC address | 2K |
Jumbo Frame | 9216bytes |
Transfer mode | Store and forward |
MTBF | 100000 Hours |
Network Protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
PoE Protocol |
IEEE802.3af(15.4W) IEEE802.3at(30W) |
Network Medium |
10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
Optical Medium |
Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
LED Indicator | PWR (Power),1-10 Green Light (Link&Data) |
PWR |
On: Powered on Off: Powered off |
1-10 Green Light (Link&Data) |
On: Link normal Off: Link blocked Flashing: Data transmitting |
DIP Switch |
Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog) |
Structure Size |
Product Dimensions: 220*161*44mm Package Dimensions: 315*215*85mm Product N.W: 0.88kg Product G.W: 1.38kg |
Packing Info |
Carton Dimensions: 445*445*335mm Packing Quantity: 10 PCS Packing Weight: 14.8KG |
Power Voltage |
Input Voltage: AC 100-240 V 50-60Hz |
Power Consumption | <30W |
Working Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing |
Виж още Суич Cudy
Виж всички продукти Суич в категорията
Брой портове: | 10 |
---|---|
Максимална скорост: | 1 Gbit/s |
Стандарт: | IEEE 802.3 at |
Управляем: | Не е указано |
