Cudy AP3000 Outdoor
Икона нов продукт
НазадCudy AP3000 OutdoorCudy AP3000 OutdoorCudy AP3000 OutdoorCudy AP3000 OutdoorНапред

Точка за достъп Cudy AP3000 Outdoor, 3000Mbps, 2.4GHz (571Mbps)/ 5GHz (2402Mbps), Wireless AX, 1x RJ-45 100/1000/2500 (PoE), 2x външни антени

id 283259 Код: NTWBCUDYAP3000OUTDOOR
157.49 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

Cudy AP3000 Outdoor

A pole/wall-mounted WiFi 6 AP featuring eFEM providing exceptional range performance. The IP65 casing, PoE, and Cudy Mesh features, ideal for high-density park, farm, and parking lot environments.

  • IP65, -40~70°C (-40~158°F), 6kV Surge
  • 4-Stream Dual-Band Wi-Fi 6
  • 2402 Mbps + 574 Mbps Wi-Fi 1
  • 1× Shielded GbE PoE In
  • 802.3at, 48~57V Passive PoE
  • Watchdog, Schedule Reboot
  • Max 320 m (1050 ft) Range
  • 200 Connected Devices





Super-Fast, Super-Efficient AX3000 Wi-Fi 6

Wi-Fi 6 with the highest 160 MHz channel width and 1024-QAM modulation provide up to 3 Gbps total throughput. OFDMA and MU-MIMO work on uplink plug download directions allowing it to connect over 100 devices while minimizing latency. (Max 512 devices)



High-Power Wi-Fi Coverage with Five PA

Equipped with five power amplifiers and a 3+2 antenna structure, this AP delivers top-notch capabilities to navigate its signal through physical obstacles.

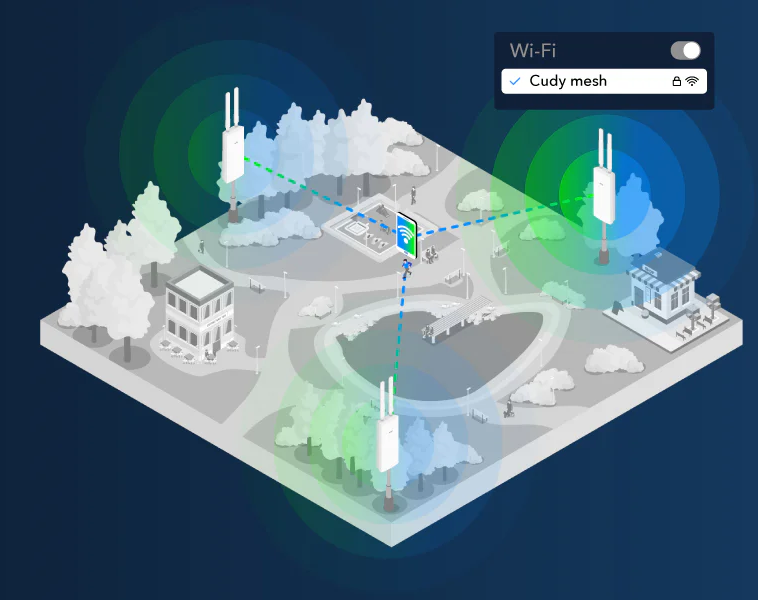

Seamless Roaming for Smooth Wi-Fi Experience

Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.





CPUChipsetMT7981BA
 CPU Details1.3 GHz Dual-Core CPU
Memory/StorageFlash/ROM128 MB (1 Gbit) NAND
 DDR/RAM256 MB (2 Gbit) DDR3
Wireless5 GHz Wi-Fi Speed2402Mbps
 2.4 GHz Wi-Fi Speed574Mbps
 5 GHz Wi-Fi Streams3T3R (3×3 MIMO)
 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
 Wi-Fi Antennas1× Internal+2× External
 5 GHz Antenna Gain Max6 dBi
 2.4 GHz Antenna Gain Max4 dBi
 FEM or PA/LNA
  • 5 GHz: 3× High-Power
  • 2.4 GHz: 2× High-Power
 Detachable Wi-Fi Antennas ConnectorRP-SMA Female
 BeamformingTrue
 Range PerformanceMax: 320 m (1050 ft)
Park: 280 m (919 ft)
Street: 70 m (230 ft)
Woods: 40 m (131 ft)
InterfacesGigabit RJ45 Ports1
 Ethernet NotesAccepts PoE powering
 LEDSystem
 Physical Buttons
  • WPS Button
  • Reset Button
 Power InputPoE via Ethernet Port
PowerPower Methods
  • 802.3at PoE
  • Passive PoE
 Passive PoE48 ~ 57V
 Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
 Max Power Consumption (W)18 W
 Idle Power Consumption (W)5 W
ReliabilityAdvancedHardware Watchdog
 Lightning/Surge Protection6kV
 ESD Contact Protection4kV
 ESD Air Protection8kV
 EnvironmentOperating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~149 ℉)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing
 Ingress Protection RatingIP65 When devices is installed vertically
CertificationsFCC, CE
MechanicalInstallation
  • Wall-mount
  • Pole-mount
 DimensionDevice Body:
240×100×53.7 mm
9.45×3.94×2.11 inches
Each Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches
 Product Weight455 g (16.05 oz.)




    Виж още Аксеспойнт/Репитер Безжични Cudy
    Виж всички Аксеспойнт/Репитер Безжични в категорията
    Технически характеристики
    Тип:  Аксес пойнт
    Монтаж:  За външен монтаж
    Безжична скорост:  3000 Mbps
    Wi-Fi Стандарт:  Wi-Fi 6 (802.11ax)
    Честота:  2.4 & 5 GHz
    Антени:  2 Външни
    dBi на антена/и:  6
    PoE:  In
    Интерфейс:  1x 2500
    Други:  Няма
