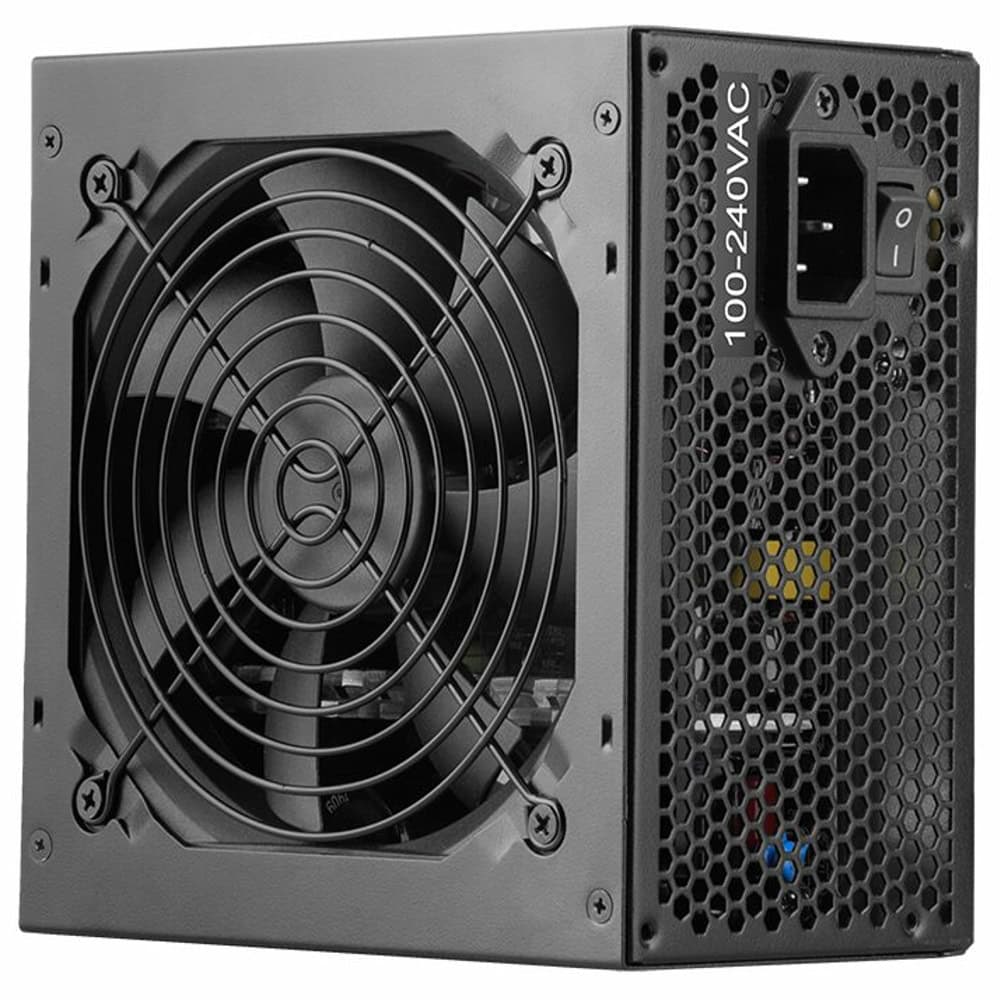

Захранване Cooler Master MWE 750 - V2, 750W, Active PFC, 80+ Bronze, 120mm вентилатор

Cooler Master MWE 750 - V2 230V
MPE-7501-ACABW-BEU

SPECIFICATIONS

ATX VERSION
ATX 12V V2.52

PFC
Active PFC

INPUT VOLTAGE
200-240Vac

INPUT CURRENT
10-6A

INPUT FREQUENCY
50-60Hz

DIMENSIONS (L X W X H)
140 x 150 x 86 mm

FAN SIZE
120mm

FAN BEARING
HDB

FAN SPEED
2400 RPM

NOISE LEVEL @ 20%
11.12 dBA

NOISE LEVEL @ 50%
20.3 dBA

NOISE LEVEL @ 100%
39.5 dBA

EFFICIENCY
88% Typically
80 PLUS RATING
80 PLUS Bronze EU 230V

ERP 2014 LOT 3
Yes

POWER GOOD SIGNAL
100 - 500 ms

HOLD UP TIME
>18ms at 100% Full Load@230Vac

MTBF
>100,000 Hours

PROTECTIONS
OVP, OPP, SCP, UVP, OTP

REGULATORY
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

ATX 24-PIN CONNECTORS
1

EPS 4+4 PIN CONNECTORS
1

EPS 8 PIN CONNECTOR
1

SATA CONNECTORS
6

PERIPHERAL 4-PIN CONNECTORS
3

PCI-E 6+2 PIN CONNECTORS
4

SERIES
MWE Bronze Series

80 PLUS
Bronze

MODULAR
Non Modular

WATTAGE
500 to 750W
