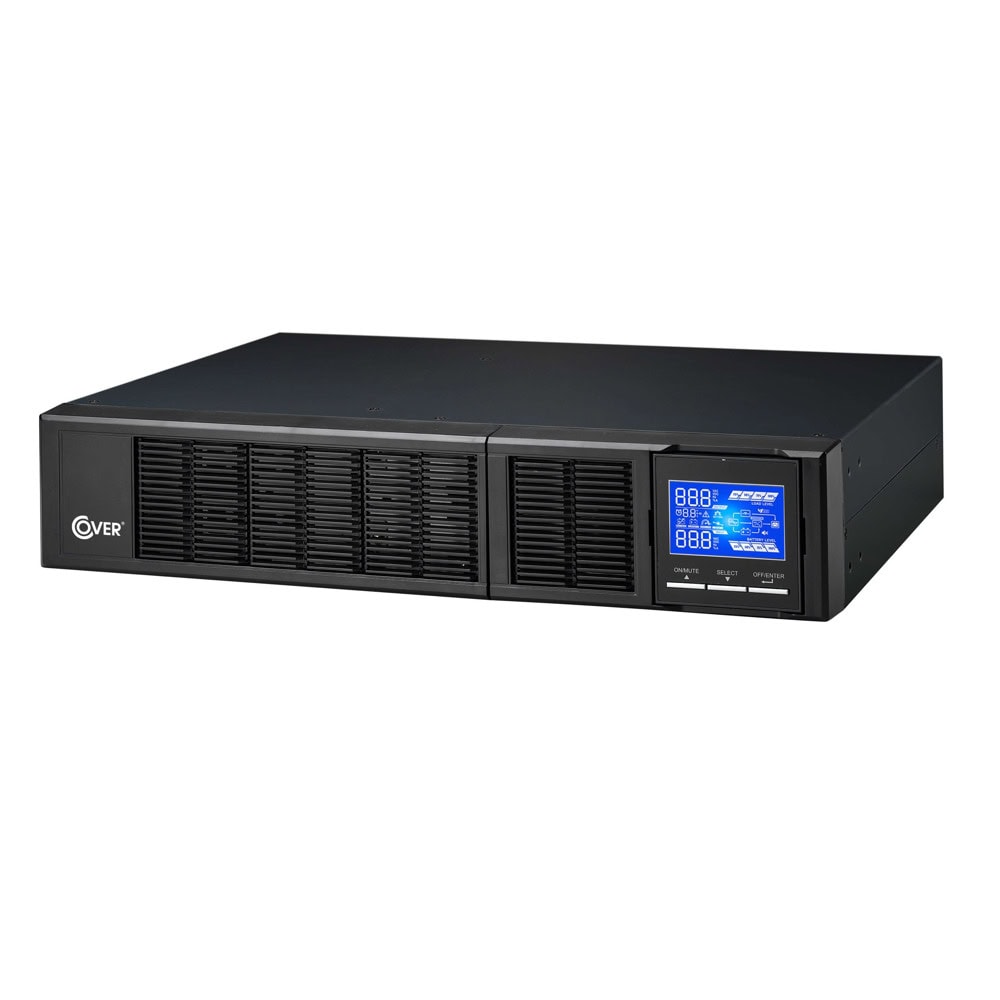

UPS Comex Cover CORE 2K, 2000VA/2000W, On-Line, Rack/Tower

Comex Cover CORE 2K

True On-Line Double Conversion Technology (EN 62040-3) provides perfect output voltage parameters, regardless of the input voltage and the load.
Automatic Bypass (Static Switch) provides continuous load supply in critical conditions, such as overheating or inverter failure.
Frequency converter feature lets you set the output frequency to 50Hz or 60Hz.
USB, RS-232, Dry Contact for UPS (Uninterruptible Power Supply) and load supervision and control.
TVSS surge suppressors and built-in RJ-45 connectors guarantee safety of data send through network.
Ethernet Interface for computer-network communication with SNMP protocol support
Software controlled output receptacles enable managing groups of load.

Tech specs:
Power 2000 VA; 2000 W
No. Of phases IN : OUT 1:1
Nominal voltage 208 / 220 / 230 / 240 Vac

Voltage range
30% ÷ +30% @ 100% ≥ load > 80%
-40% ÷ +30% @ 80% ≥ load > 70%
-48% ÷ +30% @ 70% ≥ load > 60%
-52% ÷ +30% @ 70% ≥ load > 0%

Frequency 50 / 60 Hz
Frequency range -20% ÷ +20%
THDi <3%
Input power factor ≥0,99

Output
Nominal voltage 208 / 220 / 230 / 240 Vac
Output power factor 0,9
Voltage regulation static/dynamic ±1% / ±3%
Frequency 50 / 60 ± 0,05 Hz
Overload capacity inverter 110% - no limit, 130% - 5 min, 140% - 30 sec., >140% - 1,5 sec
Efficiency on-line mode >92%
Efficiency eco mode 99%
Controlled socket groups 1 x 4 pcs.
Type and number of sockets IEC320-C13 x8

Batteries
Amount of internal batteries 4 x 7/9Ah
Cold start Yes
Connector for external batteries Yes
Charging time 4 hours up to 90% of capacity

Dimensions and weight
Dimensions and weight of UPS (W x D x H) 438 x 510 x 88 (2U), 19,5 kg

Communications
Working indicator LCD panel + sound alarm
Communications    Standard: RS232, USB, TVSS, SNMP Slot, REPO

Enviromental
Noise level <45 dB
Operating temperature for UPS 0°C ÷ 45°C
Recommended temperature for UPS 15°C ÷ 25°C
Recommended operating temperature for UPS -25°C ÷ 55°C
Humidity 0 ÷ 95% (without condensing)

Standards
Standards EN 62040-2:2005, EN 62040-2:2006
Safety IEC62040-1-1, CE, 62040-3 :2001
