Chieftec Visio Air GM-30B-M-OP
Икона в кампания
НазадChieftec Visio Air GM-30B-M-OPChieftec Visio Air GM-30B-M-OPChieftec Visio Air GM-30B-M-OPChieftec Visio Air GM-30B-M-OPНапред

Кутия Chieftec Visio Air (GM-30B-M-OP), ATX/microATX/Mini-ITX, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.0, 3x ARGB 140mm вентилатора, с прозорец, черна, без захранване

id 288103 Код: CASEPCHIEFTECVGM30BMOP
  • Модел: Visio Air GM-30B-M-OP
  • Марка: Chieftec
  • Гаранция: 24 месеца
  • Код на продукта: GM-30B-M-OP
  • Захранване: Не
  • Прозорец: Да
  • Цвят: Черен
  • Наличност: Не е наличен
    ОписаниеХарактеристикиРевюта / Въпроси

    VISIO AIR
    GM-30B-M-OP

    • Dual-chamber design

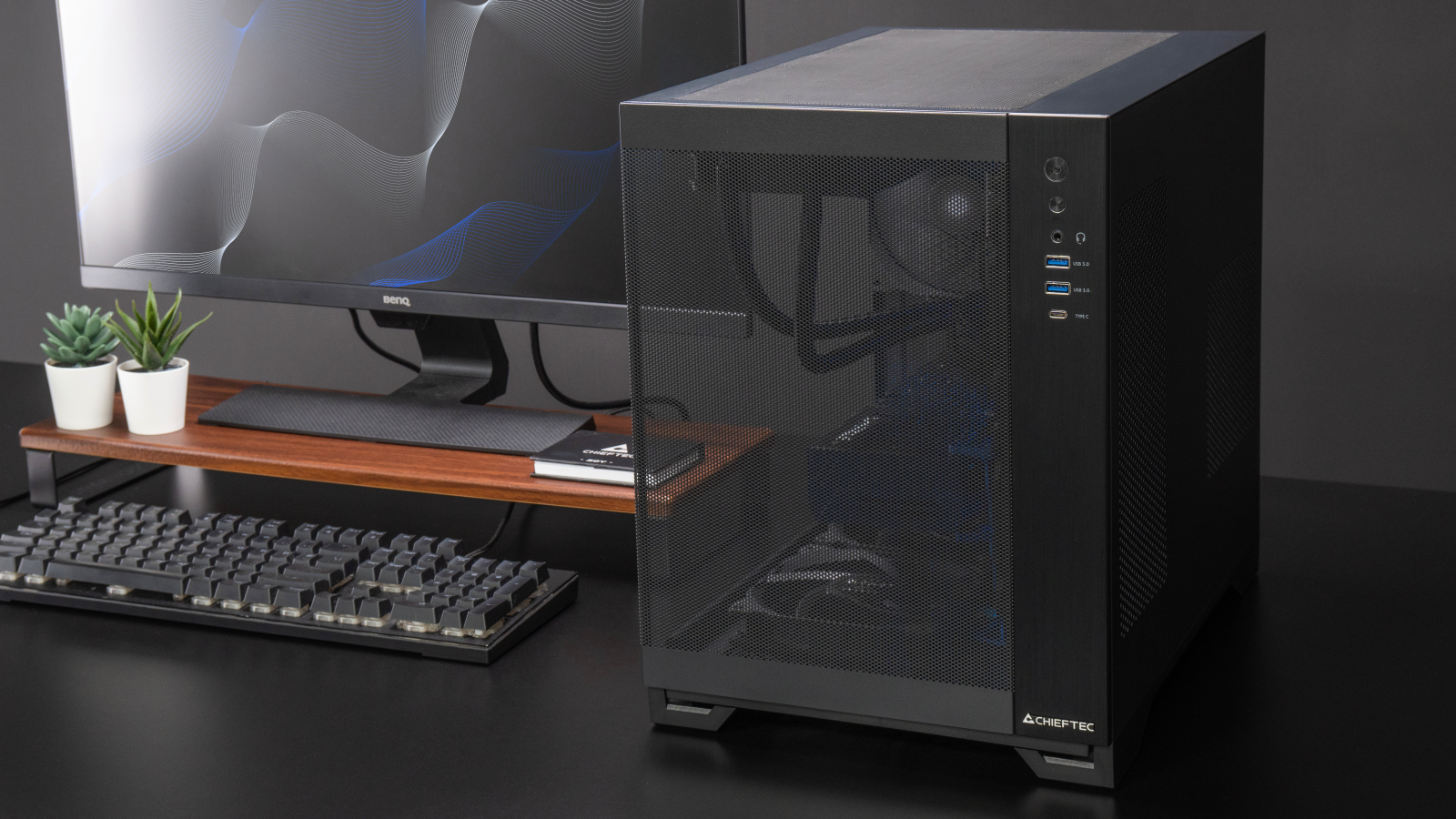

    • Combination of brushed aluminum and mesh front panel
    • Side panel made of TEMPERED GLASS
    • Compatibility with back-connect motherboards
    • 3x 140mm PWM fans pre-installed

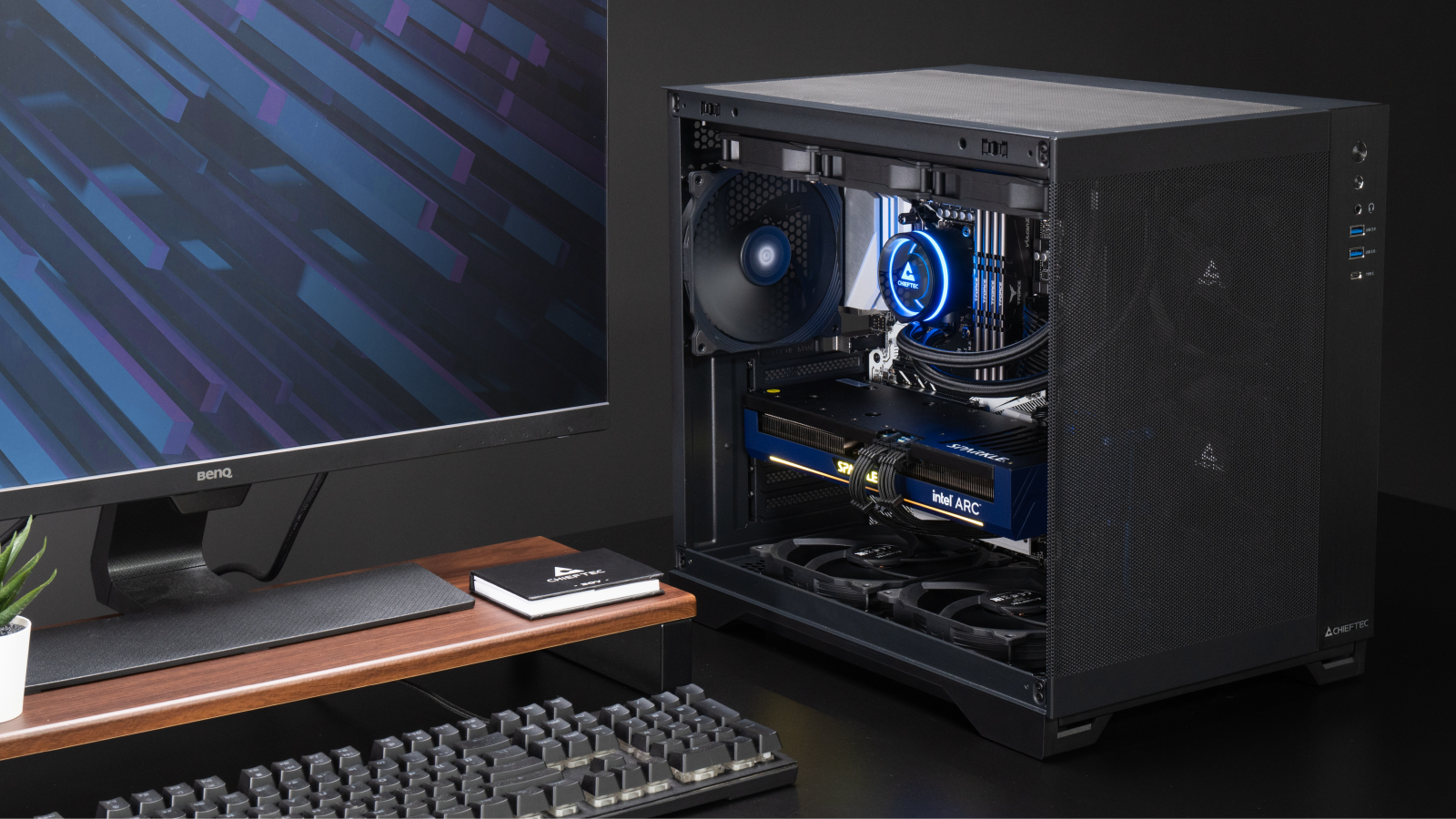

    The CHIEFTEC Visio Air performance chassis features a dual-chamber layout to accommodate the latest back-connect motherboards, streamlining cable management for a cleaner interior view (ASUS BTF and MSI Project Zero compatible). The Visio Air comes with tempered glass on the side, a front combining brushed aluminum and mesh panel, along with two pre-installed 140mm PWM fans on the bottom and one 140mm PWM fan on the rear. This design enhances stability and airflow, effectively reducing heat accumulation inside the chassis while keeping noise levels low.

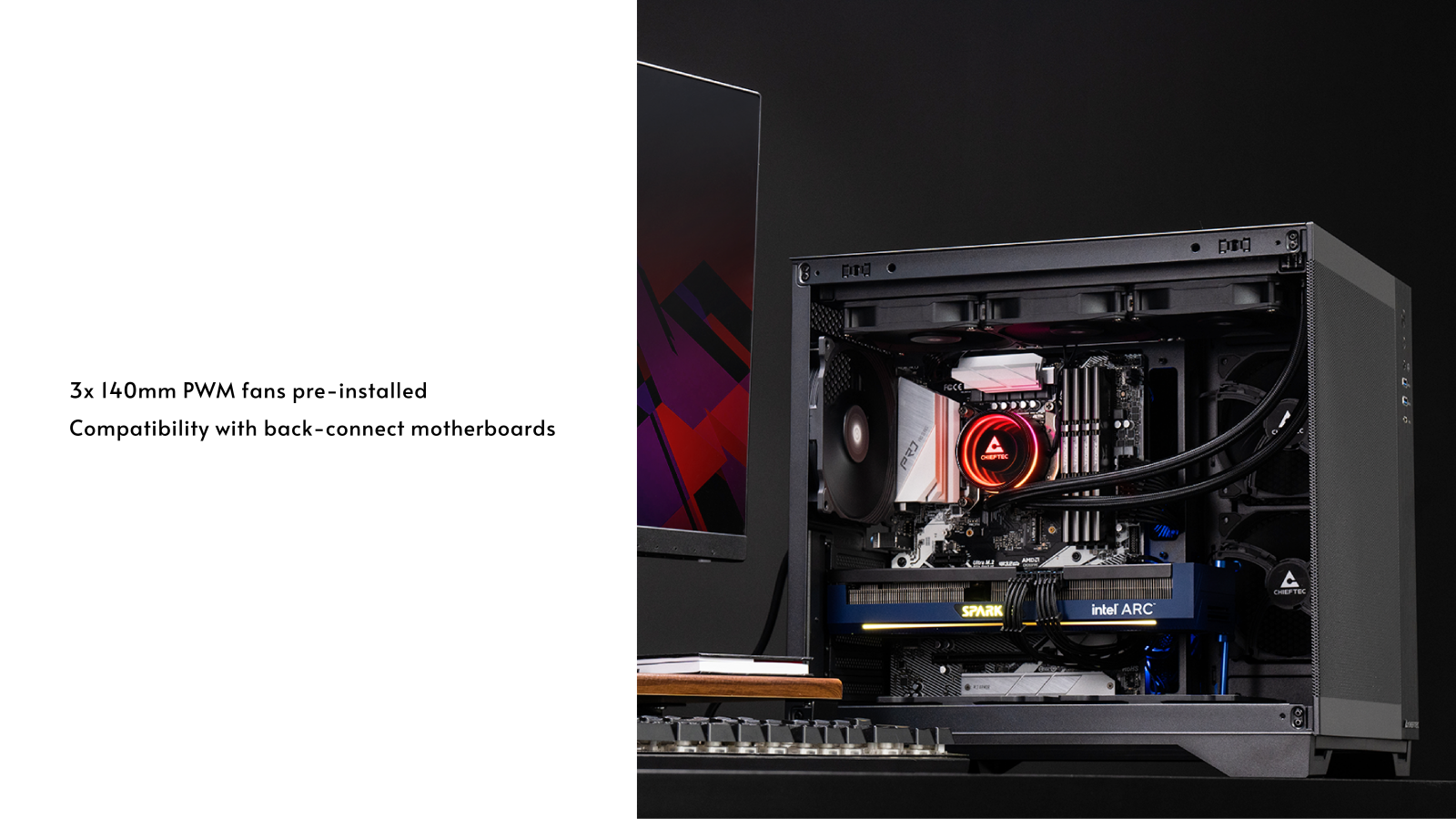

    The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated configuration.

    The CHIEFTEC Visio Air is versatile enough for both work and home environments, making it a practical choice for various settings.






    ColorBlack
    Material0.65-0.9mm SPCC and tempered glass at side panel
    Motherboard supportMini ITX, mATX, ATX
    Dimension (DxWxH)430mm x 295mm x 390mm
    Weight (without/with package)6.8 kg / 8.3 kg
    Drive bay external--
    Drive bay internal2x 2.5" and 2x 3.5“
    Power supplyATX PSU (optional, ~200mm)
    Front I/O1x USB3.2 Gen2 Type C, 2 x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-In
    Scope of deliverySet of screws, instruction manual
    Bottom: 2x 140mm PWM fans pre-installed
    Rear: 1x 140mm PWM fan pre-installed
    Expansion slots6
    Cooling CompatibilityBottom: 3x 120mm / 2x 140mm / 240mm radiator / 280mm radiator / 360mm radiator
    Top: 3x 120mm / 2x 140mm / 240mm radiator / 280mm radiator / 360 mm radiator
    M/B side: 2x 120mm / 240mm radiator
    Rear: 1x 120mm / 1x 140mm
    CPU cooler height (max.)175mm
    VGA card length (max.)410mm


    JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Компютърни кутии Chieftec
    Виж всички Компютърни кутии в категорията
    Технически характеристики
    Захранване:  Не
    Прозорец:  Да
    Цвят:  Черен
