BX-MESH
BX-10B-M-OP
- Compact, modern m-ATX tower
- Optimal cooling compatibility
- Support 240mm radiator
- 1x 120mm PWM fan pre-installed

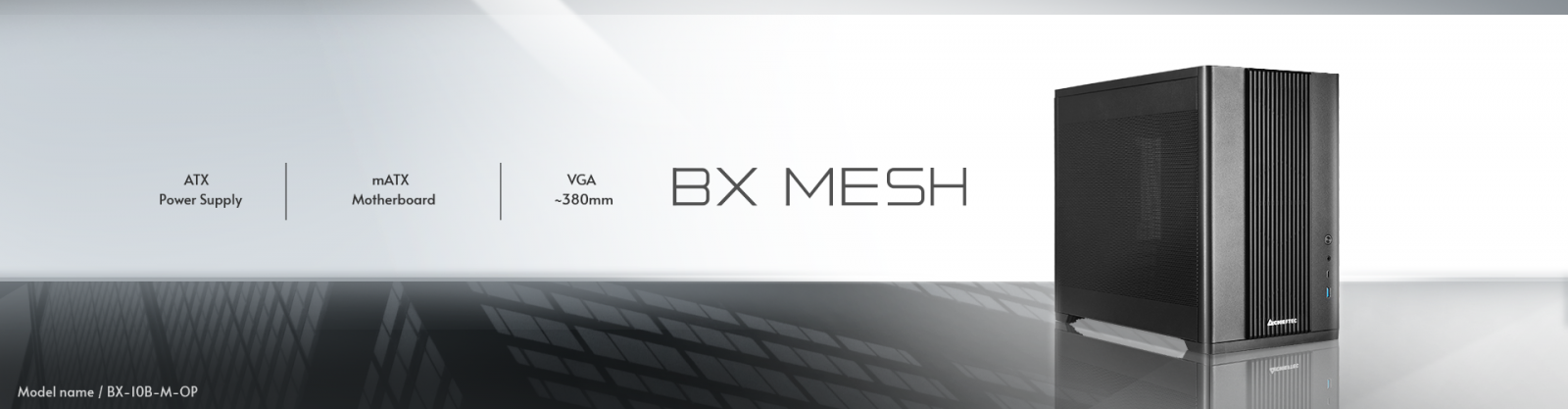

The CHIEFTEC BX-MESH is a modern, compact mini tower that combines elegant and subtle design with high functionality and easyinstallation for a capable system. Featuring standard ATX PSU compatibility, m-ATX boards and graphics cards up to a maximum length of 380mm, as well as a total of 6 possible installed fans, modern configurations should have no trouble being installed into the BX-10B-M-OP from a space or cooling perspective.

Specifications:
Color | Black |
Material | 0.6mm SPCC |
Motherboard support | Mini ITX, mATX |
Dimension (DxWxH) | 415mm x 204mm x 325mm + (15mm feet) |
Drive bay external | - |
Drive bay internal | 1 x 3,5" & 3 x 2,5" or 4 x 2.5” |
Power supply | ATX PSU (optional, ~180mm recommended if GPU >300mm installed) |
Front I/O | 1x USB3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C, Audio-Out/Mic-In |
Scope of delivery | Set of screws , 1x 120mm PWM fan pre-installed |
Expansion slots | 4 |
Cooling Compatibility | Bottom: 3x 120mm or 2x 140mm (140mm only with ITX board) Rear: 1x 120mm pre-installed Top: 2x 120mm or 2x 140mm fans or 240mm radiator |
CPU cooler height (max.) | 165mm |
VGA card length (max.) | 380mm (300mm, if PSU longer than 180mm installed) |
