Chieftec UNI Chassis

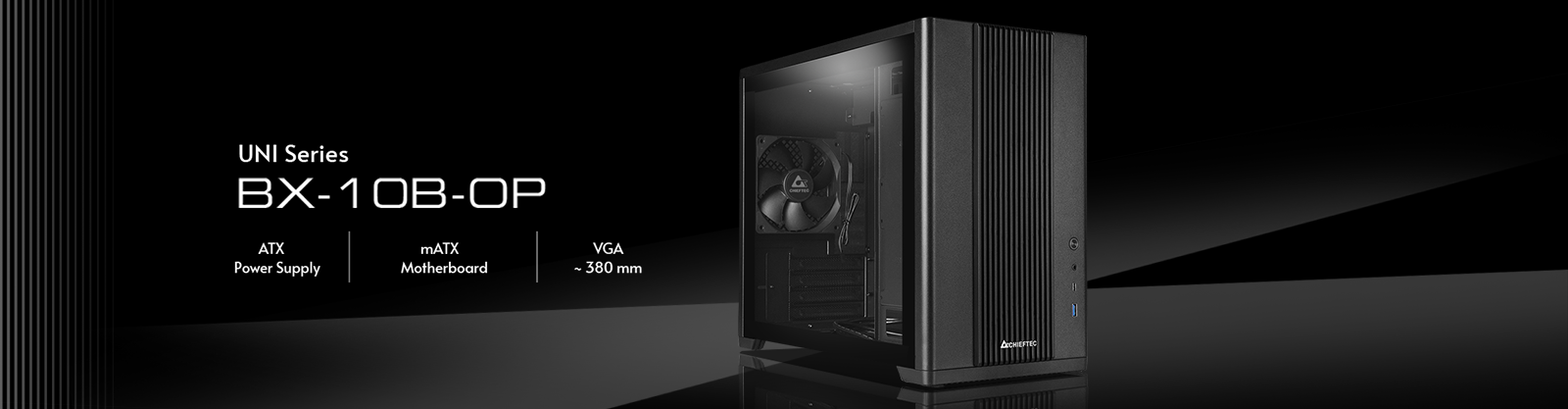

The CHIEFTEC BX-10B-OP is a modern, compact mini tower that combines elegant and subtle design with high functionality and easy-installation for a capable system. Featuring standard ATX PSU compatibility, m-ATX boards and graphics cards up to a maximum length of 380mm, as well as a total of 6 possible installed fans, modern configurations should have no trouble being installed into the BX-10B-OP from a space or cooling perspective.
Specifications:
| Color | Black |
| Material | 0.6mm SPCC |
| Motherboard support | Mini ITX, mATX |
| Dimension (DxWxH) | 415mm x 204mm x 325mm + (15mm feet) |
| Weight (without/with package) | 4.78 kg / 5.48 kg |
| Drive bay external | - |
| Drive bay internal | 1 x 3,5" & 3 x 2,5" or 4 x 2.5” |
| Power supply | ATX PSU (optional) |
| Front I/O | 1x USB3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C, Audio-Out/Mic-In |
| Scope of delivery | Set of screws , 1x 120mm PWM fan pre-installed |
| Expansion slots | 4 |
| Cooling Compatibility | Bottom: 3x 120mm or 2x 140mm (140mm only with ITX board) Rear: 1x 120mm pre-installed Top: 2x 120mm or 2x 140mm fans or 240mm radiator |
| CPU cooler height (max.) | 165mm |
| VGA card length (max.) | 380mm (300mm, if PSU longer than 180mm installed) |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Chieftec
Виж всички Компютърни кутии в категорията
Документация
BX-10B-OP-DATASHEET-EN.pdfТехнически характеристики
| Захранване: | Не |
|---|---|
| Прозорец: | Да |
| Цвят: | Черен |
