Name: Захранване Chieftec Atmos CPX-850FC, 850W, Active PFC, 80+ Gold, 120mm вентилатор
Brand: Chieftec
SKU: PWRPCCHIEFTECCPX850FC
Price: 262.36 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

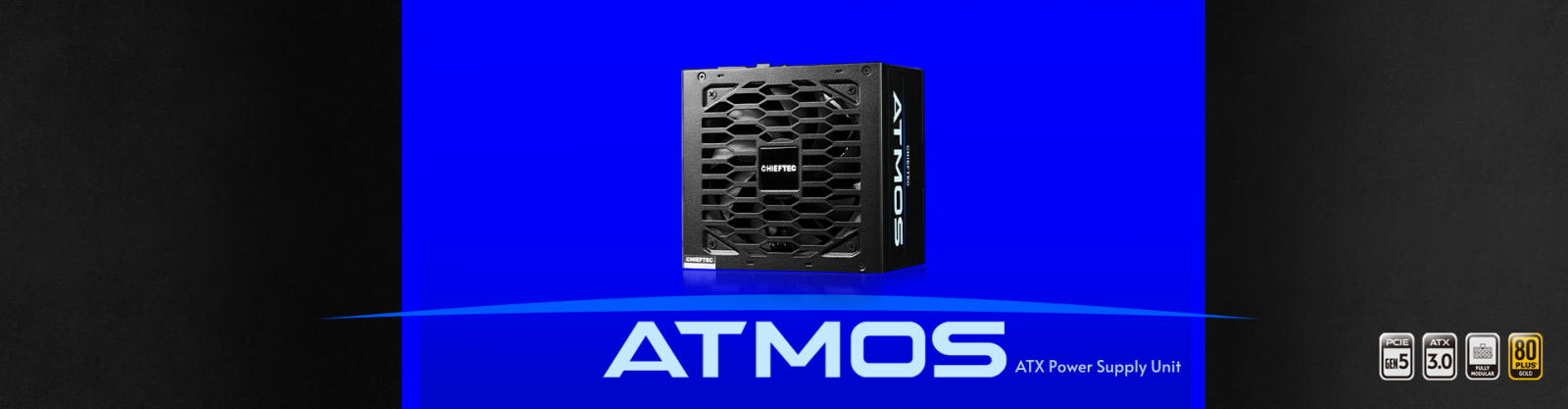

Chieftec Atmos CPX-850FC

Compliant with ATX 12V 3.0
Support PCIe GEN5
ECO Fan : Smart Fan Control
Japanese Capacitors
SRC Full-Bridge converter with DC to DC technology

The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supports
PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional
performance up to 850W. The ATMOS series features a state-of-the-art technical
design including an SRC Full-bridge converter with DC-to-DC technology, and
Japanese capacitors to ensure longevity and stability.

The ATMOS 120mm FDB silent fan optimizes the balance between cooling
and noise with excellent durability, while the ECO fan mode enables fanless
operations at low loads. CHIEFTEC’s multiple security protection technology is
designed to keep your system safe.

Specifications:

Weight (without/with package)	1.52kg / 3.04kg
AC Input	100-240V~ / 10-5A
Frequency	50 - 60Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	100W
+12V1	70.8A
+12V2	-
+12V1, +12V2 combined	850W
P.F.	>0.9
-12V	0.3A / 3.6W
+5VSB	3.0A / 15W
Maximum Power	850W

20+4 PIN ATX	1
8 PIN EPS (4+4)	2
8 PIN PCIe (6+2)	2 / 2
16 PIN PCIe GEN5	1
SATA	9
MOLEX	4

20+4 PIN ATX	600
8 PIN EPS (4+4)	2 x 700
8 PIN PCIe (6+2)	2 x 700 \| 700/150
16 PIN PCIe GEN5	600
SATA	3 x 550/100/100
MOLEX	550/100/100/100

ATX12V Version	ATX 12V 3.0
Efficiency	80Plus Gold
Dimension (DxWxH)	140 mm x 150 mm x 86 mm
PFC	Active PFC (0.9)
Fan	120mm FDB fan
Security	AFC (Automatic Fan Speed Control) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection) OCP (Over-Current Protection)
