Проектор Canon LV-X420, DLP, XGA (1024x768), 10000:1, 4200lm, HDMI, Mini D-Sub, USB Type B, RJ-45

DLP technology for crisp, rich images in 4:3 format

Clear, detailed images combined with useful connectivity options give you the edge. Network control plus support for mobile devices increase your options, with easy maintenance, low running costs

Specifications in detail

Panel
Type:  1-Chip DLP
Size and Number:  0.55” diagonal x 1
Aspect Ratio:  4:3
Native Resolution:  1024 x 768 (XGA), 786,423 pixels

OPTICS
Lamp Type:  310W Super High Pressure Mercury Lamp
Lens F Number and Focal Length:  F2.42 – F2.97; f=20.7 – 31.1mm
Zoom Magnification and Control:  1.5x Manual
Focus control:  Manual
Lens Shift:  Vertical: 65%, Fixed
Lamp Life:  2,500h (normal)/ 3000h (Eco)*

IMAGE AND AUDIO
Brightness:  4200 lumens / 3360 lumens
Brightness Uniformity:  80%
Contrast Ratio:  10,000:1 (full on / full off)
Projection Distance Coverage:  1.2m – 10m
Screen size:  30” - 260” (61 x 46cm - 528 x 396cm)
Projection Ratio:  1.83 - 2.75:1
Digital Zoom Magnification:  2x
Keystone Correction Range:  Vertical: +/-30°, Horizontal: +/-30°
Digital RGB Compatibility:  WUXGA / UXGA / WXGA+ / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA
Analogue RGB Compatibility:  WUXGA / WSXGA+ / UXGA / WXGA+ / WXGA / SXGA+ / SXGA / XGA / SVGA / VGA / MAC
Digital Video Scan Systems:  1080p / 1080i / 720p / 576p / 480p
MHL Input
1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Component Video Scan Systems:  1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Video / S-Video Colour Systems:  PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Aspect Ratio:  Fill / 4:3 / 16:9 / Letter Box / Real / 2.35:1
3D content:  HDMI using DLP-Link: Frame Sequential/Frame Packing/Top-Bottom/Side-By-Side
Image Modes:  Standard / Presentation / Movie / sRGB / User
Built-in Speaker:  10W RMS, Monaural

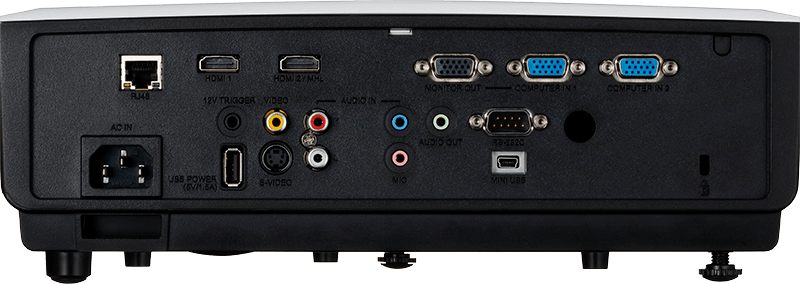

PORTS AND CONNECTORS
Digital RGB / Digital Video / MHL:  HDMI™, MHL Input
Analogue RGB Input 1:  Mini D-Sub 15-pin
Analogue RGB Input 2:  Mini D-Sub 15-pin
S Video input:  Mini-Din4
Monitor Out:  Mini D-sub 15-pin
Audio Input 1:  RCA left & right
Audio Input 2:  3.5mm stereo mini-jack
Mic Input:  3.5mm mini-jack (only mic or audio input 2 can be used at one time)
Audio Output:  3.5mm stereo mini-jack (variable level)
USB Port:  Power supply terminal (1.5A) Type A
USB Port:  Service port USB Type B
Projector Control:  RS-232C Mini D-Sub 9-pin
LAN Network Port:  RJ-45 (100BASE-TX / 10BASE-T)

MECHANISMS
Elevation Mechanism:  One front, one rear rotary feet, 3° maximum image elevation

RATINGS
Dimensions (W x H x D):  314mm x 112mm x 231mm (Including protrusions)
Weight:  3.4kg
Power Source:  100V - 240V AC, 50/60Hz
Power Consumption:  Normal Mode: 410W / Eco Mode: 320W / Standby: 2W / Standby (LAN off): 0.5W
Noise Level:  Normal Mode: 40dB / Eco Mode: 36dB
Operating Environment:  5°C to +40°C (RH: 10-85%)
