Проектор BenQ LU960ST2, DLP, WUXGA (1920x1200), 3 000 000:1, 5200lm, DisplayPort, HDMI, VGA, RJ45, USB, RS232



BenQ LU960ST2







DLP Laser Projectors for Long-Lasting Vibrant Color

As the world’s No. 1 DLP projector brand, BenQ brings the new whole series of high brightness laser projectors with superior image quality, flexible installation, and easy-to-maintain/manage features. Experience the next-generation public displays and brand-new visual effects for the most immersive visual experience.

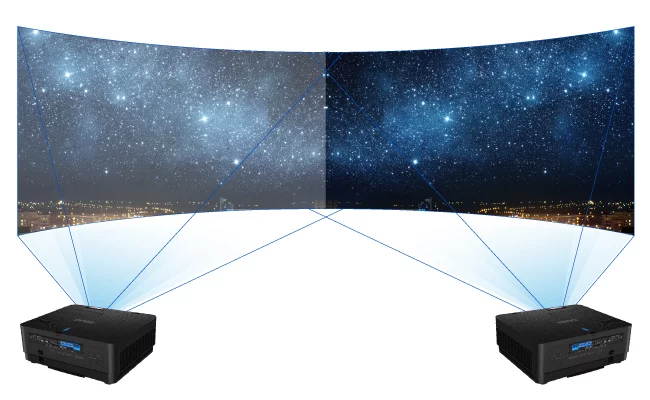

Superior Contrast in Dark Scenes

The DLP technology performs at superior contrast level in dark scenes compared to 3LCD projectors, which contain too much brightness on the screen from internal light panel. This is important for training simulation applications because the dark scene of the night time need to be real to life for pilots to read the information and react correctly.







Exclusive Fast Mode with 17ms low latency

Based on expertise gained from BenQ experience with near-zero latency gaming, LU960ST2 employs a Fast Mode that provides latency as low as to 16.67ms (@WUXGA 60Hz) to achieve low-latency interactivity.

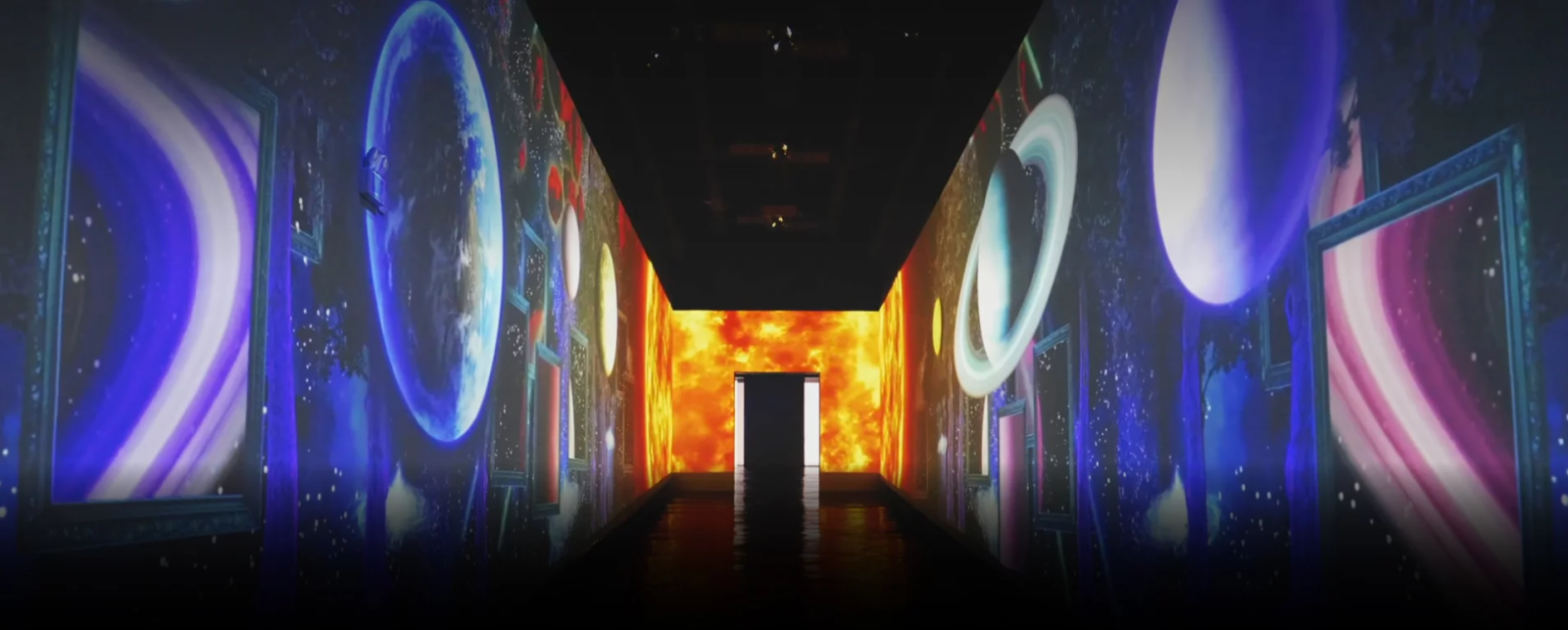

Superior Installation Flexibility in Limited Spaces

Highly installation-flexible for front and floor applications, LU960ST2 short throw DLP projector is the best choice for indoor simulation training and commercial space exhibitions.

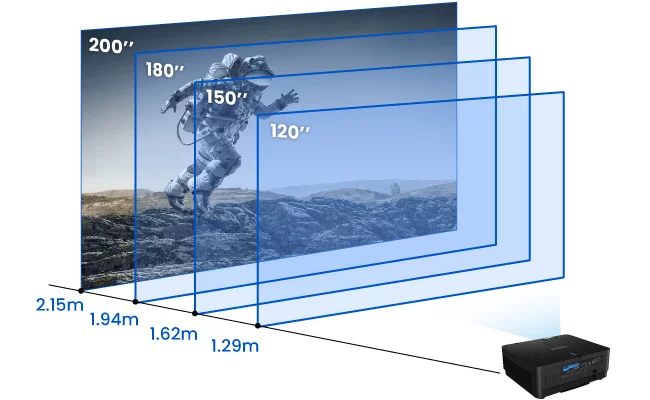

Unobstructed Viewing with 0.5 Throw Ratio

The LU960ST2 is equipped with a TR 0.5 short-throw lens to create up to 200-inch sharp and clear images within only 2 meters away. This enables the audience to stand closer to the screen without casting a shadow.

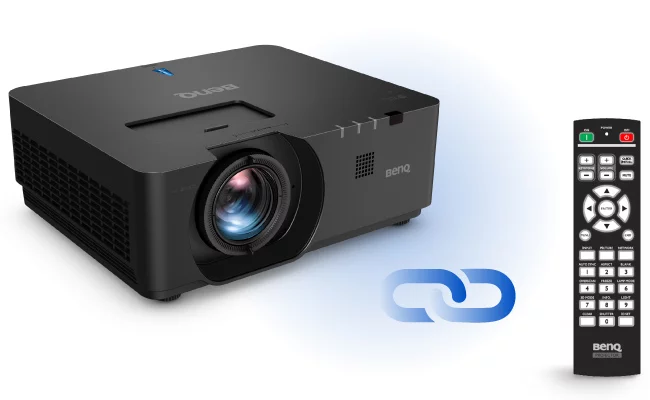

Remote Control Projector ID Setting for Independent Control

LU960ST2’s remote controller ID pairing avoids signal interference with multi-projector setup on one location. The wired remote control feature also improves the installation stability when adjusting projector placement.







High Resolution and Accurate Color Transmission

HDMI In/ out

HDMI 2.0 cable can handle 18Gbps bandwidth, allowing for 4K 60Hz plus HDR metadata at low latency and faster refresh rates.

DisplayPort

The high bandwidth of DisplayPort 1.2a allows increased resolutions, higher refresh rates, and greater color depth. In addition, the dual barbs on the connector provide a friction lock, and an option for a mechanical latch.

3D Sync In /3D Sync out

Connect up to 4 projectors and project 3D content together via a single PC.

HDBaseT

HDBaseT connectivity combines Video, Audio, RS-232 and LAN control signals from multiple sources into a single RJ-45 cable, ensuring seamless transmission at up to 100 meters.







Specifications

Display
Brightness (ANSI lumens) 5200
Native Resolution WUXGA (1920x1200)
Native Aspect Ratio 16:10
Contrast Ratio (FOFO)3,000,000:1
Display Color30-bit (1.07 billion colors)
Light SourceLaser
Light Source Lifea. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 70000 hrs



Optical
Throw Ratio 0.5
Zoom Ratio Fixed
Lens Manual
Projection Offset (Full-Height) 0%
Keystone Adjustment 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
Lens Shift Vertical -55%~ +55%
Lens Shift Horizontal -23%~ +23%

Rec. 709 Coverage 92%
Picture Modes 3D, Bright, HDR10, HLG, Presentation, Simulator, sRGB, User 1, User 2, Video



Compatibility
Input Lag 8.3 ms (1080P 120Hz),
Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency 15K~135KHz
Vertical Scan Rate 23~120Hz

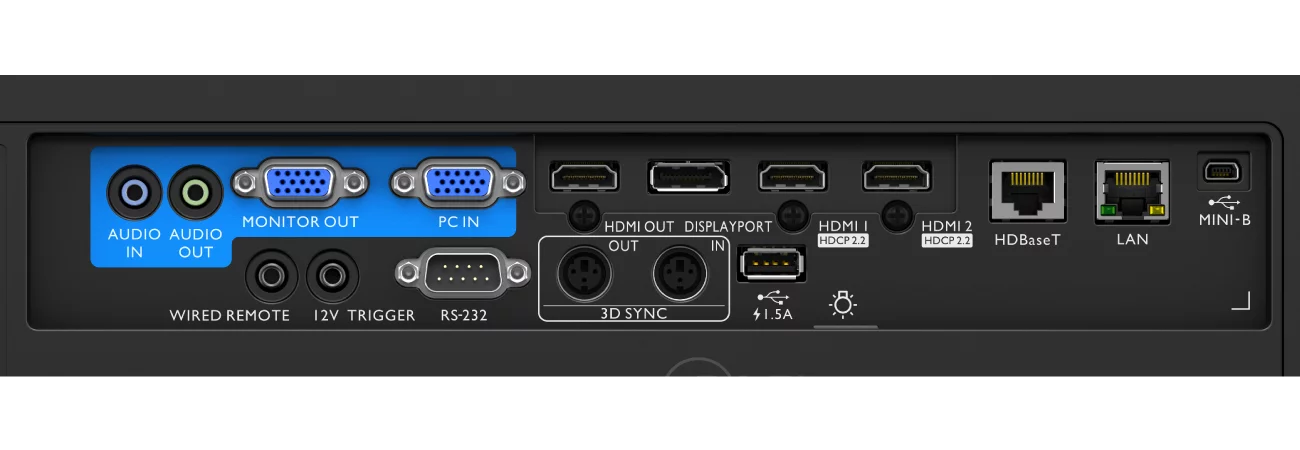

I/O Interface
PC in (D-sub 15pin) (x1), PC in-1
Monitor out (D-sub 15pin) (x1)
HDMI in (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
Monitor out (HDMI) (x1)
Display Port (x1)
LAN (RJ45) (x1)
HDBaseT (RJ45) (x1), Control/Video/Audio
3D Sync in (x1)
3D Sync out (x1)
USB Type A (x1), USB Type A-1 (2.0/Power Supply1.5A)
USB Type Mini B (x1), USB Type Mini B-1(service)
RS232 in (DB-9pin) (x1)
Wired Remote in (3.5mm Mini Jack) (x1)
DC 12V Trigger (3.5mm Jack) (x1)

Audio
Speaker (x1), 10W
Audio in (3.5mm Mini Jack) (x1)
Audio out (3.5mm Mini Jack) (x1)



Environment
Operating Temperature 0~40℃
Power Supply AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) 450W
Stand-by Power Consumption <0.5W
Network Stand-by Power Consumption <2W



Dimension & Weight
Dimensions (WxHxD) (mm) 479.6 x 182.8 x 402
Net Weight (kg) 12



Projection System
Projection System DLP
