Проектор BenQ LU960ST, DLP, WUXGA (1920x1200), 3 000 000:1, 5500lm, DisplayPort, HDMI, VGA, RJ45, USB, RS232

BenQ LU960ST

DLP Laser Projector with Easy Maintenance

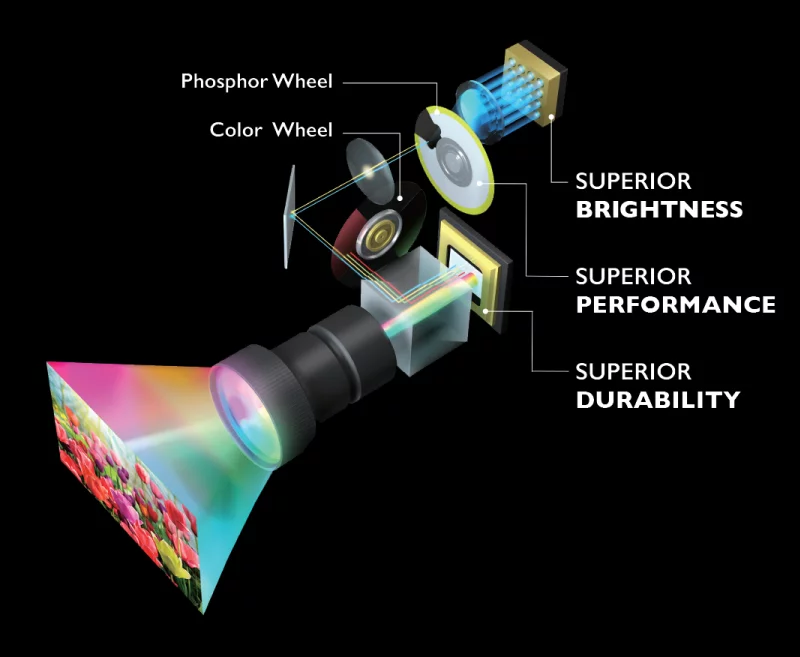

Revolutionary Laser Technology

Extending its full line of revolutionary laser projectors, the world’s No.1 DLP brand BenQ presents LU960ST, especially designed for short throw fixed lens installation and reserves installation flexibility to merge into limited space.

DLP Technology for Long Lasting Vibrant Color

BenQ laser projectors run on Academy Award-winning DLP technology to deliver long-lasting and reliable color for the life of the projector. The DLP chip is rated for 200,000 hours and will display stunning whites and accurate colors without the risk of yellowing over time.

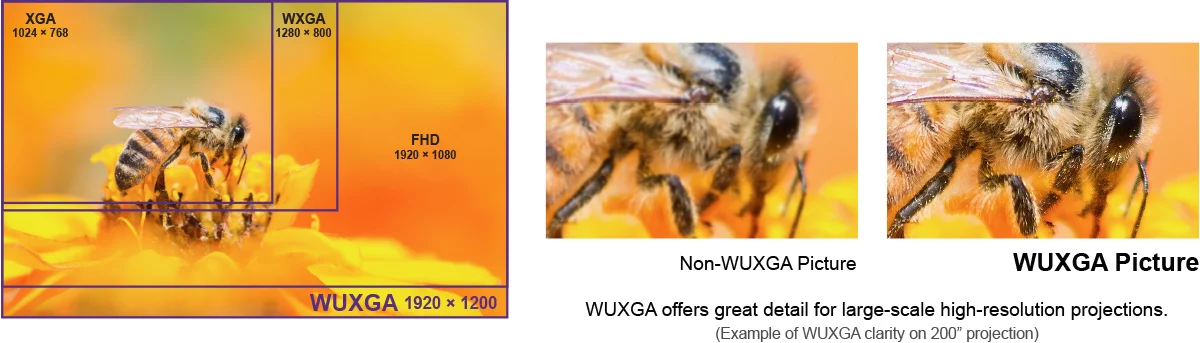

WUXGA Resolution for Enhanced Detail and Expanded Content

With an impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, BenQ LU960ST laser projector offers greater details and stunning image clarity when projecting high resolution images.

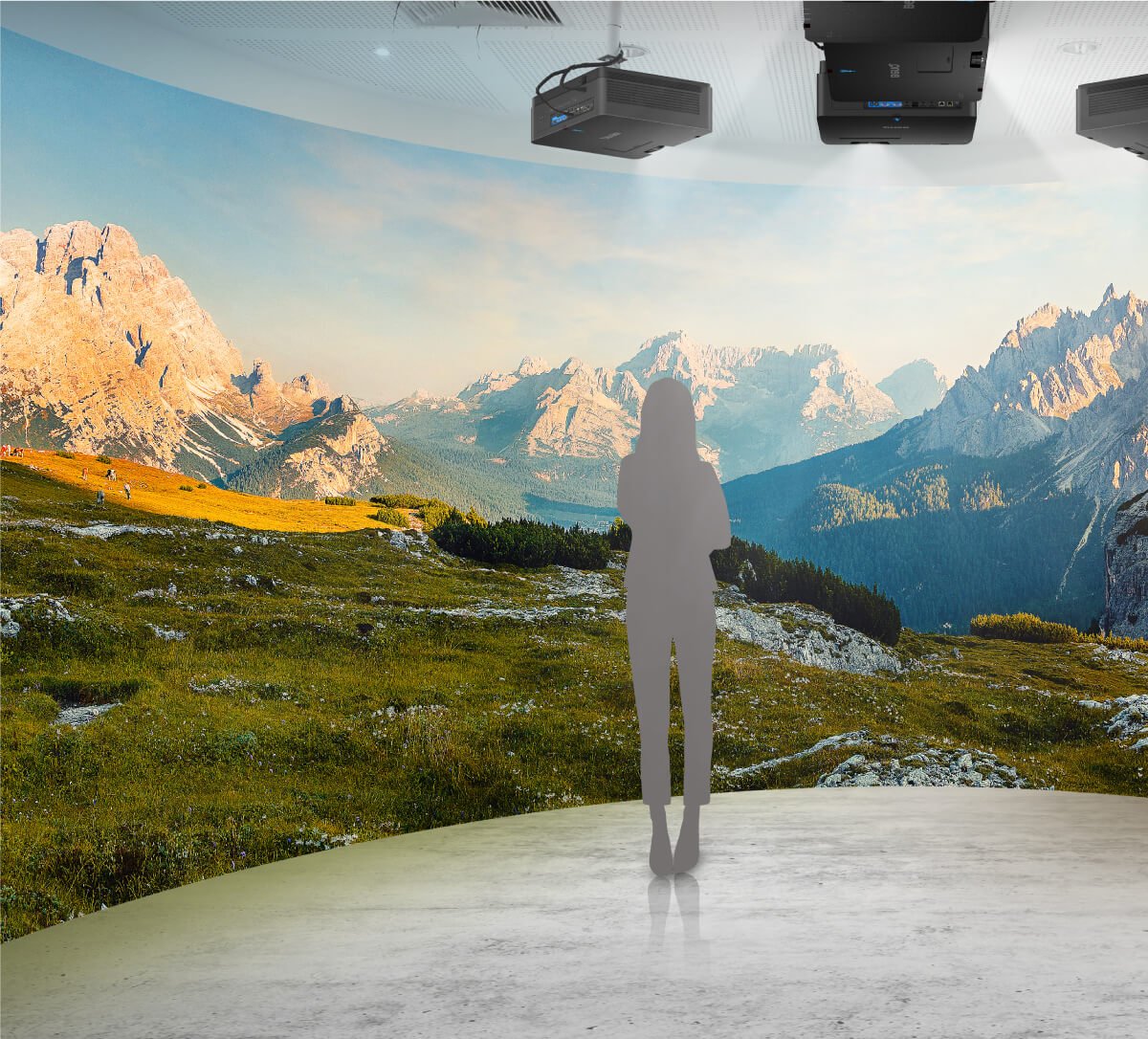

 Short Throw Design for Unobstructed Viewing Without Space Constraints

Ideal for indoor simulation and retail applications, the LU960ST is equipped with a short-throw lens that will fill up a 12-foot-wide screen from less than 10 feet away. This enables you to place the projector so that you can stand closer to the screen without casting a shadow.

Specifications

Display

Brightness (ANSI lumens) 5500

Native Resolution WUXGA (1920x1200)

Native Aspect Ratio 16:10

Contrast Ratio (FOFO) 3,000,000:1

Display Color 30-bit (1.07 billion colors)

Light Source Laser

Light Source Life a. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 75000 hrs

Optical

Throw Ratio 0.77-0.84

Zoom Ratio 1.1x

Lens F/# = 1.9 ~ 1.954,f = 8.14 ~ 8.921 mm

Projection Offset (Full-Height) 0%

Keystone Adjustment 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees

Lens Shift Vertical -62%~ +62%

Lens Shift Horizontal -24%~ +24%


Rec. 709 Coverage 92%

Picture Modes 3D, Bright, DICOM SIM, HDR10, HLG, Presentation, sRGB, User 1, User 2, Video

Compatibility

Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency 15K~135KHz

Vertical Scan Rate 23~120Hz

I/O Interfacе

PC in (D-sub 15pin) (x1), PC in-1

Monitor out (D-sub 15pin) (x1)

HDMI in (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)

Monitor out (HDMI) (x1)

Display Port (x1)

LAN (RJ45) (x1)

HDBaseT (RJ45) (x1), Control/Video/Audio

3D Sync in (x1)

3D Sync out (x1)

USB Type A (x1), USB Type A-1 (2.0/Power Supply1.5A)

USB Type Mini B (x1), USB Type Mini B-1(service)

RS232 in (DB-9pin) (x1)

Wired Remote in (3.5mm Mini Jack) (x1)

DC 12V Trigger (3.5mm Jack) (x1)

Audio

Speaker (x1), 10W

Audio in (3.5mm Mini Jack) (x1)

Audio out (3.5mm Mini Jack) (x1)

Environment

Operating Temperature 0~40℃

Power Supply AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V) 450W

Stand-by Power Consumption <0.5W

Network Stand-by Power Consumption <2W

Dimension & Weight

Dimensions (WxHxD) (mm)479.6 x 182.8 x 402

Net Weight (kg) 12

Dimensions (WxHXD) (inch) 18.9 x 7.2 x 15.8

Projection System

Projection System DLP
