Проектор BenQ LH720, DLP, Full HD (1920x1080), 100 000:1, 4000lm, HDMI

BenQ LH720



BlueCore Laser Technology

Revolutionary BlueCore Laser Technology

The world’s No. 1 DLP brand BenQ introduces its full line of innovative corporate BlueCore laser projectors with LX720, unleashing the XGA resolution for professional presentation in corporate settings.

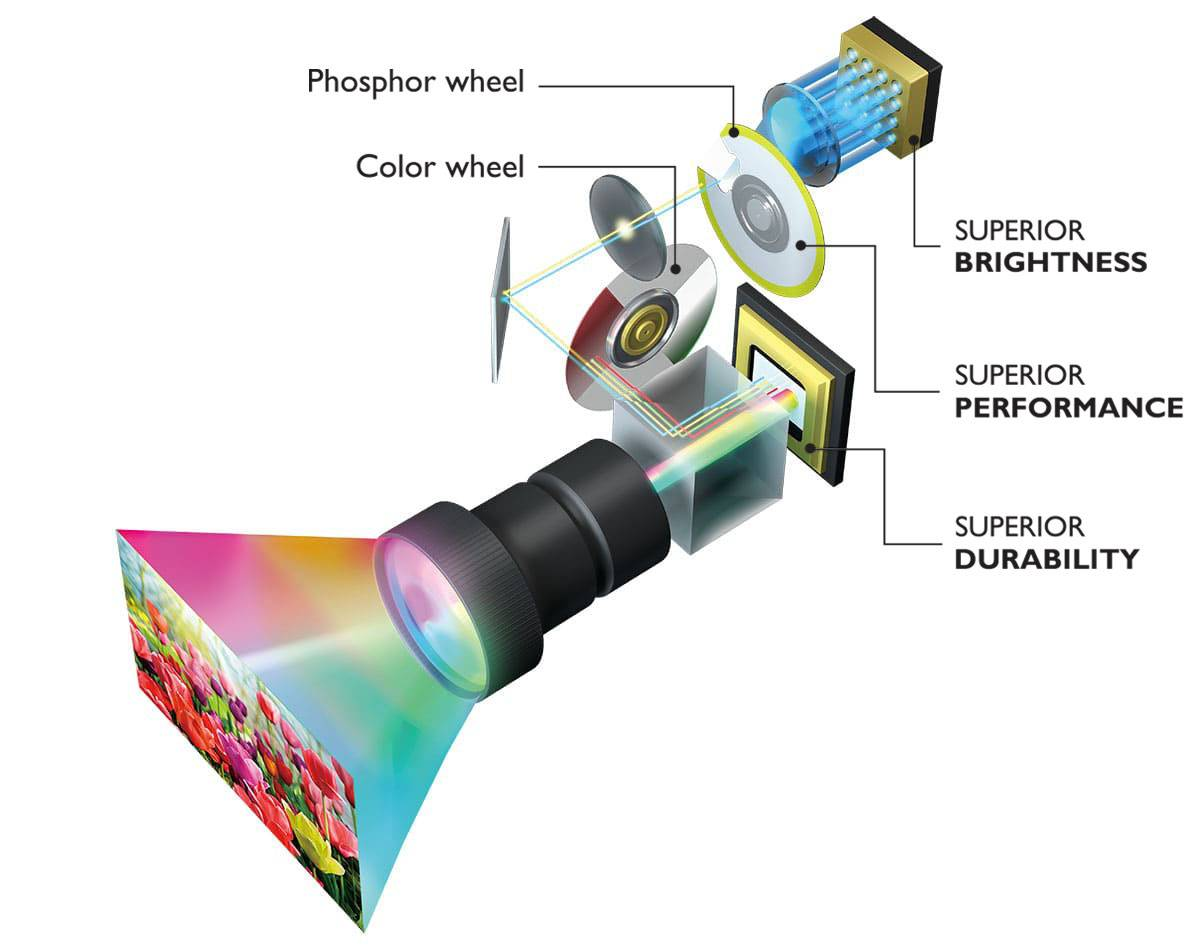

Superior Brightness Precision-Aligned High-Output Laser Source Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving efficacy.
Superior Performance Secondary Yellow-Infused Color Wheel Dual synchronized BlueCore color wheel utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Superior Durability Hermetically Sealed DLP Chip Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation. Superior Image Quality

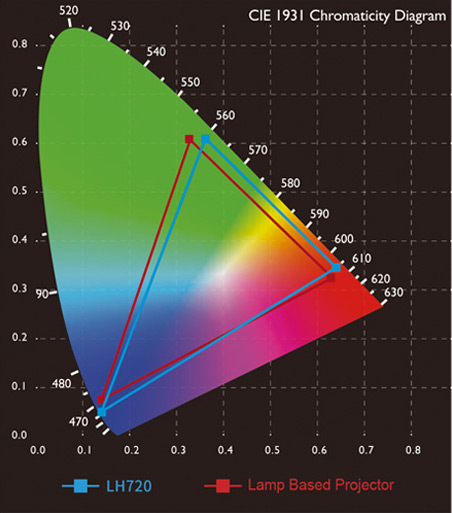

Dual Color Wheels Produce 90% Rec.709 Color Coverage for Optimal Color Performance LH720’s powerful BlueCore laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 90% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LH720 dramatically enhances color saturation to ensure superior presentation quality.

Advanced Infographic Mode for Supreme Presentation Quality

BenQ Infographic Mode perfectly fits the current corporate trend of mastering infographic-heavy presentations that all modern enterprises are striving for. Infographic Mode is great for showcasing the text and graphics of infographic in detail due to LH720’s high brightness and better color gradation through the 90% Rec.709 color coverage, ensuring more saturated and lively color performance than presentation mode. Additionally, Vivid Mode is designed for supreme color performance during video or image presentation.

Infographic Mode

Presentation Mode

Full HD Resolution for Crisp Image Quality and Increased Content Density

With Full HD (1920 x 1080) native resolution in expended 16:9 aspect ratio, LH720 offers subtle details, ultra-sharp readability and highly enhanced display capacity for professional presentation.

High Brightness and LumiExpertTM Ambient Light Detector for Maximum Eye Comfort

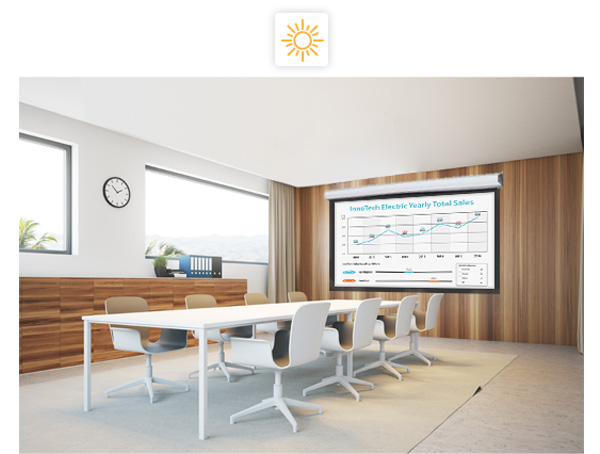

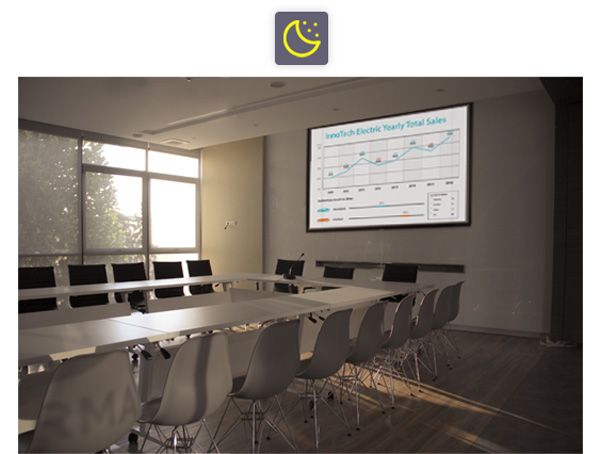

LH720's 4000lm high brightness allows presenters and participants to deliver presentation in comfortably lit medium-sized conference rooms (20-40 people). BenQ corporate projector’s new LumiExpertTM technology can automatically detect the ambient light conditions of a meeting room and adjust the projector’s brightness to maximize clarity and comfort. Whether presenting in the dark boardroom or a brightly-office, LumiExpertTM makes sure the BenQ Corporate projectors delivers peak performance.



Specifications



Brightness

4,000 ANSI Lumens



Resolution

1920x1080



Aspect Ratio

16:9 (HD)



Contrast

100,000:1 (full on/off)



Display Type

2 cm DLP x 1



Color Wheel

6 segments



Color Processing

10-bit



Video Modes

720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i



Data Modes

MAX 1920x1200



Lamp Type

Laser Phosphor



Lamp Life

20,000 hours



Lens Shift

Vertical +14%



Throw Distance

1.4 m - 9.2 m



Image Size

76 cm - 763 cm



Throw Ratio

1.38:1 - 2.13:1 (D:W)



Digital Keystone

Horizontal & Vertical



Projector Size

16 cm x 41 cm x 27 cm (HxWxD)



Weight

5.6 kg



Audible Noise

33 dB  / 29 dB (Eco)



Internal Speakers

10.0 Watts Mono



Power

320 Watts 100V - 240V



Connection Panel

12-Volt Trigger

Audio In: Mini Jack

Audio In: RCA

Audio Out: Mini Jack

Composite: RCA

HDMI

HDMI (MHL)

Network: RJ-45

RS232: DB-9pin

S-Video

USB x 2

VGA In: Dsub-15pin x 2

VGA Out: Dsub-15pin



Features

Geometric Correction

Blackboard Mode

Crestron RoomView™
