be quiet! Straight Power 12
FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.0 specifications Straight Power 12 1500W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come. | |
THE NEW STANDARD OF POWER For massive transient loads Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. | |

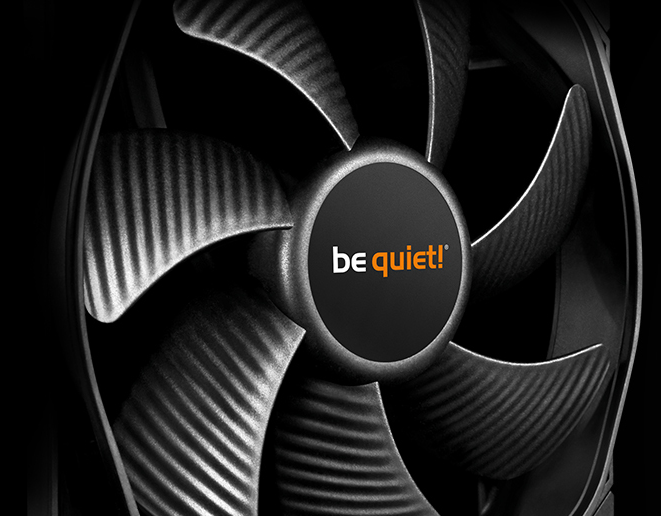

SILENT WINGS FAN Provides virtually inaudible operation The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption. | |

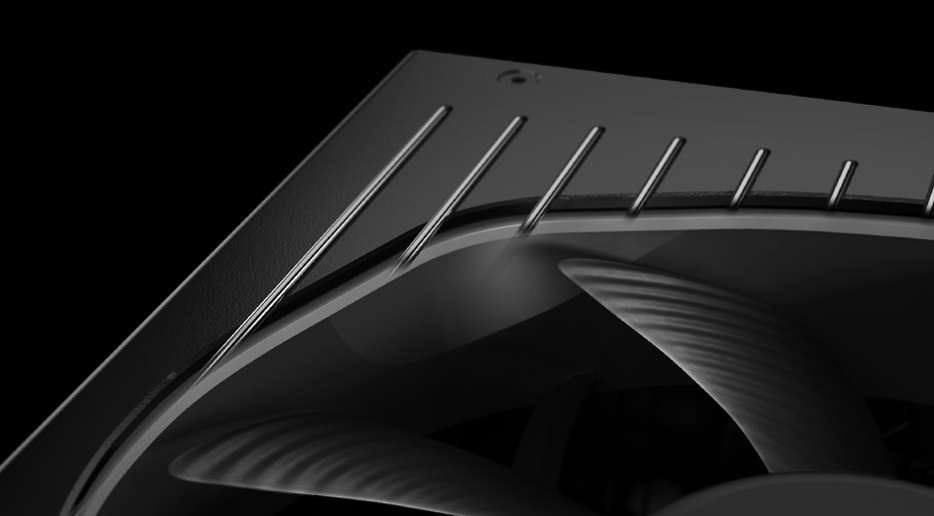

FLAWLESS COOLING CONCEPT For a longer lifespan The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan. | |

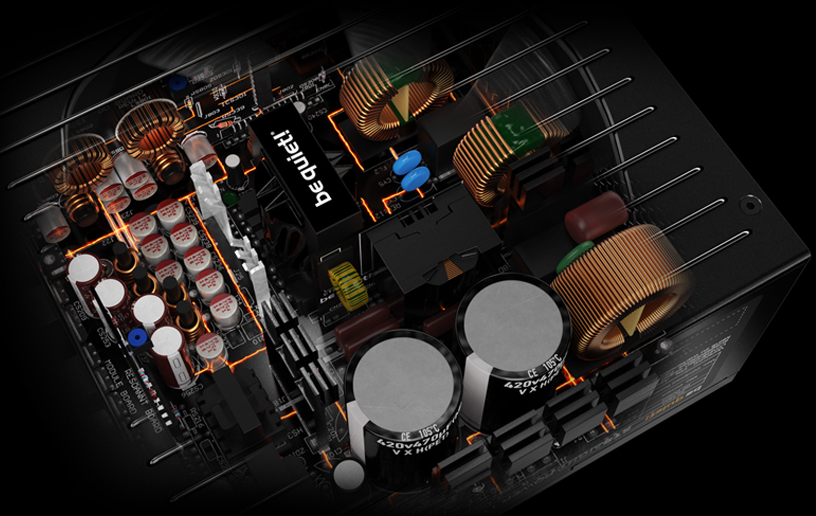

STATE-OF-THE-ART TECHNOLOGIES Rock-steady signal stability and efficiency With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation. | |

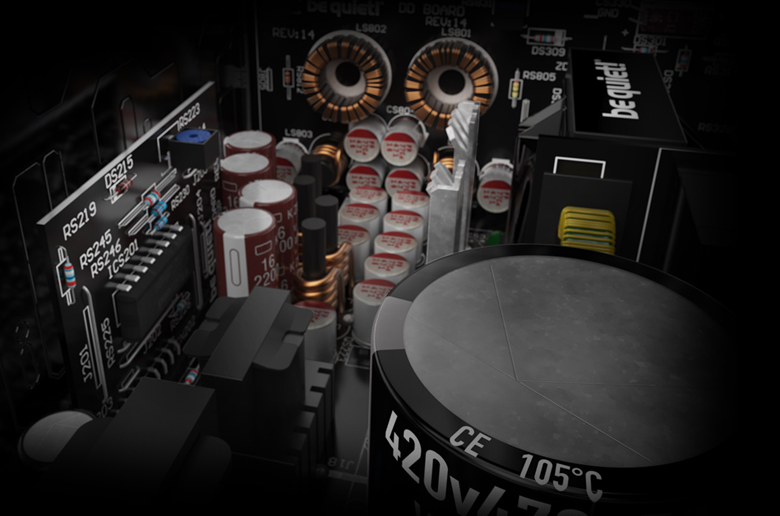

JAPANESE 105°C CAPACITORS A testament to high quality Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life. |
Specifications
General data
Model | Straight Power 12 1500W |
Continuous power (W) | 1500 |
Peak power (W) | 1570 |
Form factor | Version 3.0 |
Form factor EPS 12V | Version 2.92 |
Topology | Full bridge + LLC + SR + DC/DC |
Digitally controlled | - |
Voltage (Vac) | 110 - 240 |
Frequency (Hz) | 50 - 60 |
Input current (A) | 15 / 9 |
Power factor at 100% load | >0.99 |
Modern standby | Yes |
Power consumption in standby (W) | 0.15 |
Average life time (h / 25°C) | >100,000 |
Operating temperature up to (°C) | 40 |
Efficiency
80 PLUS certification | Platinum |
Efficiency (%) at 230V, 2% load | 65.0 |
Efficiency (%) at 230V, 10% load | 90.5 |
Efficiency (%) at 230V, 20% load | 93.1 |
Efficiency (%) at 230V, 50% load | 93.9 |
Efficiency (%) at 230V, 100% load | 91.9 |
Fan and cooling technology
Fan | Silent Wings |
Fan size (mm) | 135 |
Bearing technology | FDB |
Motor technology | 6-pole fan motor |
Max. fan speed (rpm) | 2600 |
dB(A) at 10% load | 9 |
dB(A) at 20% load | 9 |
dB(A) at 50% load | 12.7 |
dB(A) at 100% load | 36.4 |
Output
Multi-rail operation (12V rails) | - |
12V single rail operation | Yes |
Overclocking key | - |
+3.3V (A) | 25 |
+5V (A) | 25 |
+12V1 (A) | 125 |
+12V2 (A) | - |
+12V3 (A) | - |
+12V4 (A) | - |
+12V5 (A) | - |
+12V6 (A) | - |
-12V (A) | 0.5 |
+5Vsb (A) | 3 |
Max. combined power 12V (W) | 1500 |
Max. combined power 12VHPWR (W) | 1000 |
Max. combined power 3.3V + 5V (W) | 150 |
Hold-up time at 100% load (ms) | 20.1 |
Hold-up time at 80% load (ms) | 26.2 |
Power good signal (ms) | 100 - 150 |
Cables and connectors
Modular cables | Yes |
Sleeved cables | Yes |
Flat cables | - |
Maximum cable length (cm) | 100 |
Cable length to motherboard (cm) | 60 |
No. of cables | 10 |
ATX-Motherboard (20+4-pin) | 1 |
P4+4 (CPU) | 1 |
P8 (CPU) | 1 |
P4 (CPU) | - |
12VHPWR cables | 2 |
PCI-e 6+2-pin (GPU) | 4 |
PCI-e 6-pin (GPU) | - |
SATA | 9 |
PATA | 2 |
FDD (Floppy) | - |
Protection
OTP (over temperature protection) | Yes |
OCP (over current protection) | Yes |
OPP (over power protection) | Yes |
SCP (short circuit protection) | Yes |
OVP (over Voltage protection) | Yes |
UVP (under Voltage protection) | Yes |
SIP (Surge & Inrush protection) | Yes |
Safety certification
BSMI | Yes |
CB | Yes |
CCC | - |
CE | Yes |
cRUus | - |
cTUVus | Yes |
CU | Yes |
FCC | Yes |
RCM | Yes |
TÜV | Yes |
UKCA | Yes |
Environmental directives
Energy Star | 8.0 |
ErP | Yes |
WEEE | Yes |
RoHS | Yes |
Triman | Yes |
Casing
Dimensions without cable (L x W x H), (mm) | 180 x 150 x 86 |
Weight (kg) | 2.12 |
Color | Black |
