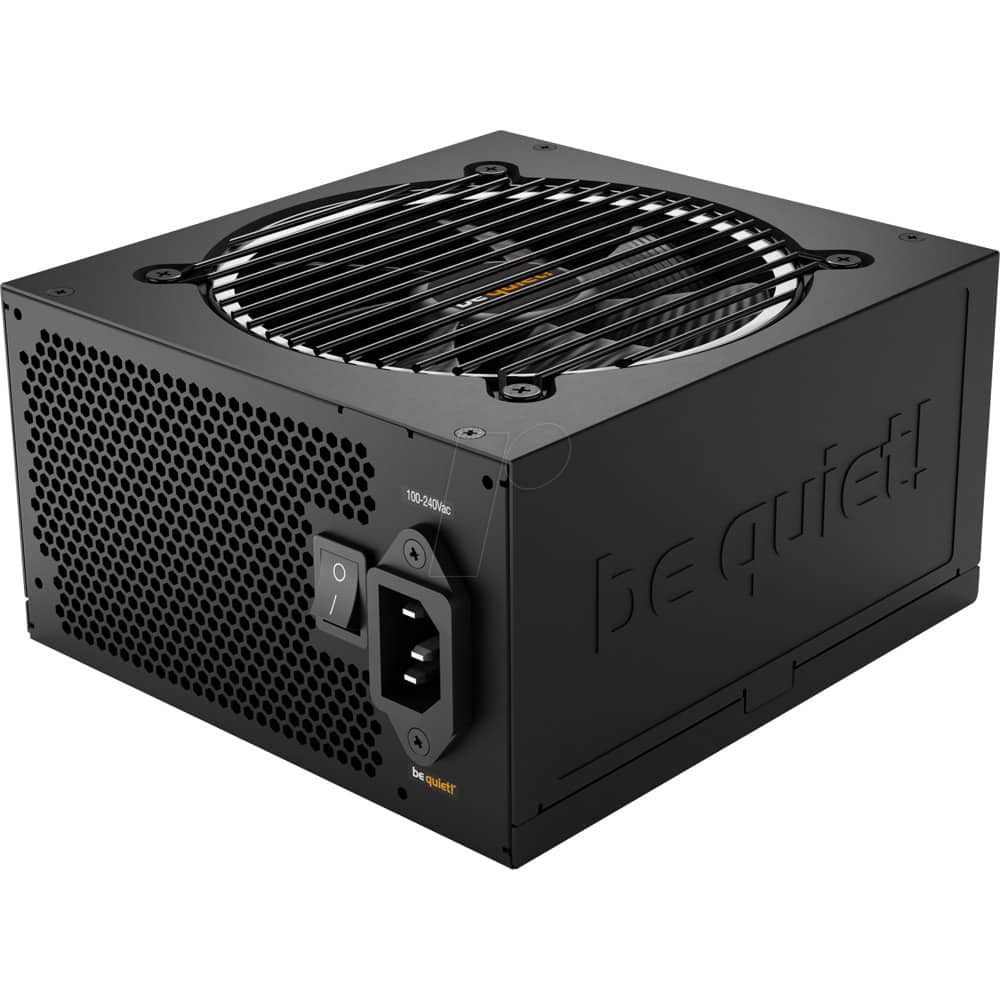

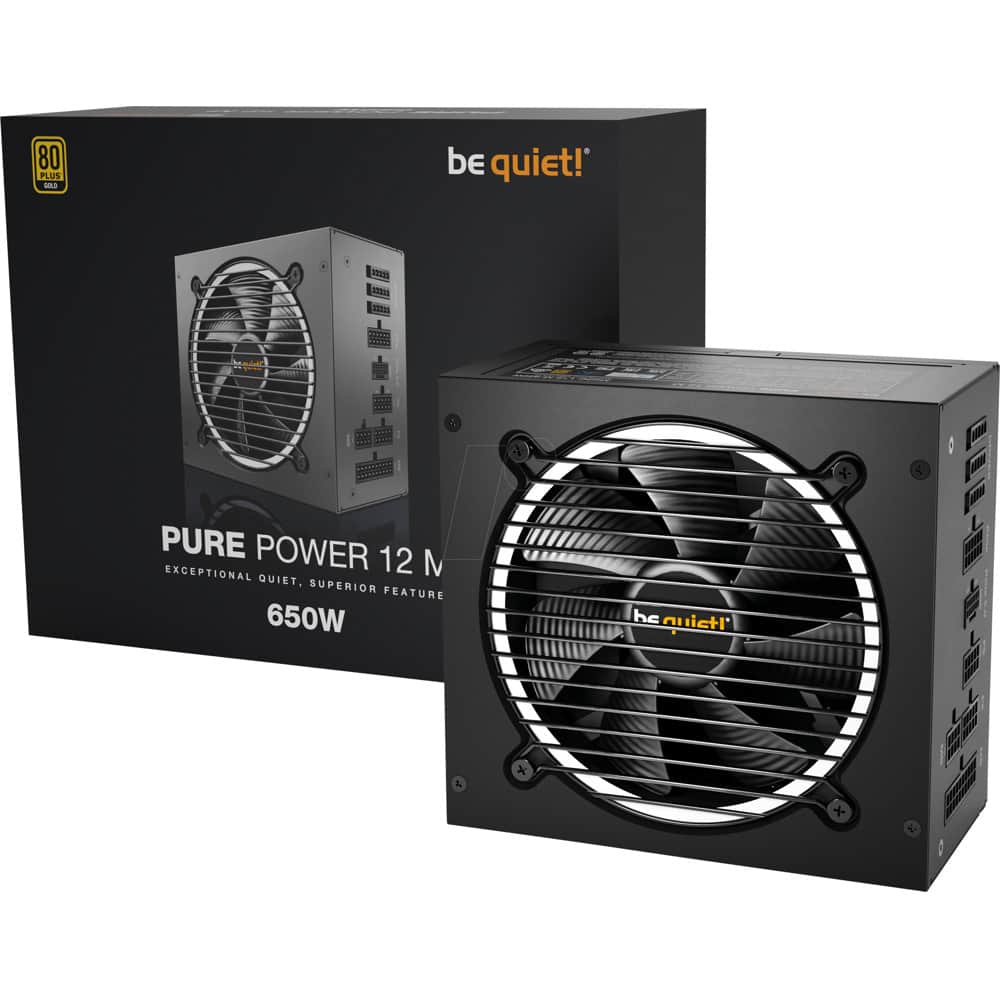

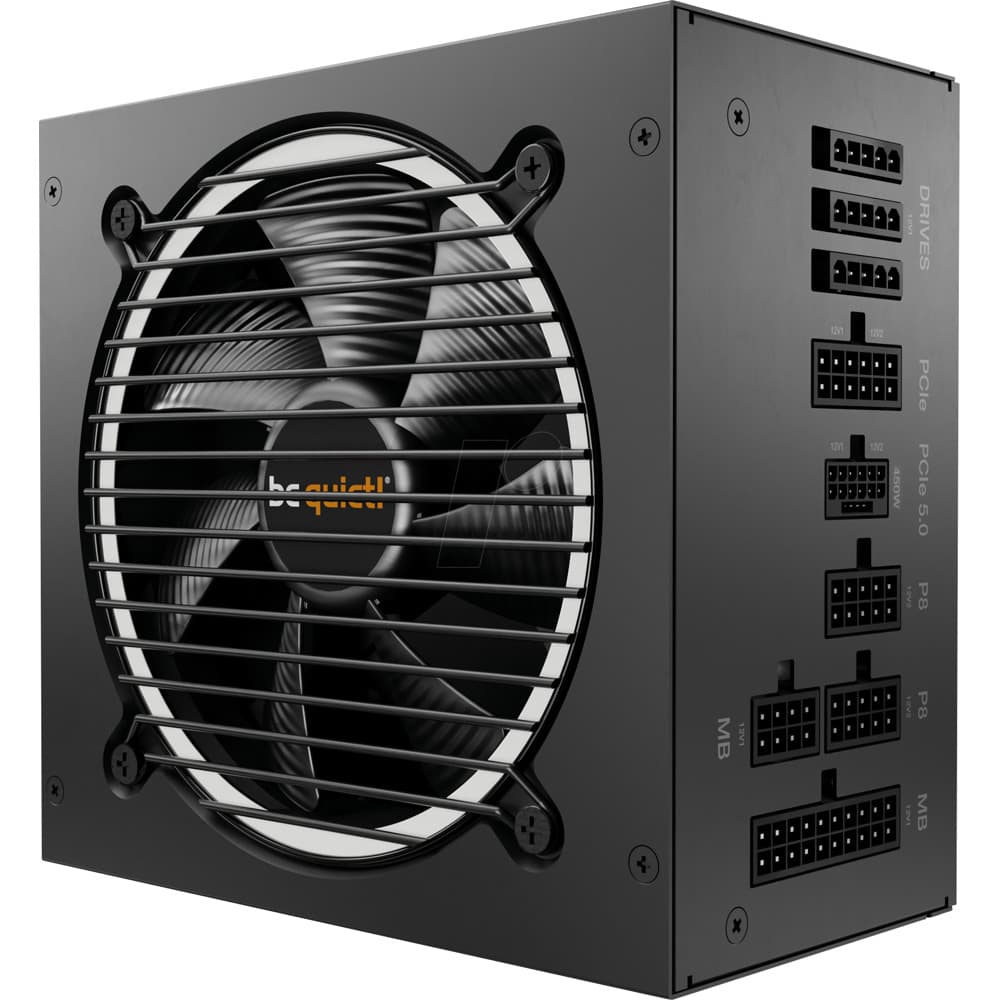

be quiet! PURE POWER 12 M 650W BN342
be quiet! PURE POWER 12 M 650W BN342be quiet! PURE POWER 12 M 650W BN342be quiet! PURE POWER 12 M 650W BN342be quiet! PURE POWER 12 M 650W BN342

Захранване Be Quiet! PURE POWER 12 M 650W (BN342), 650W, Active PFC, 80+ Gold, 120mm вентилатор

id 249109 Код: PWRPCBEQUIETBN342
234.06 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиДокументацияВземи на изплащане



FUTURE-PROOF YOUR SYSTEM

Fulfills all ATX 3.0 specifications
Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.




THE NEW STANDARD OF POWER

For massive transient loads
Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards




UNPRECEDENTED SILENT OPERATION

Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.









Technical Data

GENERAL

Model 650W
Article no. BN342
EAN code 4260052189474
Voltage (Vac) / Frequency (Hz) 100-240 / 50-60
Dimensions (L x W x H) (mm) 160 x 150 x 86
ATX 12V 3.0 / ATX 12V 2.x / EPS 12V 2.92 Y/Y/Y
Silence-optimized be quiet! fan (mm) 120
Noise level (dB(A)) at 10 / 20 / 50 / 100% load 8.1 / 8.2 / 9.1 / 19.9
12V rail (Multi-Rail) / 12V Single Rail 2 / -
Overclocking Key / Jumper - / -
Power Good signal 100-150ms
PFC active
Certification 80 PLUS ® Gold
Efficiency (%) at 230V, 2% / 10% / 20 % / 50% / 100% load 73.3 / 86.4 / 90 / 92.7 / 90.5
Energy Star 8.0 compatible Y
ErP 2014 ready / Power in stand-by (W) Y / <0.1
OCP, OVP, UVP, SCP, OPP, OTP Y
Lifetime of PSU at 25°C (h) >100,000



CABLES

No. of cables 7
Maximum cable length (cm) 95
Length of ATX-connection cable (cm) 55
Modular cable management Y
Sleeved cables 20+4-Pin
Flat cables P4+4, P4, PCIe, drives



CONNECTORS

ATX-mainboard (20+4-pin) Y
12VHPWR cable | W 1 | 450
PCI-express (6+2-pin) 2
P8/P4 connector 1x P4+4, 1x P4
S-ATA 5
P-ATA 2


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри be quiet!
    Виж всички Захранвания Настолни компютри в категорията
    Документация
    Технически характеристики
    Изходна мощност:  650 W
    Модулен блок:  Да
    Форм фактор:  ATX
