General data
Model | Pure Power 12 M 550W |
Continuous power (W) | 550 |
Peak power (W) | 600 |
Form factor | Version 3.0 |
Form factor EPS 12V | Version 2.92 |
Topology | LLC + SR + DC/DC |
Digitally controlled | - |
Voltage (Vac) | 100 - 240 |
Frequency (Hz) | 50 - 60 |
Input current (A) | 10 / 5 |
Power factor at 100% load | >0.98 |
Modern standby | ✓ |
Power consumption in standby (W) | <0.1 |
Average life time (h / 25°C) | >100,000 |
Operating temperature up to (°C) | 40 |
-
Efficiency
80 PLUS certification | Gold |
Efficiency (%) at 230V, 2% load | 70.4 |
Efficiency (%) at 230V, 10% load | 85.2 |
Efficiency (%) at 230V, 20% load | 89.3 |
Efficiency (%) at 230V, 50% load | 92.8 |
Efficiency (%) at 230V, 100% load | 90.9 |
-
Fan and cooling technology
Fan | Silence-optimized be quiet! fan |
Fan size (mm) | 120 |
Bearing technology | Rifle |
Motor technology | 4-pole fan motor |
Max. fan speed (rpm) | 1800 |

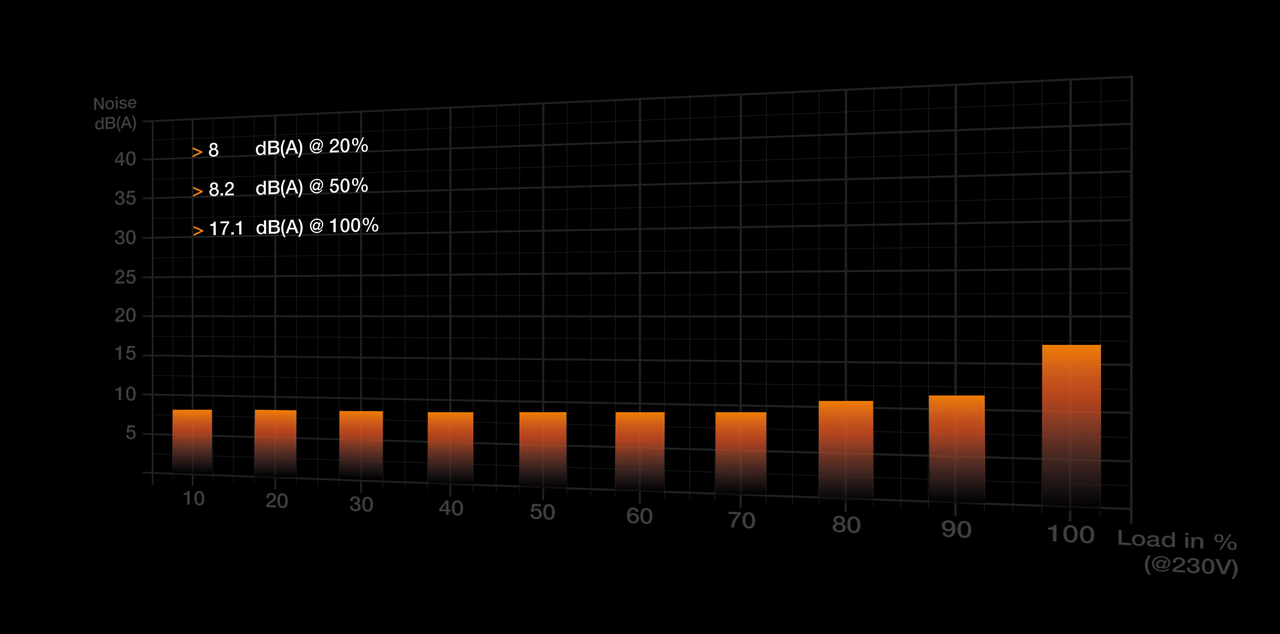

dB(A) at 10% load | 8 |
dB(A) at 20% load | 8 |
dB(A) at 50% load | 8.2 |
dB(A) at 100% load | 17.1 |
-
Output
Multi-rail operation (12V rails) | 2 |
12V single rail operation | - |
Overclocking key | - |
+3.3V (A) | 20 |
+5V (A) | 20 |
+12V1 (A) | 28 |
+12V2 (A) | 24 |
+12V3 (A) | - |
+12V4 (A) | - |
+12V5 (A) | - |
+12V6 (A) | - |
-12V (A) | 0.3 |
+5Vsb (A) | 3 |
Max. combined power 12V (W) | 550 |
Max. combined power 3.3V + 5V (W) | 120 |
Hold-up time at 100% load (ms) | 19 |
Power good signal (ms) | 100 - 150 |
-

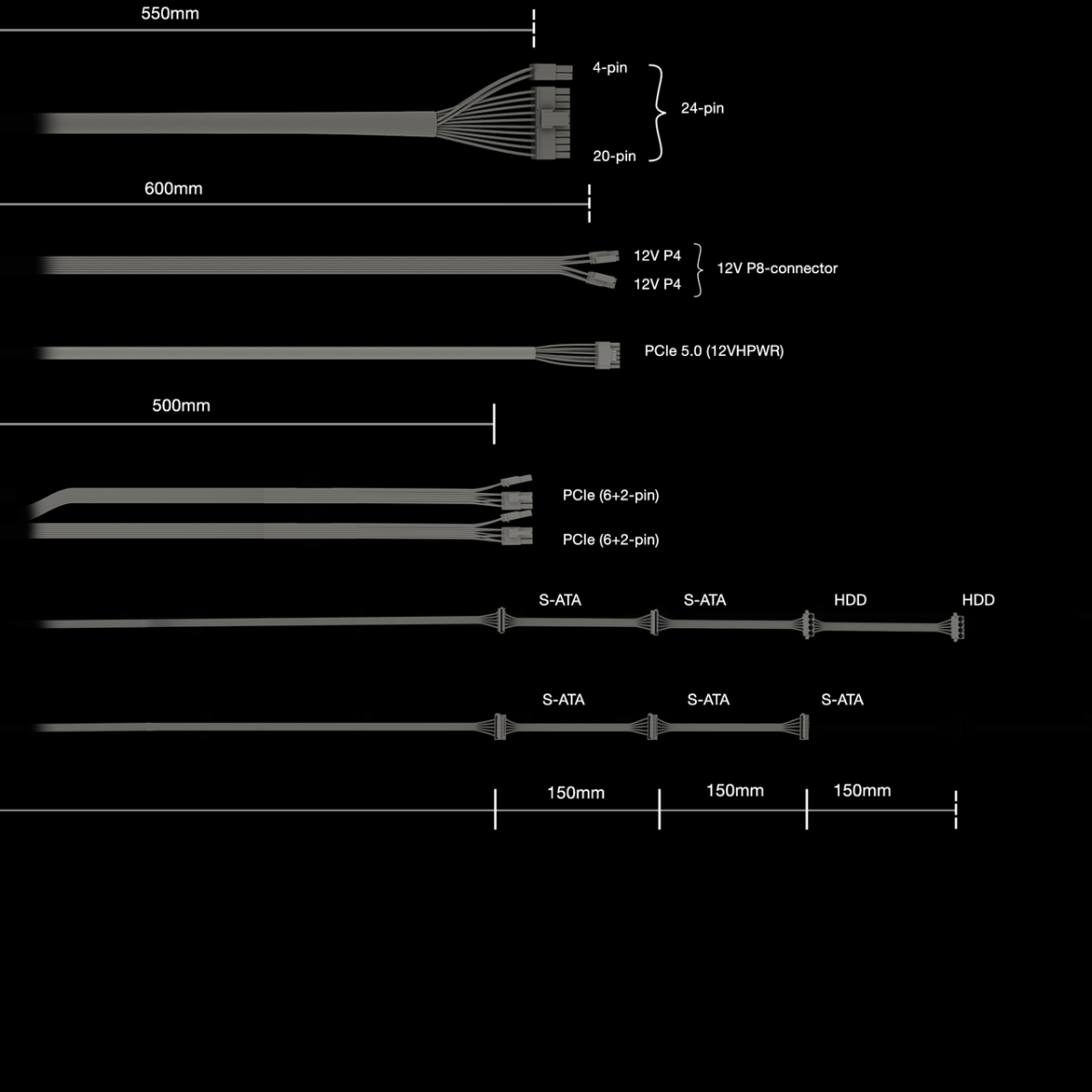

Cables and connectors
Modular cables | ✓ |
Sleeved cables | 20+4 pin |
Flat cables | P4+4, P8, PCIe, drives |
Maximum cable length (cm) | 95 |
Cable length to motherboard (cm) | 55 |
No. of cables | 6 |
ATX-Motherboard (20+4-pin) | 1 |
P4+4 (CPU) | 1 |
P8 (CPU) | 1 |
P4 (CPU) | - |
12VHPWR cable / W | 1 / 300 |
PCI-e 6+2-pin (GPU) | 2 |
PCI-e 6-pin (GPU) | - |
SATA | 5 |
PATA | 2 |
FDD (Floppy) | - |
-
Protection
OTP (over temperature protection) | ✓ |
OCP (over current protection) | ✓ |
OPP (over power protection) | ✓ |
SCP (short circuit protection) | ✓ |
OVP (over Voltage protection) | ✓ |
UVP (under Voltage protection) | ✓ |
SIP (Surge & Inrush Protection) | ✓ |
-
Safety certification
BSMI | ✓ |
CB | ✓ |
CCC | ✓ |
CE | ✓ |
cRUus | - |
cTUVus | ✓ |
CU | ✓ |
FCC | ✓ |
RCM | ✓ |
TÜV | ✓ |
UKCA | ✓ |
-
Casing
Dimensions without cable (L x W x D), (mm) | 160 x 150 x 86 |
Weight (kg) | 1.45 |
Color | Black |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри be quiet!
Виж всички Захранвания Настолни компютри в категорията
Документация
Технически характеристики
Изходна мощност: | 550 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
