be quiet! Pure Base 501 Airflow Window
![]() | REDUCED TO THE MAX Classic appearance Without any distractions, Pure Base 501 Airflow White is reduced to excel at its core functions and is aimed at users that appreciate an |

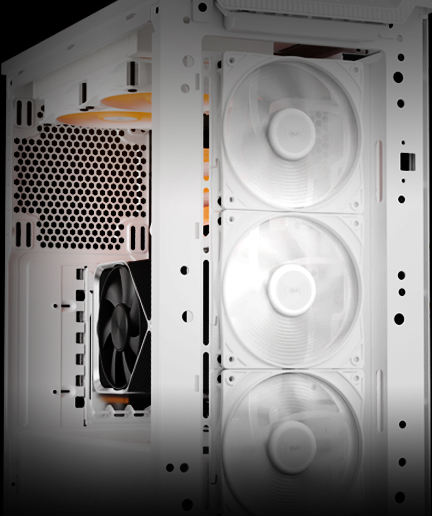

PERFECT CASE FAN Fan blades optimized for high airflow With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow White. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM White provides the performance that is needed for demanding configurations. | ![]() |

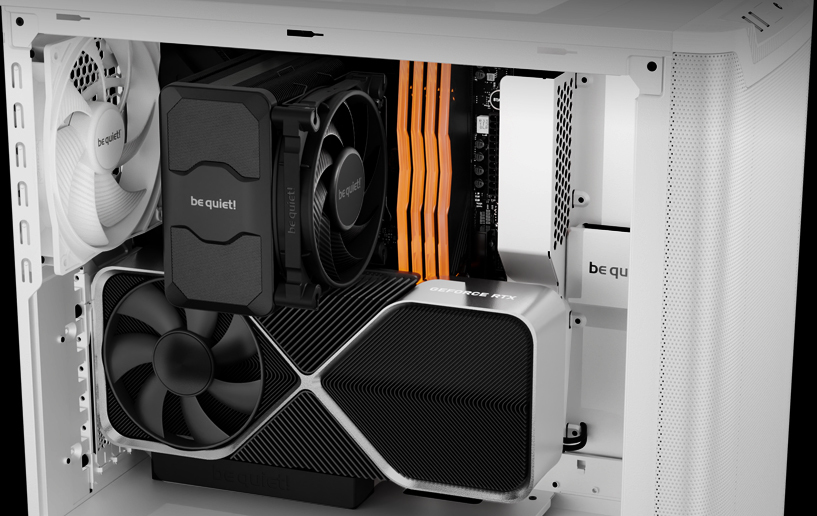

![]() | MORE THAN MEETS THE EYE Generous space for high-end hardware Despite its compact dimensions, Pure Base 501 Airflow White offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm. |

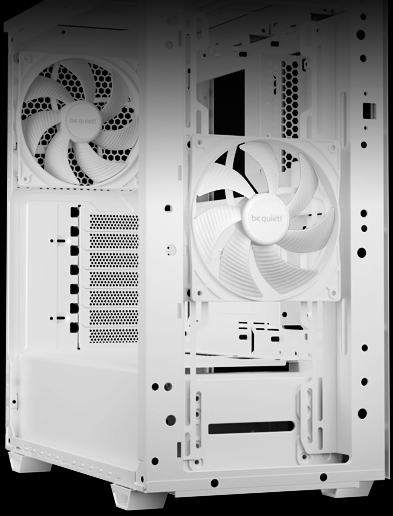

WAY UP! With rotatable PCIe slots Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow White can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation. | ![]() |

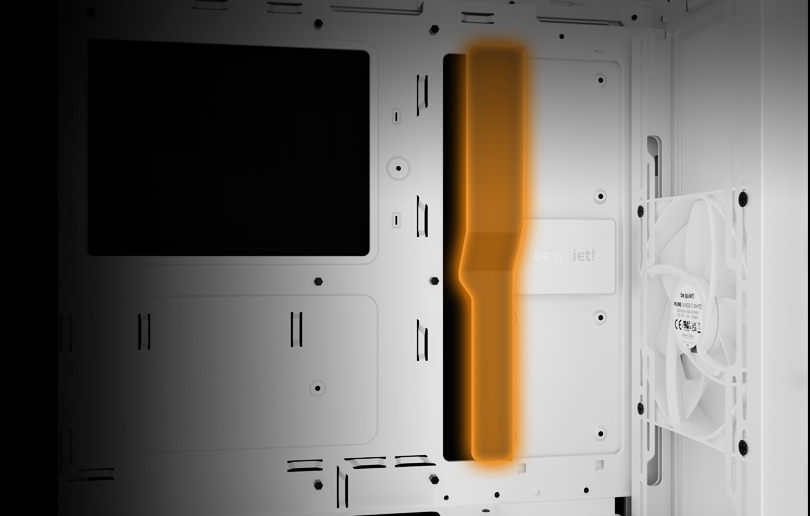

![]() | INVENTORY MANAGEMENT With smart cable routing options As a compact PC case, Pure Base 501 Airflow White optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze. |

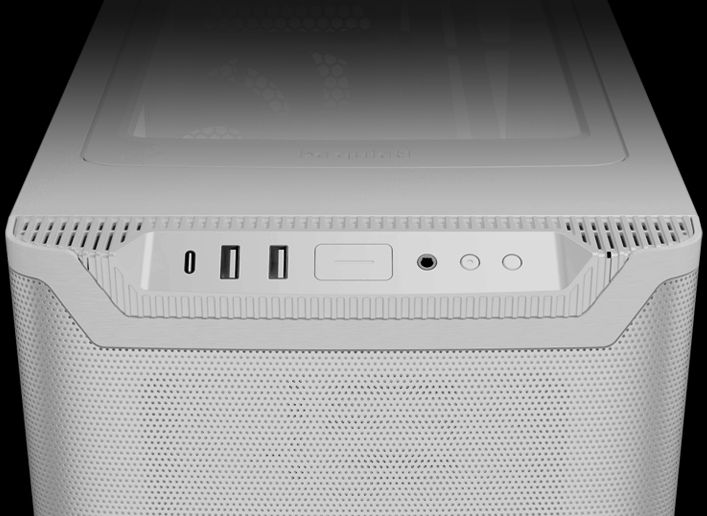

CONNECT WITH ME State-of-the-art technology for your system A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity. | ![]() |
Specifications
General data
Model | Pure Base 501 Airflow White |
Color option | White |
Motherboard compatibility | ATX / M-ATX / Mini-ATX |
Case size excl. stands (L x W x H), (mm) | 450 x 231 x 449 |
Case size incl. stands (L x W x H), (mm) | 450 x 231 x 463 |
Volume (l) | 24.4 |
PSU form factor | ATX PS/2 |
Net weight (kg) | 6.8 |
Expansion slots | 7 |
Pre-installed fans
Fan at top | - |
Fan at front | 1x Pure Wings 3 140mm PWM |
Fan at side | - |
Fan at rear | 1x Pure Wings 3 140mm PWM |
Fan at bottom | - |
Dimensions (L x W x H), (mm) | Front: 140 x 25 x 140 / Rear: 140 x 25 x 140 |
Fan speed at 100% PWM / 12V (rpm) | 1200 |
Airflow at 100% PWM / 12V (CFM / m3/h) | 57.4 / 97.5 |
Air Pressure at 100% PWM / 12V (mm H2O) | 0.96 |
Noise level at 100% PWM / 12V (dB(A)) | 21.9 |
Voltage range (V DC) | 5 - 13.2 |
Input power (W) | 3.6 |
Input current (A) | 0.06 |
Connector | 4-pin PWM |
Lifespan (h / 25°C) | 80,000 |
Fan controller | - |
Maximum fan installation
Maximum fans | 6 |
Top (mm) | 2x 140 / 2x 120 |
Front (mm) | 2x 140 / 3x 120 |
Side (mm) | - |
Rear (mm) | 1x 140 / 1x 120 |
Bottom (mm) | - |
PSU shroud | - |
Optional radiator installation
Top (mm) | 120 / 240 |
Front (mm) | 120 / 140 / 240 / 280 / 360 |
Side (mm) | - |
Rear (mm) | 120 / 140 |
Bottom (mm) | - |
PSU compatibility
Maximum dimensions excl. bottom fan (mm) | 180 |
Maximum dimensions incl. bottom fan (mm) | 180 |
Graphics card
HDD cage (in height of graphics card) installed (mm) | 368 |
HDD cage (in height of graphics card) removed (mm) | 368 |
Maximum PCIe slots with vertical graphics card (pcs.) | 5 |
Drive bay capacity
5.25 bays (pcs.) | - |
3.5 slots (scope of delivery) | 2 |
3.5 slots (max.) | 2 |
2.5 slots (scope of delivery) | 5 |
2.5 slots (max.) | 5 |
Cooling
Max.construction height of CPU cooler unit (mm) | 178 |
Airflow channel | - |
Lighting
LED illumination | - |
LEDs (pcs.) | - |
LED type | - |
LEDs synchronizable with controller/motherboard | - |
I/O Panel
USB 3.2 Gen. 2 Type C | 1 |
USB 3.2 Type A | 2 |
USB 2.0 | - |
HD Audio I/O | Mic + Audio |
Qi charger / Quick Charging Option (W) | - |
Insulation and damping
Top panel insulation mats | - |
Front panel insulation mats | - |
Side panel insulation mats | Yes |
Anti-vibration decoupled HDD | Yes |
Anti-vibration decoupled fan | Yes |
Anti-vibration decoupled PSU | Yes |
Anti-vibration decoupled motherboard-tray | Yes |
Removeable dust filters
Top | 1 |
Front | 1 |
Side | - |
Bottom | 1 |
