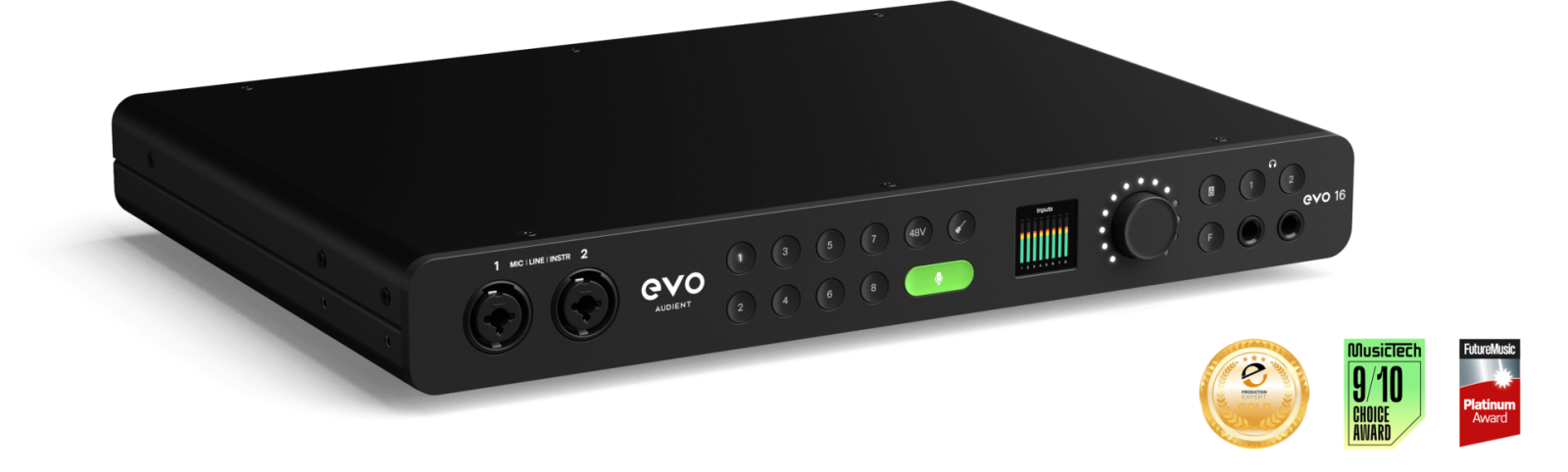

Аудио интерфейс Audient EVO 16, XLR, Optical-in, Optical-out, USB-C, черен

Audient EVO 16



A new way of doing things



Make recording easy



Eight award winning EVO Preamps alongside our advanced converter technology will make everything you do, sound better. Add to that, intelligent mic preamps that set their own levels with Smartgain, the all new, groundbreaking Motion UI control system, and enough I/O firepower to tackle even the biggest of sessions, EVO 16 is truly a studio powerhouse, designed from the ground up to make recording easy.

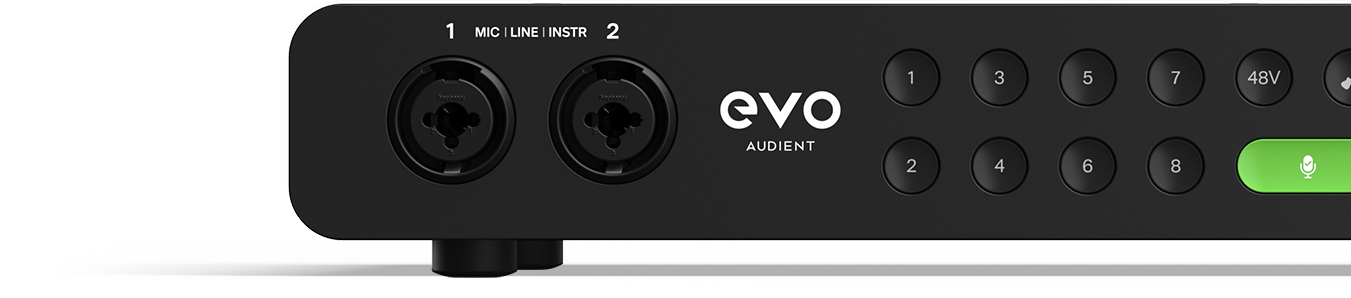

The EVO Mic Preamp



Get studio quality recordings



Level up your audio performance with eight sonically stunning EVO Preamps. Backed by 25 years of engineering experience, our analogue mic preamp has been designed to deliver the most accurate, clean, and true to source version of your audio, no matter what you’re recording.





Our EVO Preamp technology not only has all the sonic advantages of an analogue mic preamp, but combines it with digitally controlled precision, giving you the ability to set your gain with pin-point accuracy, right down to the decibel.

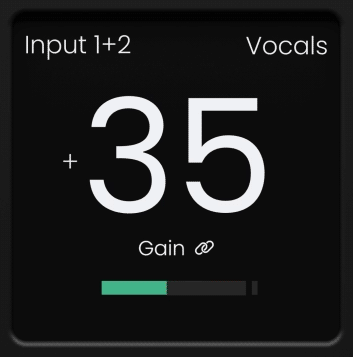

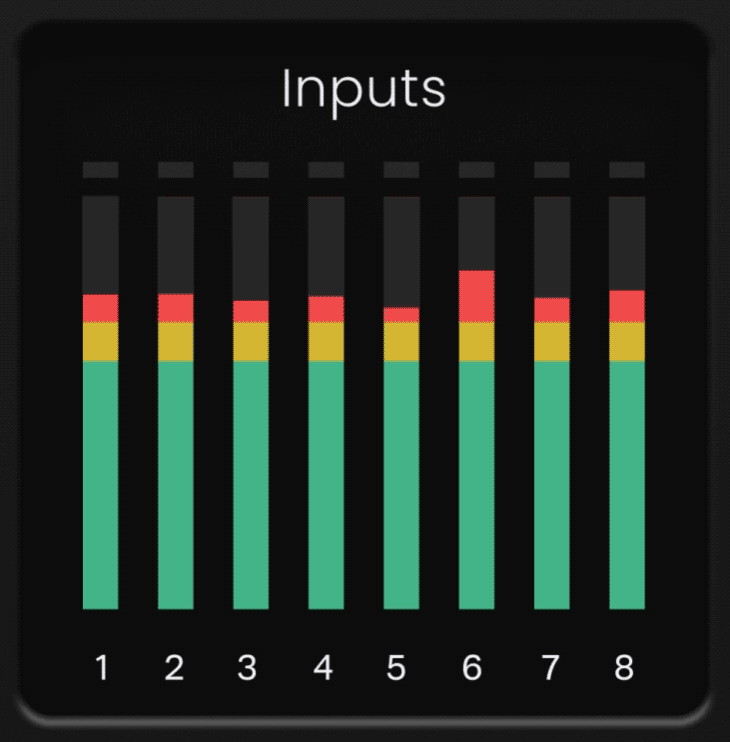

Real time visual feedback on-screen	Perfectly match the level of stereo pairs

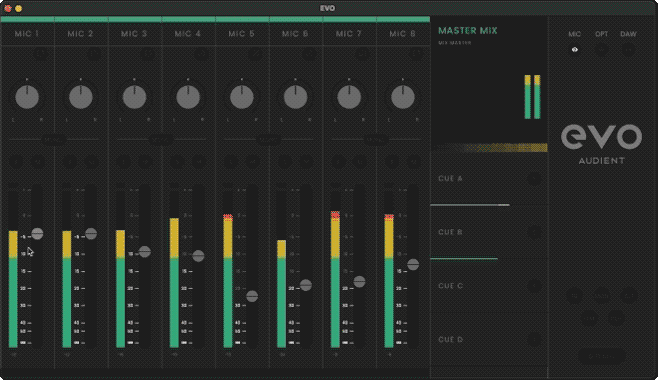

	Control with software



Advanced Converter Technology

Clearer, sharper clarity



Providing a MASSIVE 121dB of dynamic range, EVO 16’s high performance converter technology makes sure you hear your audio accurately, helping you make creative decisions confidently, identify issues and improve your recording and mixing game.

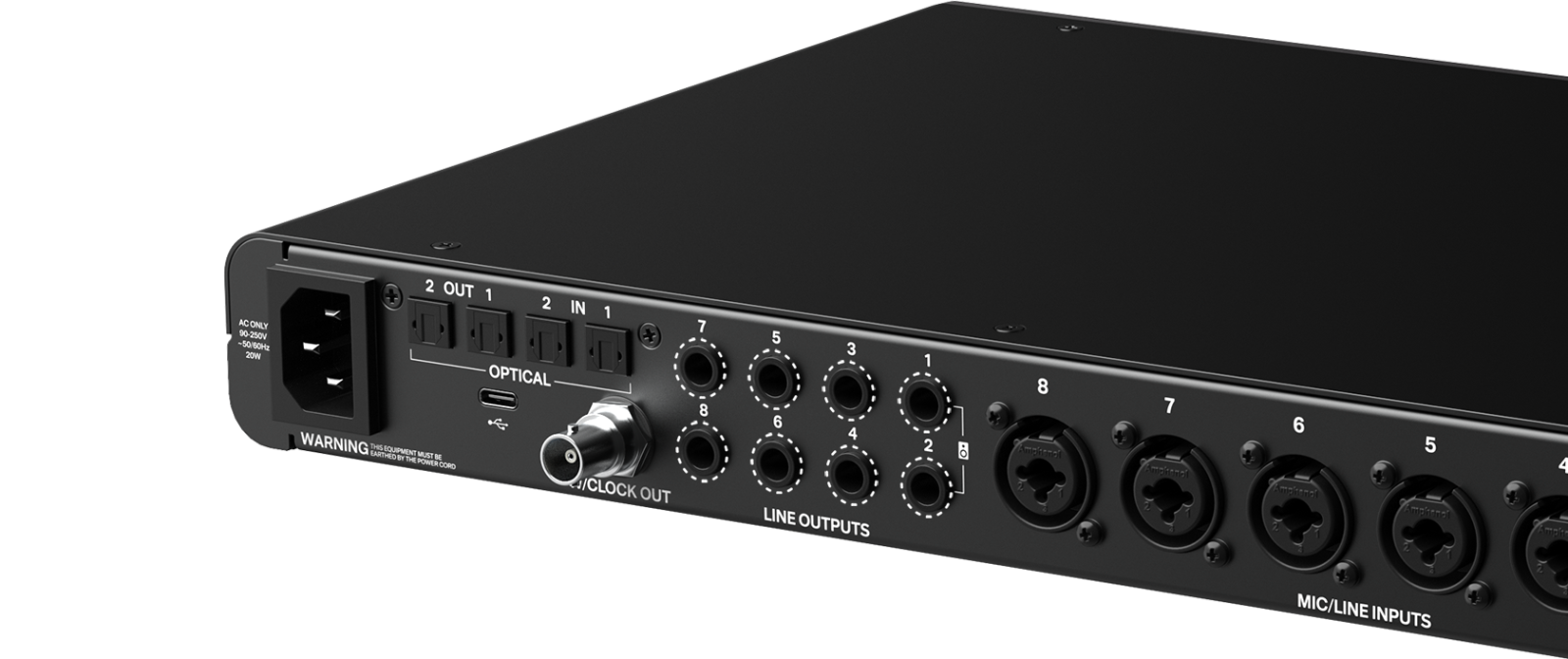

Line Outputs



Pick The Best Route



Connect and listen to your mixes through multiple sets of speakers with EVO 16’s eight line outputs. Alternatively use the extra line outputs to send audio to external outboard gear, such as compressors or FX units, or to headphone amps for distribution to your artists.

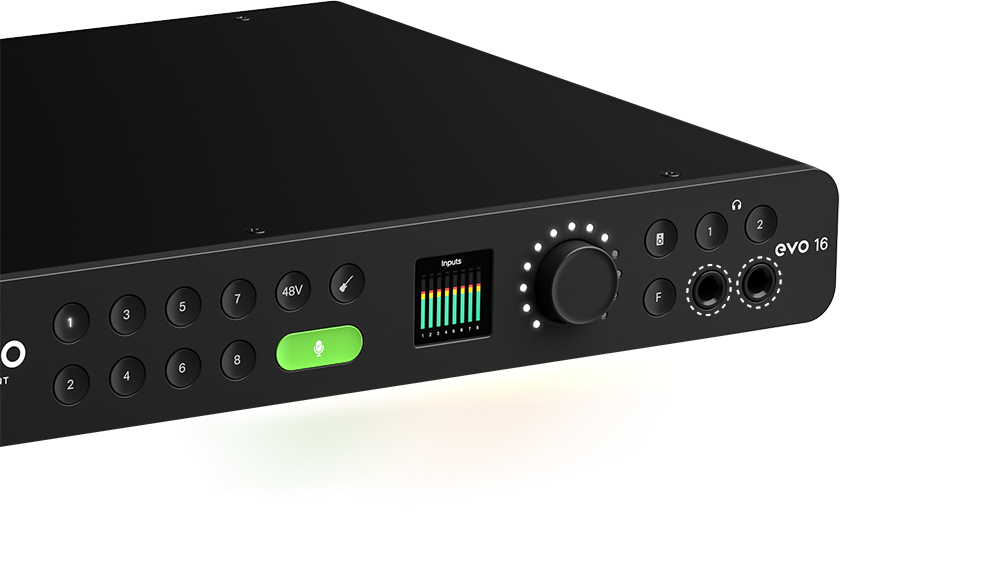

Headphone Outputs



Clarity where you need it most



Drive even the most demanding headphones with EVO 16’s two dedicated headphone amps. Easily power headphones up to 600 Ohms all while experiencing detailed monitoring and playback as well as plenty of volume.

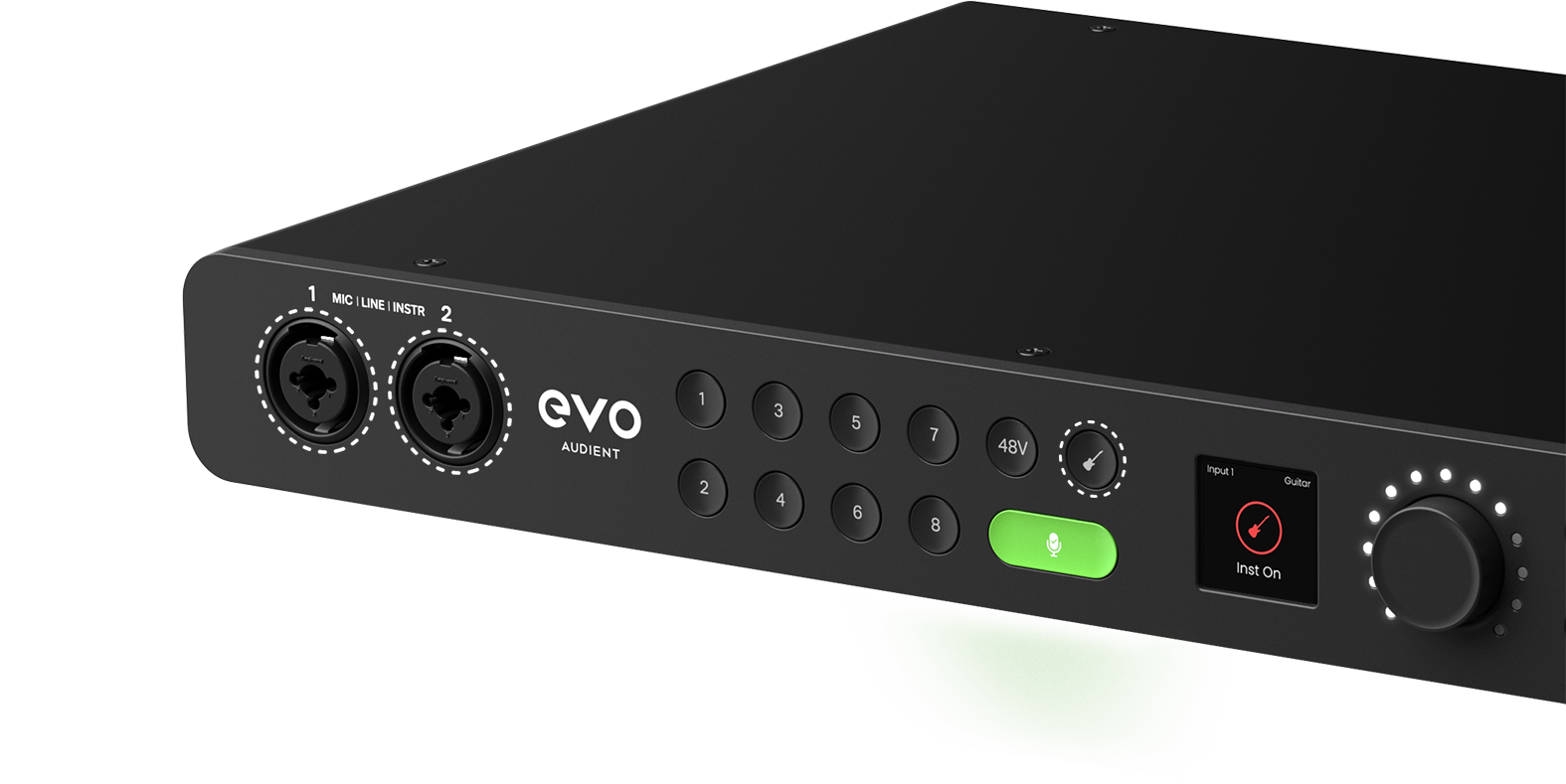

2 x Instrument Inputs



Classic tone, modern sound



To build a monster guitar sound you need the right foundation. Our harmonically rich JFET instrument input circuit is designed to replicate the input stage of a classic valve amplifier, providing an ideal sonic foundation before you hit your guitar sims.









Microphone Preamplifier
Mic Gain Range:	58dB
Line Gain Range:	58dB (-10dB pad)
Phantom Power:	48v +/-4v @ 10mA/Channel
Mic EIN:	<-127.5dBu
CMRR:	>80dB @ 1kHz
Maximum Input Level:	+16dBu
Input Impedance (Mic):	>3kΩ Balanced
Input Impedance (Line):	>10kΩ Balanced
Frequency Response:	+/-0.5dB 10Hz to 40kHz
Crosstalk:	<-105dBu @ 1kHz <-103 @ 10kHz
THD+N @ 0dBu (1kHz):	<0.0015%
SNR:	100dB
XLR:	Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack:	IP (Hot), RING (Cold) & SLEEVE (Shield)
D.I.
D.I Gain Range:	58 dB
Maximum Input Level:	+10dBu
Input Impedance:	500k
Frequency Response	+/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz):	<0.1%
SNR:	100dB
1/4” Jack:	TIP (Hot) & SLEEVE (Shield)
ADC Inputs
Digital Reference Level:	0dBFS = +10.5dBu
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	-125dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):	<0.001%
Dynamic Range:	112.5dB A-Weighted
DAC Outputs
Maximum Output Level:	12dBu
Digital Reference Level:	0dBFS = +12dBu
Output Impedance:	<50Ω
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	<-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):	<0.001%
Dynamic Range:	121dB A-weighted
1/4” Jack:	TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Output
Max Output Level:	11.25dBu
Output Impedance:	<50Ω
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	-108dBu @ 1kHz
THD+N @ -1dBFS (1kHz):	<0.001%
Dynamic Range:	118dB A-weighted
Max Level Into 30ohms:	+8.5 dBu, 0.00094% THD+N, 1.66Vpk Power: 86mW
Max Level Into 60ohms:	10 dBu, 0.00079% THD+N, 2.55Vpk Power: 104mW
Max Level Into 600ohms:	11.2 dBu, 0.00057%THD+N, 3.83Vpk Power: 24mW
1/4” Jack:	TIP (Left), RING (Right) & SLEEVE (Shield)
Dimensions (Unit)	355mm (w) x 255mm (d) x 53mm (h)
