- One KVM switch allows for easy control and fast switch between two USB-C devices from a single set of keyboard, mouse, and monitor
- Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4)
- Supports Video DynaSync™ – ensures that windows opened on an extended desktop will not revert to their default configurations on the main display
- Supports two USB and one DisplayPort downstream ports for USB peripheral sharing

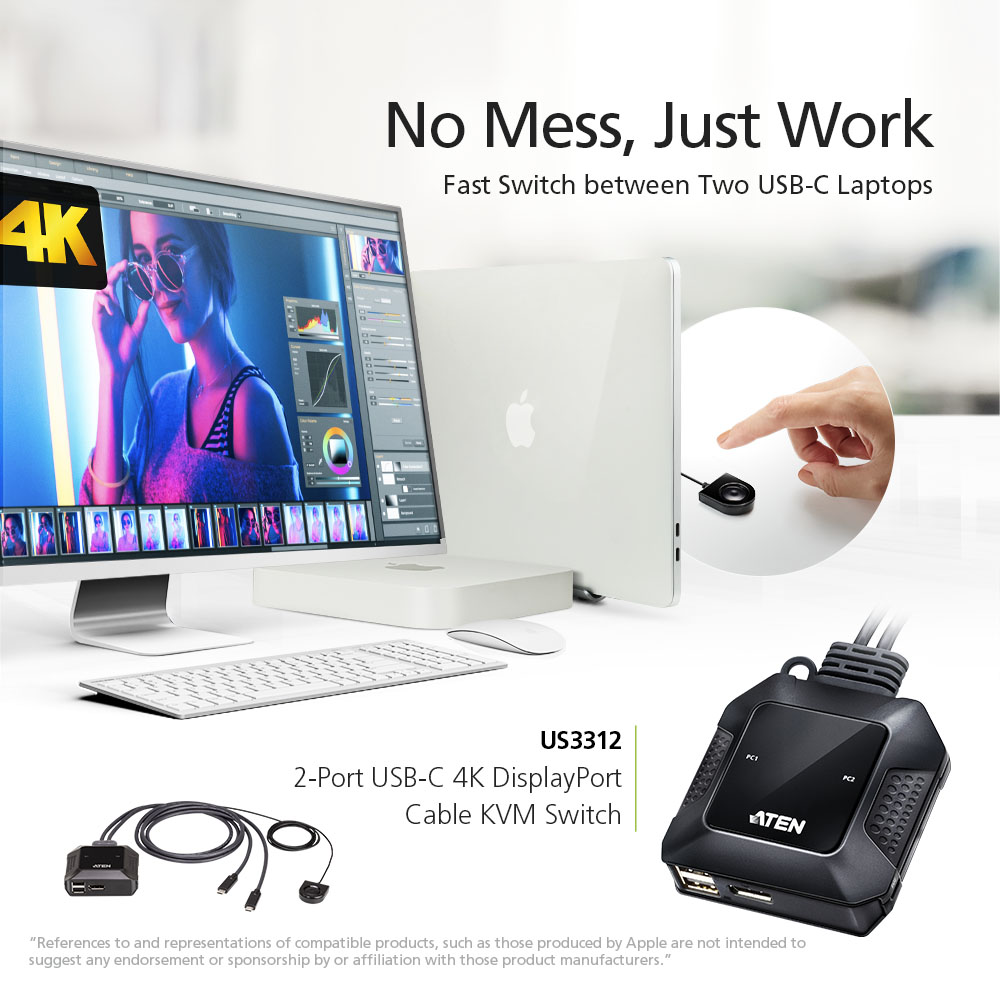

The compact US3312 is ideal for meeting hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline the most complex workflows by simply pushing a button to quickly switch in 3 seconds between your tasks on two USB-C mobile devices, such as a laptop, tablet, MacBook, iPad, and even Mac mini, from a DisplayPort and USB console. The US3312 magically de-clutters your desktop workspace for a neat and space-efficient new look, and brings in vivid 4K viewing quality to enhance your work performance.
Extreme Space Efficient Desktop Setup
The compact US3312 enables plug-n-play USB-C connection to two mobile devices, such as a laptop, Mac mini, and a tablet without going through a docking station, which is a useful, budget-friendly option to expand your desktop workspace in a neat and tidy way. You can even hook US3312 under a desk for a cable-free and clean desktop.
Exceptional AV Performance in Vivid 4K
The US3312 empowers your desktop operations with visual enhancement thanks to 4K DCI compliance.
Smooth Cross-Platform Integration with 3-sec. Fast Switching
The US3312 enables the integration of different computer systems (Windows, MacOS, and Linux) that are accessible over just one KVM console. With exclusive ATEN technology, switching between two systems takes just three seconds, making your workflow more efficient than ever before.
Specifications:
Computer Connections | 2 |
Port Selection | Remote Port Selector |
Connectors | |
Console Ports | 1 x DisplayPort Female 2 x USB Type A Female |
KVM (Computer) Ports | CPU1: 1 x USB Type C Male CPU2: 1 x USB Type C Male |
LEDs | |
KVM Port (On Line /Selected) | 2 (White) |
Cable Length | |
KVM | 2 x 1.2 m |
Remote Port Selector | 1.8 m |
Emulation | |
Keyboard / Mouse | N/A |
Video | 4096 x 2160 @ 60Hz |
System Requirements | Windows USB-C enabled computer: - Windows® 10 (32-bit / 64-bit) and above - With Intel 7th-Generation Core Processor (Kaby -Lake with HD 6XX series integrated graphics) and above. - For video output to work through a USB-C port, it must support DP Alt Mode. - Thunderbolt™ 3 Compatible Mac USB-C enabled computer: - MacBook 2015 and later - MacBook Pro 2016 and later - Mac OS X 10.12 and above USB-C enabled Smartphone / Tablet: - Android 8.0 and later / iPadOS 13.1 - For video output to work through a USB-C port, it must support DP Alt Mode. |
Power Consumption | DC5V:0.74W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | |
Operating Temperature | 0 - 50°C |
Storage Temperature | -20 - 60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.19 kg ( 0.42 lb ) |
Dimensions (L x W x H) | 8.34 x 8.42 x 2.99 cm (3.28 x 3.31 x 1.18 in.) |
