ATEN US3311
Икона нов продукт
НазадATEN US3311ATEN US3311ATEN US3311ATEN US3311Напред

KVM суич ATEN US3311, от 4x USB A(ж) към 3x USB C(ж), 1x DisplayPort(ж), 8K 7680x4320@144Hz, сив

id 286125 Код: ACKVMATENUS3311
372.72 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

ATEN US3311



  • 2-in-1 solution for 2 USB-C host devices – combines a KVM switch and a multiport dock with 4 x USB 3.2 Gen 1 Type-A ports, 1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input
  • Supports DP 1.4 Alt Mode
  • Superior video quality – up to 8K 7680 × 4320, 4K 3840 x 2160 @ 144 / 120 / 60 Hz*
  • Supports PD 3.0 up to 100 W USB PD charging – allows your laptop to obtain the maximum power via your USB-C power adapter

    Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz.

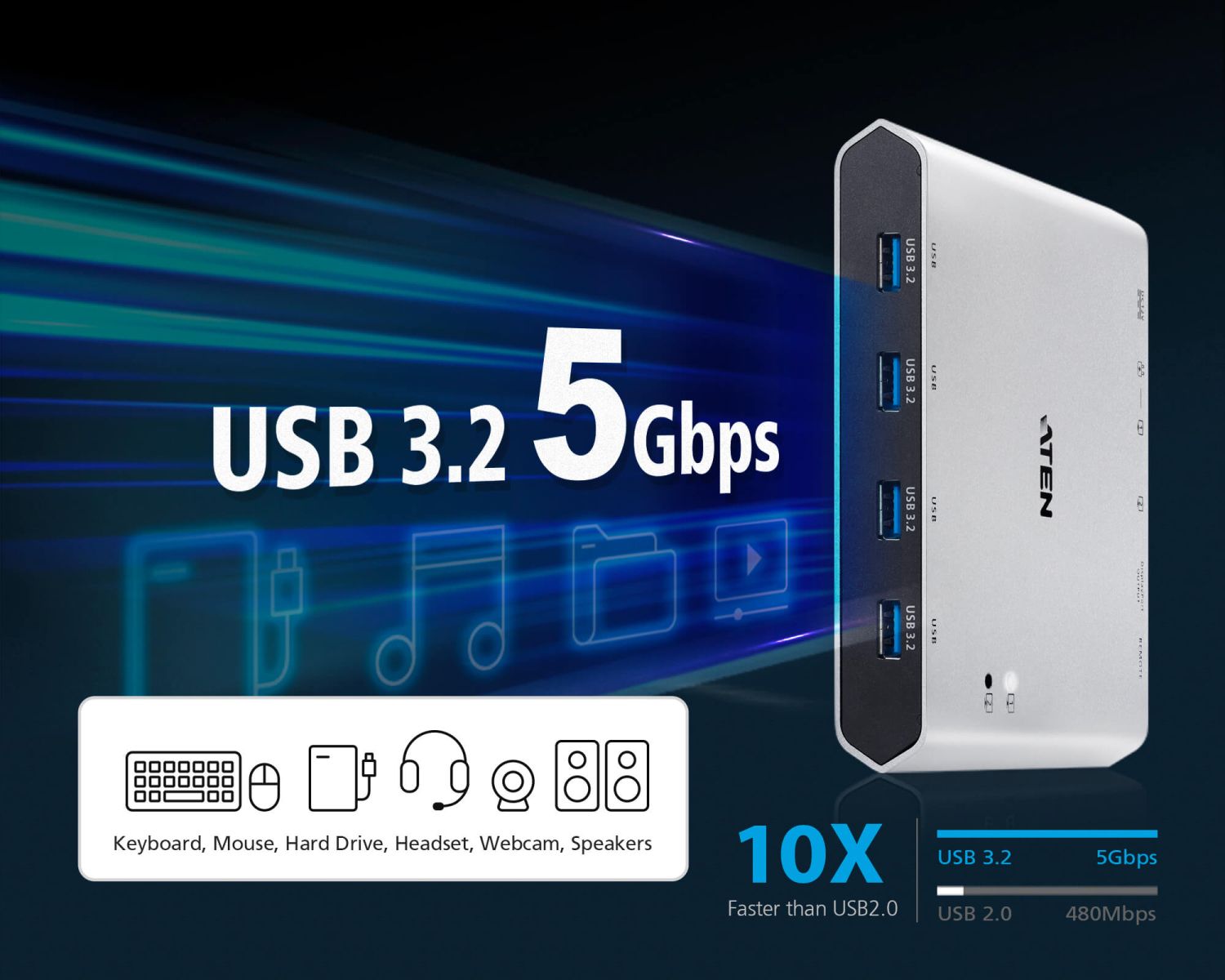

Superb 4-Port SuperSpeed Expansion

With 4 USB 3.2 gen1 ports, transfer data at up to 5Gb/s. Charge and power external devices, no need for an extra USB hub.







Support for Apple iPhone 15 Pro Series / MacBook Pro and Air Series / Mac Series / Samsung DeX

Designed to work with Apple iPhone 15 Pro series, MacBook Pro/Air series (including latest M1/M2 chip models) with built-in USB-C or Thunderbolt 3/4 connectivity, all Mac series and Samsung DeX devices, it offers support for USB Power Delivery 3.0, allowing laptops to charge at up to 100W (requires an extra USB-C Power Adapter).

*Note: Please refer to User Manual for the list of supported MacBook models.





Exceptional AV Performance in Vivid 8K & 4K@144/120Hz

ATEN Duo Flex 2-port USB-C KVM Switch supports up to 8K and 4K@144/120Hz, and also works with 21:9 Ultrawide and 32:9 super Ultrawide monitors for graphics-intensive work.

* Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz.





45 Years of Quality Assurance

As the leading brand in KVM switches, ATEN has entered its 45th year this year. Exquisite manufacturing processes and stable quality are ATEN's commitment to consumers. Utilizing industrial-grade rigorous manufacturing techniques and software design, the ATEN Duo Flex is capable of effortlessly handling any consumer-level application.





Specifications:

Computer Connections2
Connectors
ComputerCPU1:
1 x USB Type C Female
CPU2:
1 x USB Type C Female
Device4 x USB 3.2 Gen 1 Type-A Female
Video Output1 x DisplayPort Female
Power1 x DC jack for 12V 3.3A
1 x USB-C Female*
Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output
Port 2 : Supports max. 5V, 3A output

*Supports maximum 100W USB-C PD power adapter input.
Port Selection
InputPort Switch Button
Video Resolution3840 x 2160@60
3840 x 2160@120
3840 x 2160@144
7680 x 4320

Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz.
System RequirementsWindows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 and later, USB-C enabled computer

Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode**
**Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3311's user manual.

iPadOS 13.1 and later, iPad Pro (USB-C)*
*Support video output in mirror mode

iOS 17.1 and later*
*Compatible with the Apple iPhone 15 Pro series.
Power
Maximum Input Power RatingDC12V, 3.3A
Power ConsumptionDC12V:1.68W:117BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
LEDs
Selected2 (White)
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingAluminum
Weight0.35 kg ( 0.77 lb )
Dimensions (L x W x H)14.30 x 11.90 x 2.38 cm
(5.63 x 4.69 x 0.94 in.)




    Виж още KVM продукти Aten
    Виж всички KVM продукти в категорията
    Технически характеристики
    Тип:  KVM Switch
    Брой портове (вход):  4
    Вид портове (вход):  USB А(ж)
    Брой портове (изход):  4
    Вид портове (изход):  Display Port(ж)
