KVM суич ATEN US3310, от 2x USB A(ж) към 3x USB C(ж), 1x HDMI(ж), 3840x2160@30hz, сив

id 286134 Код: ACKVMATENUS3310
279.44 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

ATEN US3310



  • Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals
  • Compatible with Apple M1 chip devices; provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter is needed)
  • Supports 4K resolutions – up to 3840 x 2160 @ 30Hz
  • Video DynaSync – allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching





Expand What Your Mobile Device Can Do

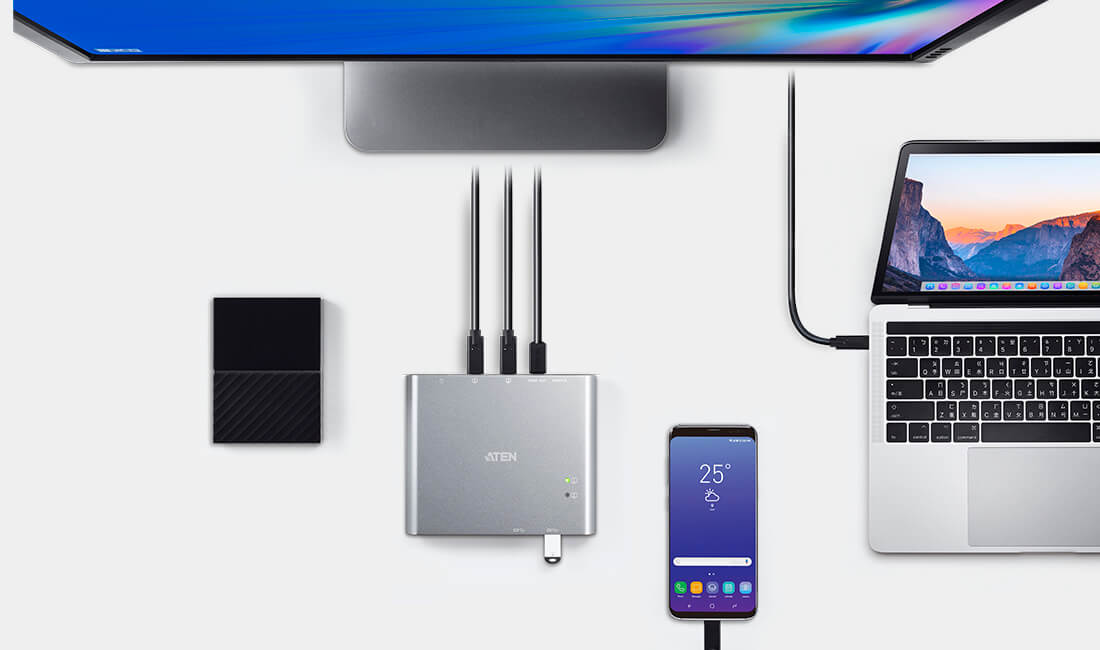

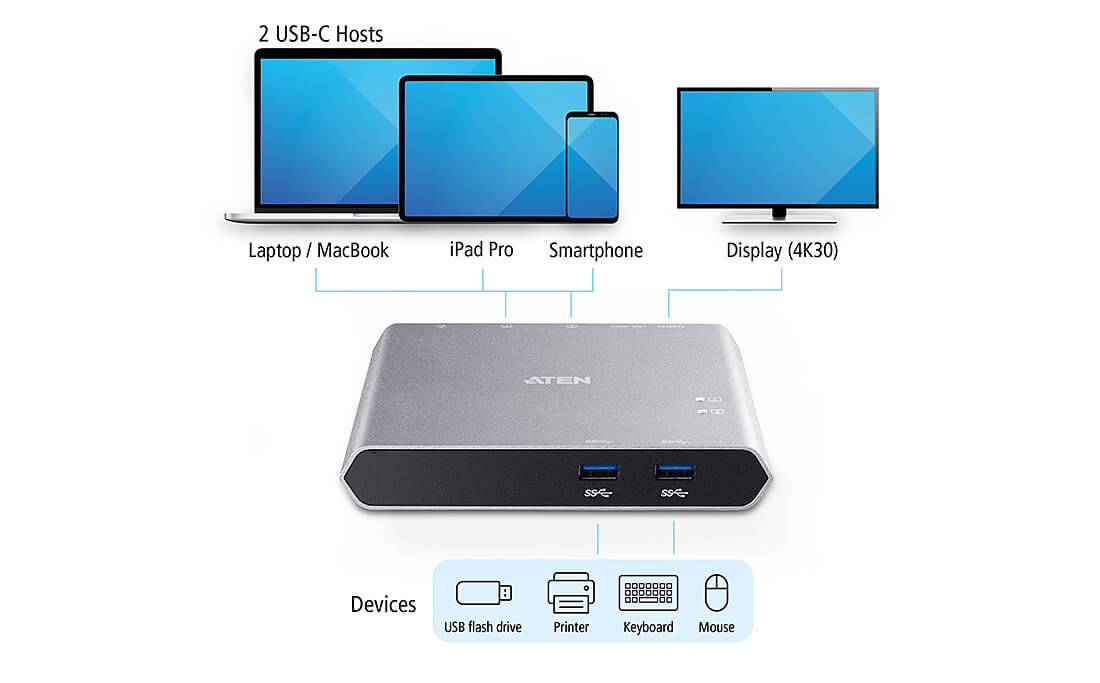

No more dealing with plugging and unplugging. Dock your USB-C smartphone, iPad Pro , and laptop, or two USB-C laptops, to US3310 and share a display and peripherals.* Use only one set of display, keyboard, and mouse to seamlessly control two systems and save desk space. Put the remote port selector in the most convenient place or even hide it under your desk for quick switching.

*Compatible with smartphones launched in 2018 or later that feature video output (DP Alt Mode) over USB-C.





2-sec Speedy Switching to Stay Efficient

There’s no time to waste on switching lag. Thanks to exclusive ATEN technology that eliminates lag and resolution issues, switching between two systems only take two seconds, making your workflow more efficient. Your HDMI connection will stay active without disrupting the layout when switching. The USB connection works as a USB hub, which means you can keep all the functionality of a keyboard and mouse, such as media keys or extra mouse buttons.

Superior Video Quality and Ultra-fast USB 3.2 Data Transfer Speed

Support maximum resolution up to 4K@30Hz for 4K TVs or ultra-wide and gaming monitors. USB 3.2 provides data transfer speed up to 5Gb/s allowing you to share external storage devices for swapping data between two systems quickly and easily.





Computer Connections2
Connectors
ComputerUSB 3.2 Gen 1 Type-C Port 1 (Laptop)
USB 3.2 Gen 1 Type-C Port 2 (Android : Samsung Dex or Huawei Desktop mode)
Device2 x USB 3.2 Gen 1 Type-A Female
Video Output1 x HDMI Female
Power1 x USB-C DC-in Female*

Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output*
Port 2 : Supports max. 5V, 2A output

*Supports maximum 100W USB-C PD power adapter input.
*For device charging, a Limited Power Source (LPS) certified USB-C PD Power Adapter over 65 Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A.
*The first 15W will supply the US3310, the next 10W will supply USB-C device connected to Port 2, and the balance power will supply USB-C device connected to Port 1.
Port Selection
InputRemote port selector
Video ResolutionUp to 3840 x 2160@30hz
System RequirementsWindows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 and above, USB-C enabled computer

Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode**
**Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3310's user manual.

iOS 12.1 and above, iPad Pro 3rd generation (2018)***
*** For better HID experience, iPad OS 13 and above is recommended.
Power ConsumptionDC5V:1.24W:406BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
LEDs
Selected2 (White)
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingAluminum
Weight0.33 kg ( 0.73 lb )
Dimensions (L x W x H)14.30 x 11.90 x 2.38 cm
(5.63 x 4.69 x 0.94 in.)




    Виж още KVM продукти Aten
    Виж всички KVM продукти в категорията
    Технически характеристики
    Тип:  KVM Switch
    Брой портове (вход):  2
    Вид портове (вход):  USB А(ж)
    Брой портове (изход):  4
    Вид портове (изход):  HDMI(ж)
