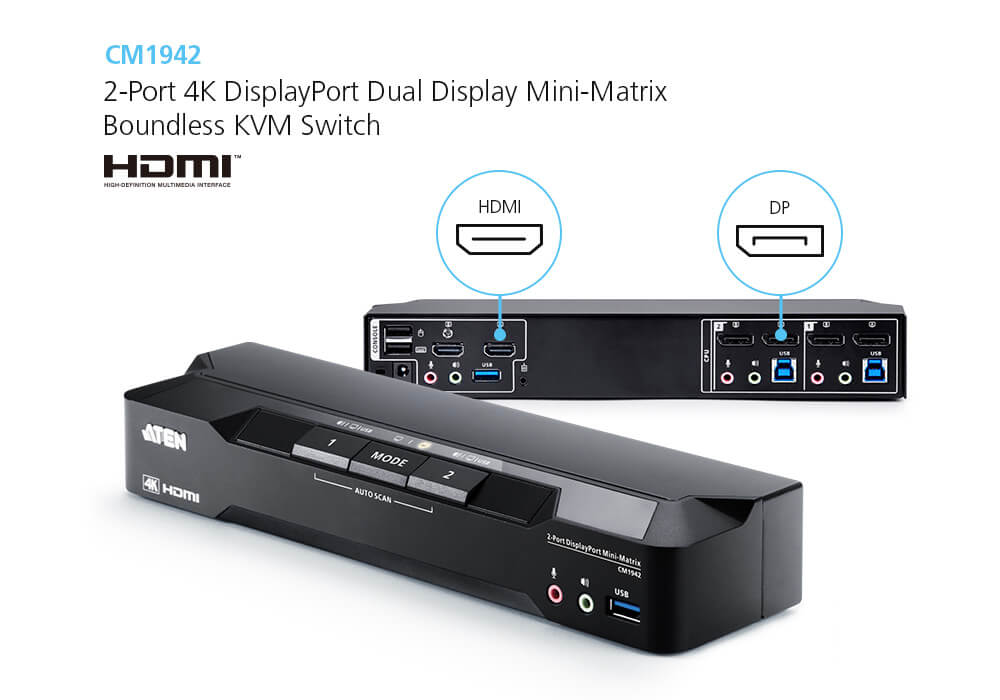

Aten CM1942
- One dual-view USB / HDMI console controls two DisplayPort computers and two USB 3.1 Gen 1 peripherals
- Two PC Operation Modes:
- Single PC Mode – allows content of the PC with current KVM focus to be displayed over both monitors
- Dual PC Mode – allows content of two PCs to be displayed separately on two monitors regardless of the KVM focus - Supports superior video quality – resolutions up to 4K DCI (4096 x 2160 @ 60 Hz)
- Boundless Switching – allows the mouse cursor to move across screen borders for quick switching between video sources
With hybrid working evolving to become the standard in the new normal, the key to tackling challenges is to elevate multitasking abilities. When it comes to performing multiple tasks simultaneously, ergonomics is what assures productivity. And when communicating with dispersed remote teams, effective collaboration tools are crucial. Re-imagine your workspace with the CM1942 – a future-proof mini matrix KVM switch featuring flexible and boundless KVM switching between two computers/displays to maximize workstation efficiency. Incorporating speedy peripheral data sharing, audio mixer, multi-screen efficiency and hotdesking agility, the CM1942 promotes a productive yet better normal with streamlined desktop workflows for both desktop tasks and collaborative work.
Exceptional 4K Audiovisual Performance
The CM1942 empowers your desktop operations with connectivity to two DisplayPort computers and two HDMI displays, providing a remarkable user experience with exceptional 4K audiovisual enhancement.

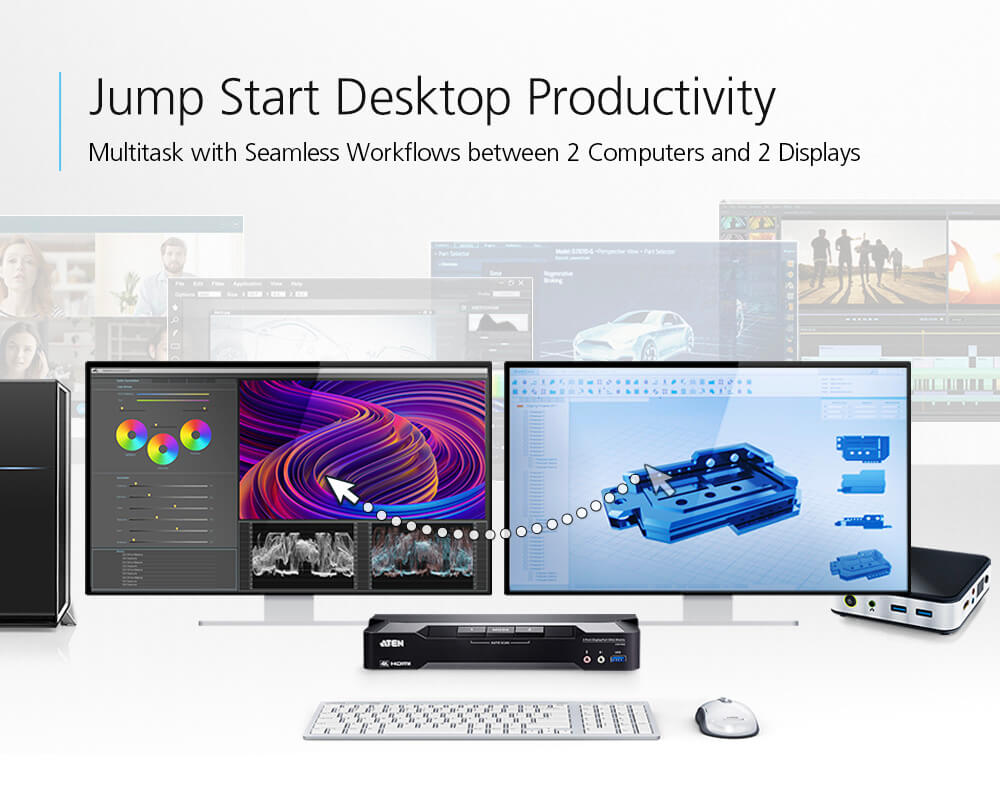

Dual-Display Setting to Facilitate Matrix KVM Switching
The CM1942's dual-display setting simplifies KVM switching in a 2x2 computer/monitor matrix. The main and extended desktops of either computer with the current KVM focus can be displayed over two monitors. Likewise, each computer’s content can be displayed on either monitor separately in a crossover configuration as well, regardless of the KVM focus.
Specifications:
Computer Connections | 2 |
Port Selection | Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, Remote Port Selector |
Connectors | |
Console Ports | 2 x USB Type A Female 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) |
KVM (Computer) Ports | 2 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) |
Remote Port Selector | 1 x 2.5mm Audio Jack Female |
Power | 1 x DC Jack |
USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) |
Switches | |
Selected | 3 x Pushbutton |
LEDs | |
Audio | 2 (Green) |
KVM | 2 (Orange) |
USB | 2 (Green) |
Mode of Operation | 2 (Orange) |
Emulation | |
Keyboard / Mouse | USB |
Video | 4096 x 2160 @ 60Hz |
Scan Interval | 1-99 Seconds (Default: 5 sec.) |
Power Consumption | DC12V:11.58W:97BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | |
Operating Temperature | 0-40°C |
Storage Temperature | -20-60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.64 kg ( 1.41 lb ) |
Dimensions (L x W x H) | 26.00 x 7.18 x 4.25 cm (10.24 x 2.83 x 1.67 in.) |
