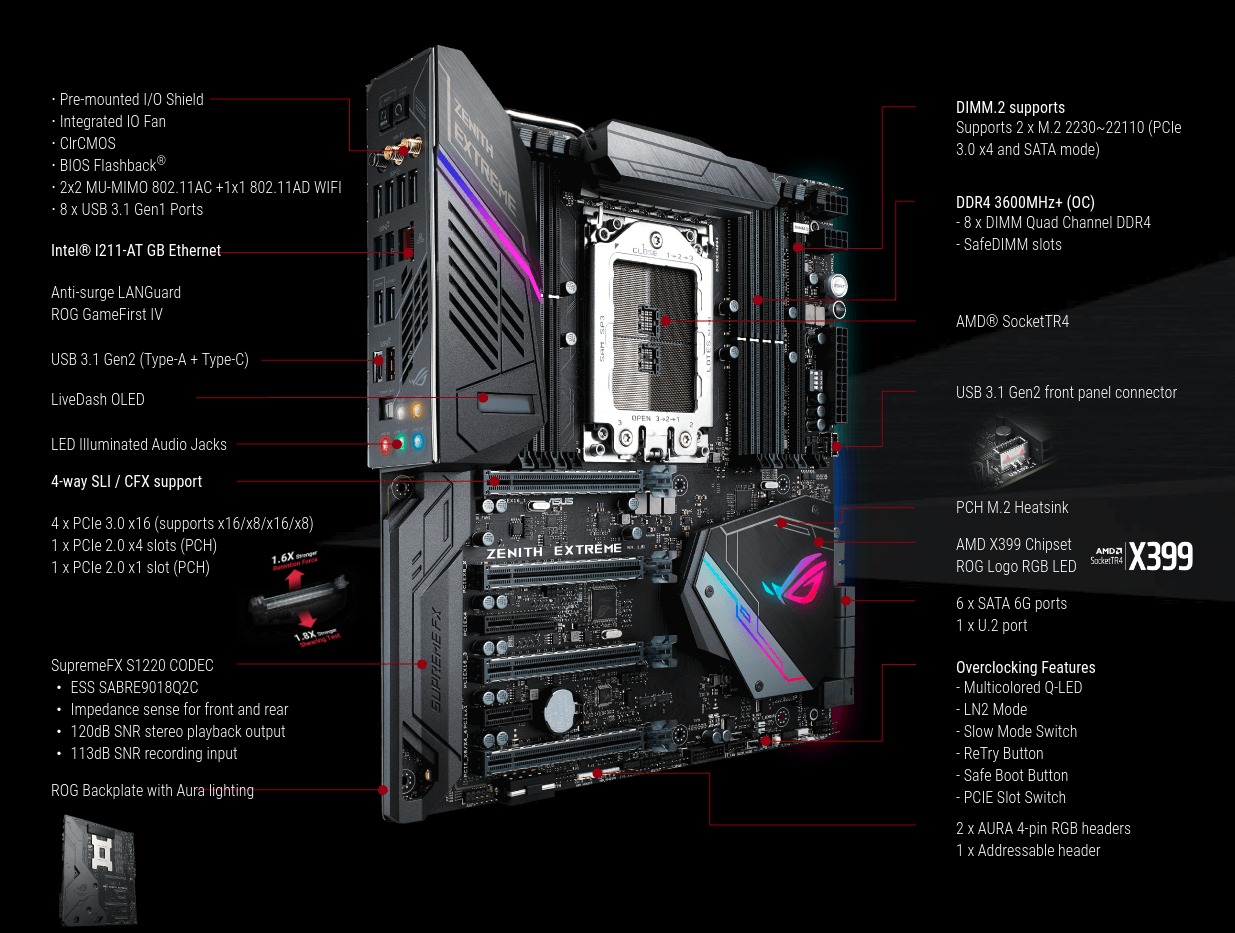

Дънна платка Asus ROG ZENITH EXTREME, X399, TR4, DDR4, PCI-E(CFX & Sli), 6 x SATA 6Gb/s, 3x M.2, 1x U.2, USB 3.1 Gen 2 Type(C), Wi-Fi, Bluetooth, E-ATX

AMD X399 EATX Gaming Motherboard with M.2 heatsink, Aura Sync RGB LED, 802.11ad Wi-Fi, DDR4 3600MHz, triple M.2, 10G Lan card, U.2 and USB 3.1 Gen 2

• Ready for 1st and 2nd Gen AMD Ryzen™ Threadripper™ processor series

• Onboard M.2 Heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.

• Synchronize RGB lighting: With a vast portfolio of Aura Sync capable PC gear – now with support for addressable light strips

• ROG DIMM.2: Dual M.2 expansion card allows use of fans to prevent throttling

• LiveDash OLED : Customizable panel displays vital system stats or your own logo

• Best gaming networking: Intel Gigabit Ethernet, 802.11ad Wi-Fi, LANGuard and GameFirst technologies

• Gaming audio: SupremeFX S1220 teamed with Sonic Studio III, cast an aural landscape that draws you deeper into the action.

• 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig

• Best gaming protection: SafeSlot, and carefully-selected premium components for maximum durability

​

Specifications

CPU
AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors
Supports CPU up to 16 cores

Chipset
AMD X399

Memory
AMD Ryzen™ Threadripper™ Processors
8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
Quad Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology

Expansion Slots
AMD Ryzen™ Threadripper™ Processors
4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) *1
AMD X399 chipset
1 x PCIe 2.0 x4
1 x PCIe 2.0 x1

Storage
AMD Ryzen™ Threadripper™ Processors :
2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x U.2 port*3
AMD X399 chipset :
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst IV

Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad*4
Supports MU-MIMO
Supports dual band frequency 2.4/5 GHz+ 60GHz
Up to 4600Mbps transfer speed

Bluetooth
Bluetooth V4.1

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output 113 dB SNR recording input
- ESS®SABRE9018Q2C DAC/AMP
- Supports up to 32-Bit/192kHz playback *5
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III

USB Ports
AMD Ryzen™ Threadripper™ Processors :
8 x USB 3.1 Gen 1 port(s) (8 at back panel, blue)
AMD X399 chipset :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
AMD X399 chipset :
2 x USB 2.0 port(s) (Type-A + USB Type-CTM, 2 at mid-board)
AMD X399 chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM)

ROG Exclusive Features
Clear CMOS button
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Pre-mounted I/O Shield
Overwolf
GameFirst IV
Extreme Engine Digi+ :
- IR3555 PoweIRstage®
- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- EZ Plug
KeyBot II
- One-click Overclocking
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- Tweakers' Paradise
- ROG SSD Secure Erase
ROG RAMDisk
Extreme Tweaker
USB BIOS Flashback®
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
TPU

Gamer's Guardian:
- SafeSlot
LiveDash OLED
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- AI Suite 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Back I/O Ports
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (black)USB Type-CTM,
1 x USB 3.1 Gen 2 (red)Type-A
8 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1)
5 x LED-illuminated audio jacks

Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x ReTry jumper
1 x Safe Boot jumper
1 x U.2 port
2 x Aura RGB Strip Headers
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x H_AMP fan connector
1 x W_PUMP+ connector
2 x 8-pin EATX 8 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Slow Mode switch(es)
2 x Thermal sensor connector(s)
1 x LN2 Mode header(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Reset button(s)
1 x LN2 Mode switch(es)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x U.2 connector*4
1 x Slow Mode jumper(s)1 x System panel connector
1 x PCIe x16 lane switch
2 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
1 x PCIe x16 Lane Switch
1 x 9 pin Monoblock sensor

Accessories
User's manual
3 x SATA 6Gb/s cable(s)
1 x ASUS WiGig 802.11ad moving antenna *6
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x ROG VGA Holder
1 x ROG DIMM.2 Fan Stand Pack (s)
1 x ROG AREION 10G
1 x Fan Extension Card (3 x 4-pin fan out)
1 x Fan Extension card screw pack
1 x Fan Extension card cable
1 x SLI HB BRIDGE(2-WAY-L)
1 x ROG big sticker
1 x Q-Connector
1 x 10-in-1 ROG cable label
1 x M.2 screw kit (long screw and mount)
2 x M.2 screw kit (short screw and mount)
1 x DIMM.2 extension card with 2 x M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x ROG Logo Sticker(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
3 x Thermistor cable(s)
1 x USB drive with utilities and drivers
1 x ROG coaster(s)

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, WOL by PME, PXE

Operating System
Windows® 10 64-bit

Form Factor
Extended ATX Form Factor
12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )
